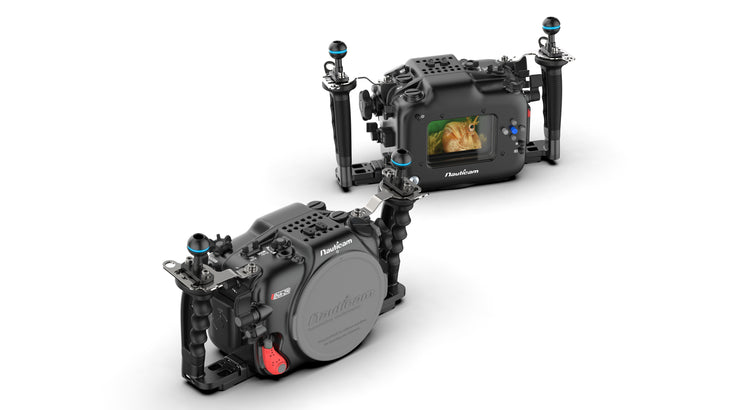

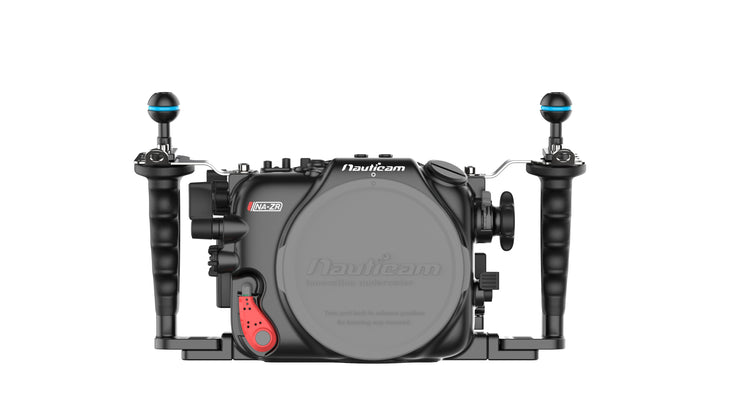

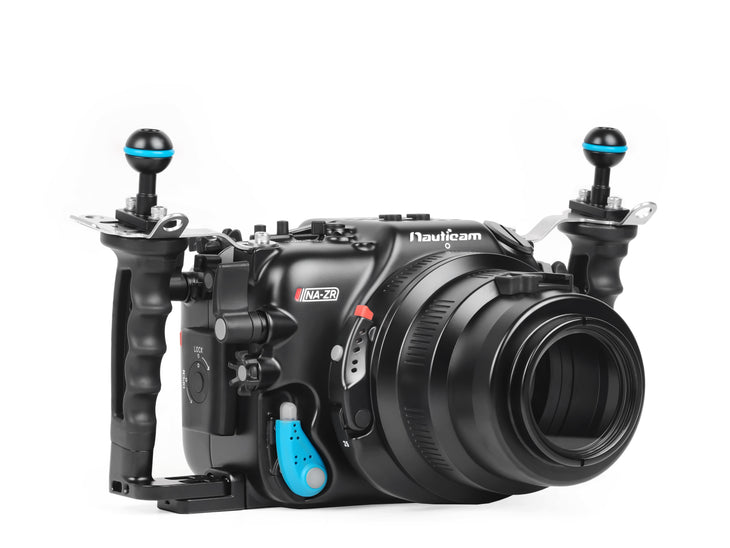

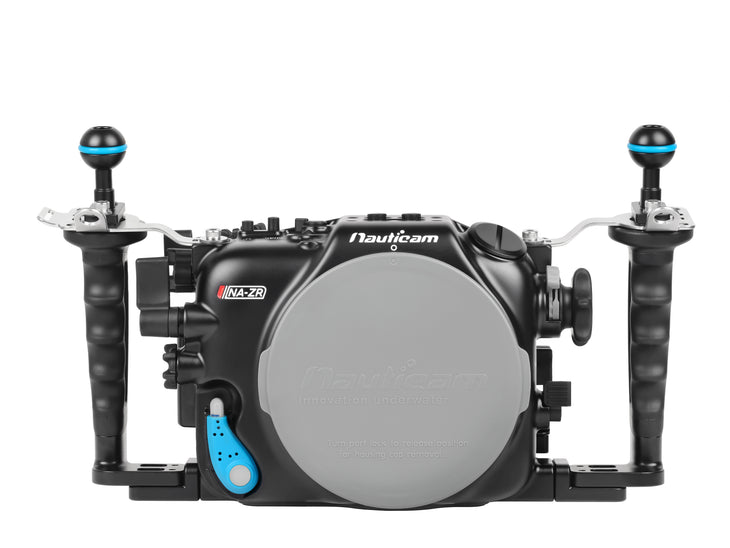

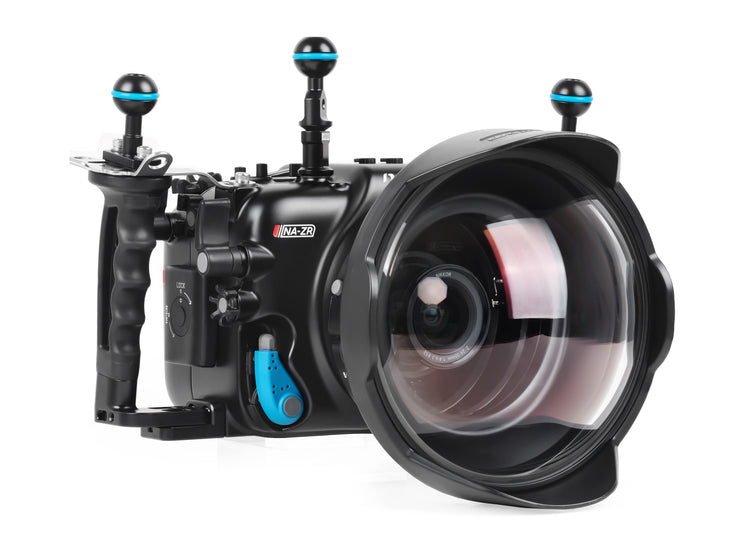

The Nauticam NA-ZR is a durable, aluminum underwater housing for the Nikon ZR cinema camera, featuring ergonomic handles with direct access to key controls (like AF-ON, REC, ISO, exposure) for seamless operation, a robust N120 port system for Z-mount lenses, and integrated vacuum check/leak detection for watertight security, designed for both wide-angle and macro setups with support for Nauticam's optics.
Key Features

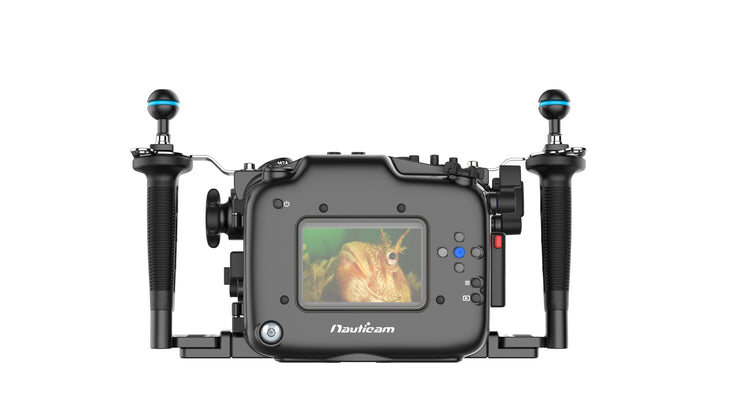

- Ergonomics & Controls: Well-positioned, glove-friendly levers and dials for essential functions (shutter, ISO, focus, exposure) without removing hands from handles, plus customizable buttons.
- Construction: Precision-machined from hard-anodized aluminum, built tough for demanding saltwater conditions, with double O-rings for sealing.

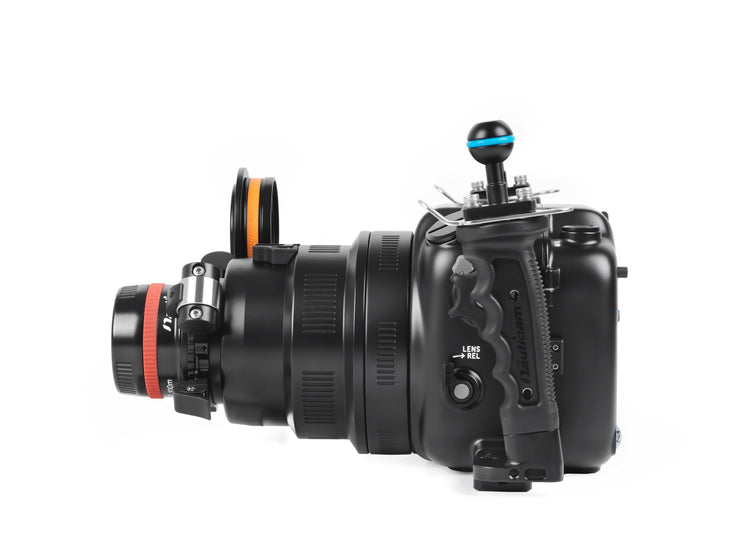

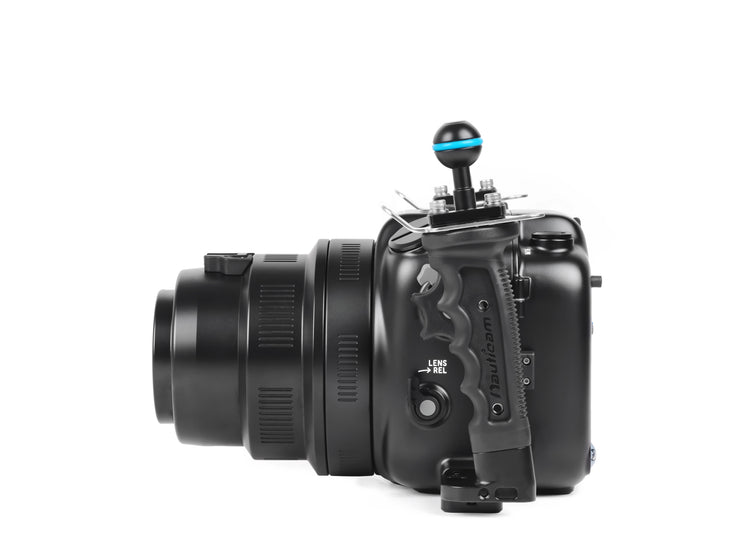

- Port System: Utilizes the Nauticam N120 port system, supporting Nikon Z-mount lenses (with adapters for F-mount) and a wide range of Nauticam wet optics (WWL, SMC, WACP) for versatile shooting.
- Vacuum & Leak Detection: Integrated system with LED indicators and moisture alarm provides pre-dive confidence and continuous monitoring of the housing's integrity.
- Versatility: Supports external strobes (fiber optic/electrical options) and external monitors via HDMI bulkheads (sold separately) for advanced setups.

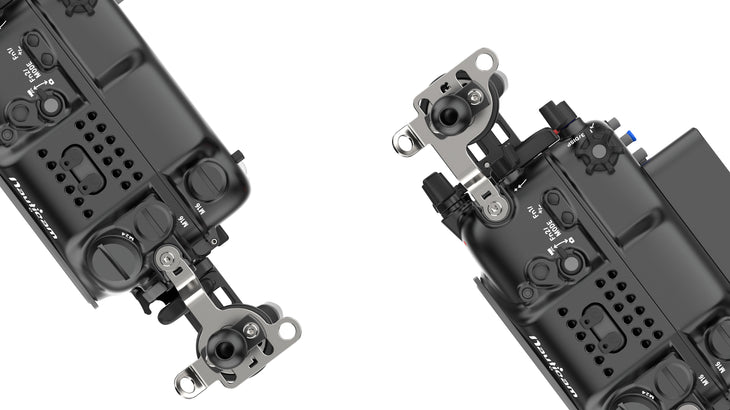

- Mounting: Built-in 1/4-20 mounting points and handles with balls for easy rigging of lights, arms, and other accessories.
- Lens Support: Works with Nikon Z-mount lenses and legacy F-mount lenses via an FTZ adapter, using dedicated zoom/focus gears
What's in the box:
- NA-ZR Housing
- Housing O-ring, lubricant, O-ring remover
- 2x Handles with mounting balls
- CR2032 Battery (for moisture alarm and vacuum system)
- Allen Wrench Set
- Housing carry bag and shoulder strap
Recommended Accessories
-
16701 Top Handle for E2/F/C70/BGH1/BMPCC/R5C
-
17959 Housing Mounting Ball with 1/4'' Screws
-
25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
-
25221 M10 strobe mounting ball for housing
-
25224 M10 strobe mounting ball for housing (with hole for using lanyard)
-
25228 M5 strobe mounting ball for housing
-
25625 M16 Vacuum Valve II (Pushbutton Release)
-
25413 27cm lanyard with 2 snap hooks
Surface USB-PD Power Bank
-
26325 USB-C Bulkhead with USB-C Connector
HDMI Output
Required accessories for HDMI 2.0 Cable System
-
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
-
25077
M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3 to use with Ninja V housing)

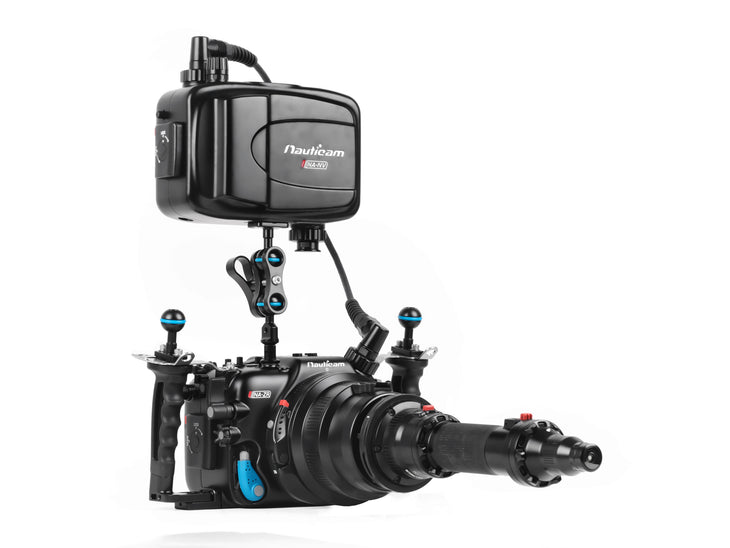

Monitor housing Options:
-
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
-
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
Required accessories for HDMI 1.4 Cable System
-
25033 Standard HDMI bulkhead with M16 thread
-
26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
-
25076
HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400(for internal connection from HDMI bulkhead to camera)
Monitor housing Options:
-
16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
-
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
-
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is Required for use with 16611 and 16612 monitor housing
-
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033,25038,25100
-
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
-
25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)

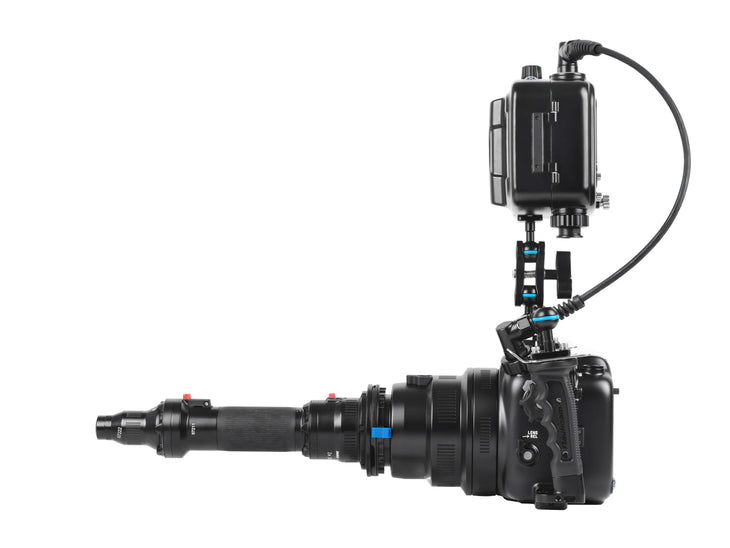

Monitor / Tripod Mounting System
-
17954 Tripod plate for NA-A7S and NA-GH4
-
17960 Universal Quadra-Pod Plate for Nauticam Housings
-
17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
-
25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)

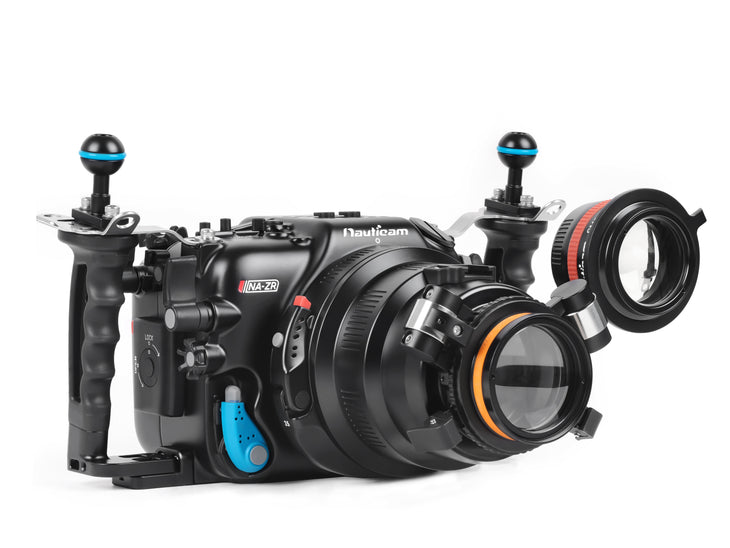

Wet Lenses
Macro
-
81202 Super Macro Convertor 2 (4x Magnification)
-
81203 Super Macro Convertor 3 (2.3x Magnification)
-
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
-
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
-
81501 Mid-range Focus Optimizer 1
-
81503 Mid-range Focus Optimizer 3

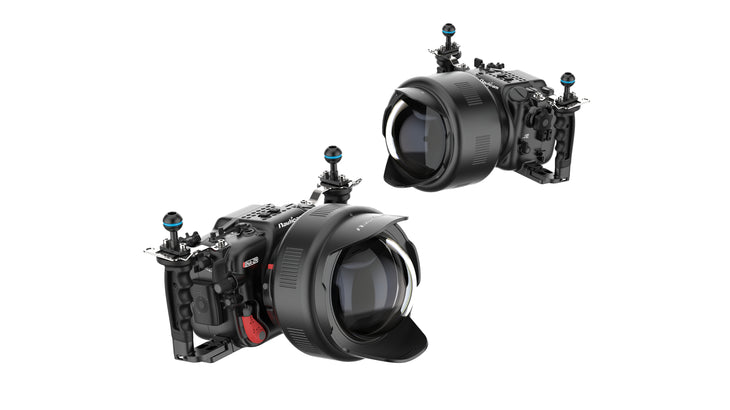

Wide-angle
-
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
-
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
-
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
-
85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
-
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
-
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wide-angle
-
87303 EMWL Set #3 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
-
87203 EMWL Focusing Unit #3 (for Canon FF 100mm & APS-C 60mm)
-
87211 EMWL 150mm Relay Lens
-
87212 EMWL Angled Relay Lens
-
87221 EMWL 60° Objective Lens
-
87222 EMWL 100° Objective Lens
-
87223 EMWL 130° Objective Lens
-
87226 EMWL 160° Objective Lens
