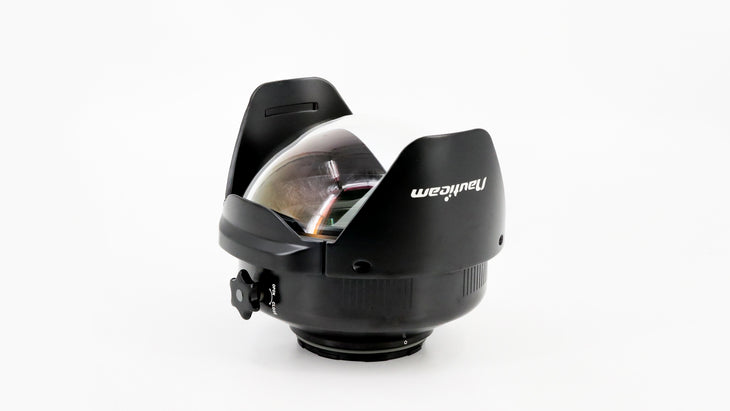

Nauticam WACP-2

0.57x Wide Angle Conversion Port 2

SKU # 85204

$8,698.00



140 Deg. FOV with Compatible 14mm Lenses (incl. float collar)

With even more ingenuity and engineering from Nauticam, than it's predecessor comes the WACP-2. Unlike the WACP-1, which was designed to work primarily with 28mm equivalent lenses, the WACP-2 is optimized to work with 14mm lenses to produce the first-ever rectilinear 140º field-of-view yet still maintains full zoom-through optical capability.


PRELIMINARY Technical Specifications

Outer Diameter x Length 280 x 213mm
Weight (in air) 7.06kg
Weight (in water) 0.85kg
Lens Construction 4 elements in 4 groups
Depth Rating 100m
Port Opening N120

Introducing Nauticam WACP-2

Nauticam's innovation shows with the WACP-2's ability to focus in air, making it an even more capable imaging tool with the ability to capture over-under images and even filming topside in wet environments.

The WACP-2's zoom-through capabilities means the underwater photographer or filmmaker can capture establishing, medium and close-up shots all with one lens while maintaining optimum optical and close-focus performance. Take for instance the Nikkor Z 14-30mm F/4 S lens which receives a field-of-view range of 81º to 140º with the WACP-2. This lens allows for more dynamic content on each and every dive without the need for a second camera.

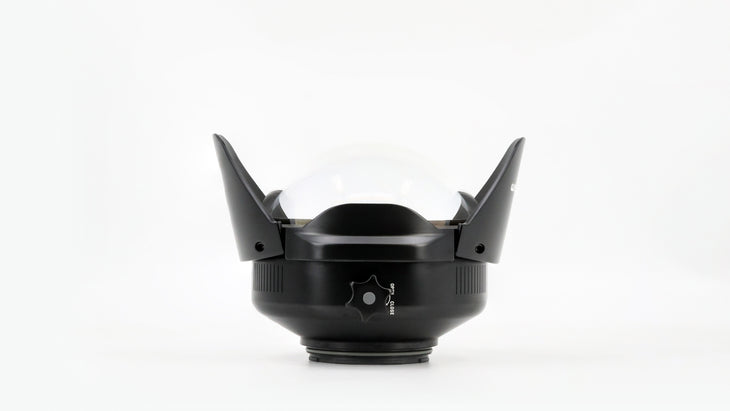

A radical new shade design allows for extending the shade out past the front element at longer focal lengths or during transport to further protect the dome while at wider focal lengths it cantilevers towards the outside to prevent vignette.

The WACP-2 is sure to impress the uncompromising underwater image-maker when looking for maximum optical quality, flexibility, and performance.



Resources

resources

COMPATIBILITY INFORMATION

Full Frame Canon EF Mount AOV Range
Canon EF 16-35mm f/2.8L III USM
128°-72°
Canon EF 16-35mm f/4L IS USM

128°-72°
Full Frame Canon RF Mount
Canon RF 15-35mm f/2.8L IS USM
133°-72°
Full Frame Nikon F Mount
Nikon AF-S 17-35mm f/2.8 IF ED
123°-72°
Nikon AF-S NIKKOR 16-35mm f/4G ED VR
128°-72°
Full Frame Nikon Z Mount
Nikkor Z 14-30mm f/4 S
140°-81°
Full Frame Sony FE Mount
Sony SEL1635GM FE 16-35mm F2.8 GM
128°-72°
Sony SEL1635Z Vario-Tessar T* FE 16-35mm F4 ZA OSS
128°-72°

This table is preliminary, and compatibility testing is ongoing. More lens configurations will be evaluated in the coming weeks!
