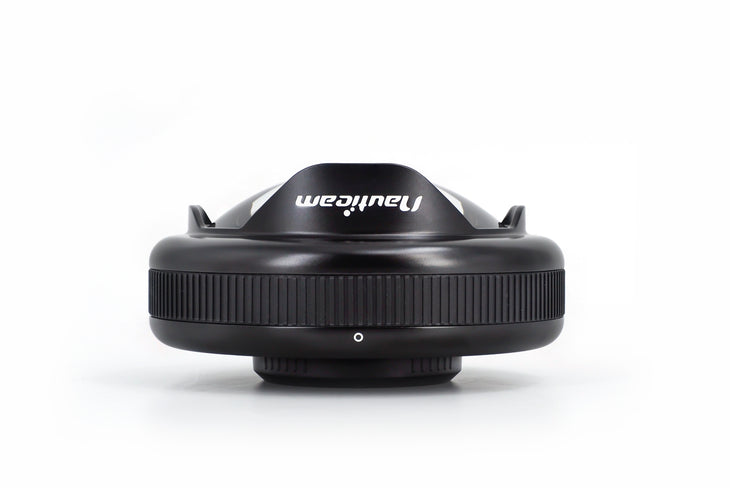

Introducing Nauticam WWL-C
With the original Wet Wide Lens, the WWL-1, Nauticam used computer aided lens design software to create an underwater-specific corrective lens that allowed for an unprecedented 130º field-of-view with full zoom-through optics and extreme close focus capabilities. The WWL-1 wasn't just for higher end cameras that already benefitted from interchangeable lenses to attain better image quality, the WWL-1 was designed to work with a variety of cameras that featured a 28mm equivalent lens including compacts and micro-four thirds.
Delivering a stunningly sharp 130º field-of-view with 24mm equivalent lenses, the WWL-C also features zoom-through capable optics.** The WWL-C features a pre-installed metal buoyancy collar and a non-removable metal dome shade.
The WWL-C will also feature an updated quick-release Bayonet Mount. Lenses that feature the new Bayonet Mount II will not be compatible with previous Bayonet Mount adapters but all Bayonet Mount lenses will be able to be used with the new Bayonet Mount II Bayonet Mount Adapters without modification.
In the sidebar you will find a list of anticipated housing compatibility along with the supported focal-length range as well as the necessary port configuration for the Bayonet Mount II standard.
The WWL-C is designed around the 24mm focal length which is commonly the widest focal length for fixed-lens compact cameras. While the WWL-1 was also able to deliver 130º field-of-view it required that the camera's lens be zoomed in slightly to 28mm. With the WWL-C, there's no more need to zoom to avoid vignette! This also means that more of the camera's zoom range is available.
The new NA-TG6 (17816) for the Olympus Tough TG-5 and TG-6 cameras is WWL-C ready out-of-the-box as it comes with the new Bayonet Mount II converter pre-installed. With the TG-5 and TG-6 the WWL-C allows for use of the 25-100mm zoom range!
For those compact housings with the N50 interchangeable port system, there are new short ports with Bayonet Mount II adapters pre-installed.
Configurations for some of the latest models:
Sony RX100 VII in the NA-RX100VII use (38705) N50 Short Port 17 with Bayonet Mount with a usable zoom range of 24-30mm
Canon PowerShot G5X Mark II in the NA-G5XII use (38703) N50 Short Port 25 with Bayonet Mount with a usable zoom range of 24-50mm
Panasonic Lumix DMC-LX100 II in the NA-LX100II use (38704) N50 Short Port 22 with Bayonet Mount with a usable zoom range of 24-30mm
Complete configurations for all supported models can be found on the Port Chart for the WWL-C.
Mirrorless M4/3 Housings
The WWL-C is not just for compact cameras! The Panasonic LUMIX G VARIO
12-32mm F3.5-5.6 ASPH. MEGA O.I.S. lens, when used with (36165) N85 Power zoom macro port 29 and the (83250) M67 to bayonet converter II allows for the use of the full 12-32mm zoom range.
The recommended port configuration can be found here.
Mirrorless APS-C Housings
Sony, Canon, Nikon and Fuji Mirrorless APS-C can all benefit from the WWL-C. The Sony SELP1650 E PZ 16-50mm F3.5-5.6 OSS offers excellent performance from 17-50mm with only slight vignetting at 16mm. The compact size of the WWL-C works in tandem with the low profile series of Nauticam housing for Sony's E-mount APS-C series of cameras such as the NA-A6600 and NA-A6400 to provide a travel-friendly package that doesn't compromise optical quality.
The recommended port configuration for this can be found here.
ADAPTER FOR OLYMPUS PT058/PT059 HOUSINGS
Using the WWL-C with the Olympus PT058 and PT059 Housings for their Tough TG-5 and TG-6 cameras is now also an option with the (83256) Bayonet Mount Converter for Olympus PT058/059.
What's In The Box:
- Hard Cap
- Rear Cover
- Microfiber Cloth for Cleaning
- Padded Travel bag
Bayonet Mount II
The WWL-C is designed around the new Bayonet Mount II system. While previous optics equipped with a bayonet mount will work with new Bayonet Mount II adapters, the WWL-C will not be compatible with:
- 83213 M67 to Bayonet Mount Converter
- 83215 M77 to Bayonet Mount Converter
- 83222 Bayonet Mount Lens Holder for Arms
- 83223 Bayonet Mount Double Lens Holder for Arms
- 83227 Bayonet Mount Lens Holder for Inon Float Arms
- 72231 Single Bayonet Holder for 70mm Float Arm
- 72232 Double Bayonet Holder for 70mm Float Arm
- 72241 Single Bayonet Holder for 90mm Float Arm
- 72242 Double Bayonet Holder for 90mm Float Arm
These mounts and adapters will be discontinued and be replaced by
- 83250 M67 to Bayonet Converter II
- 83251 M77 to Bayonet Converter II
- 83252 Bayonet Holder for Arms
- 83253 Double Bayonet Holder for Arms
- 83254 Bayonet Lens Holder for Inon Float Arms
- 83255 Bayonet Converter for NA-TG5 (to use with WWL-1/WWL-C)
- 83256 Bayonet Converter for Olympus PT-058/059 (to use with WWL-1/WWL-C
- 72233 Single Bayonet Holder II for 70mm Float Arm
- 72234 Double Bayonet Holder II for 70mm Float Arm
- 72243 Single Bayonet Holder II for 90mm Float Arm
- 72244 Double Bayonet Holder II for 90mm Float Arm
The Bayonet Mount II will be the new standard moving forward.
