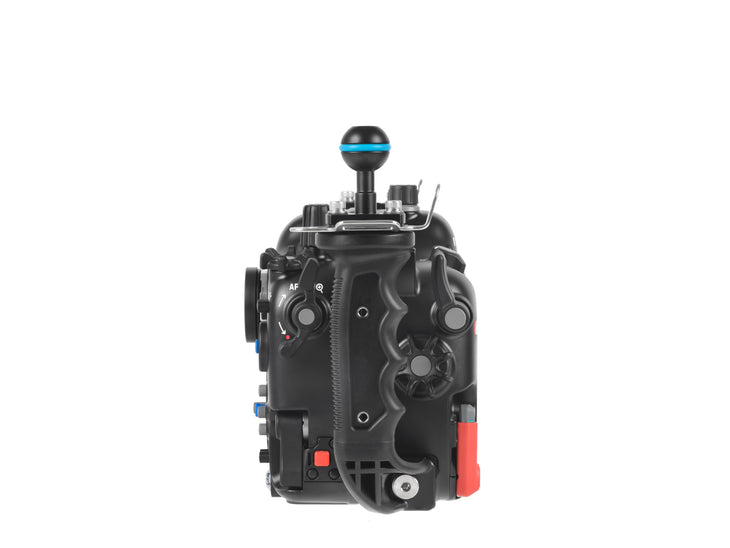

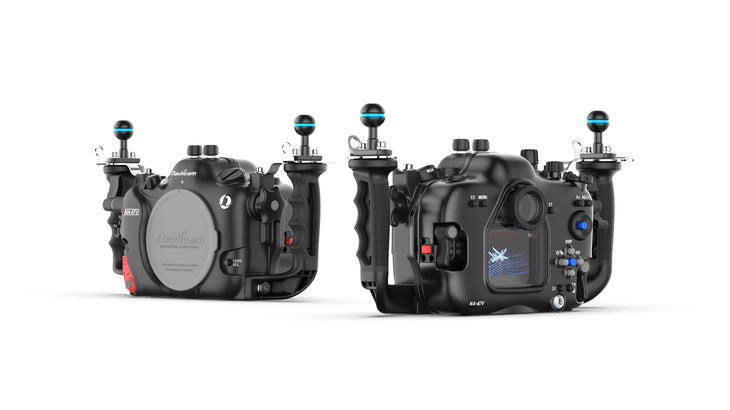

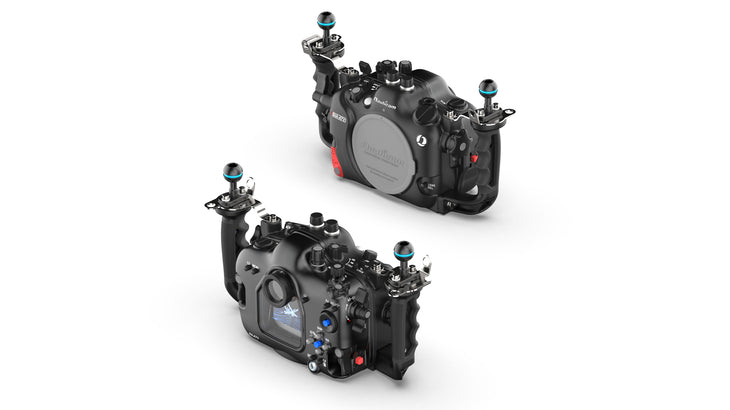

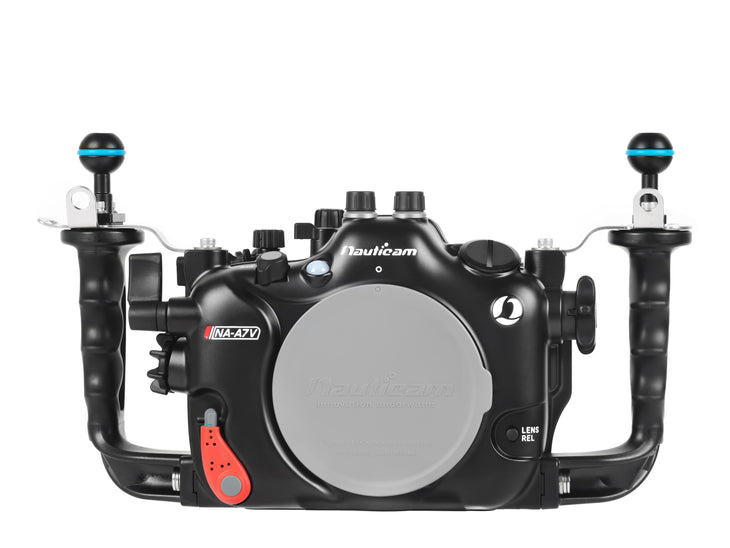

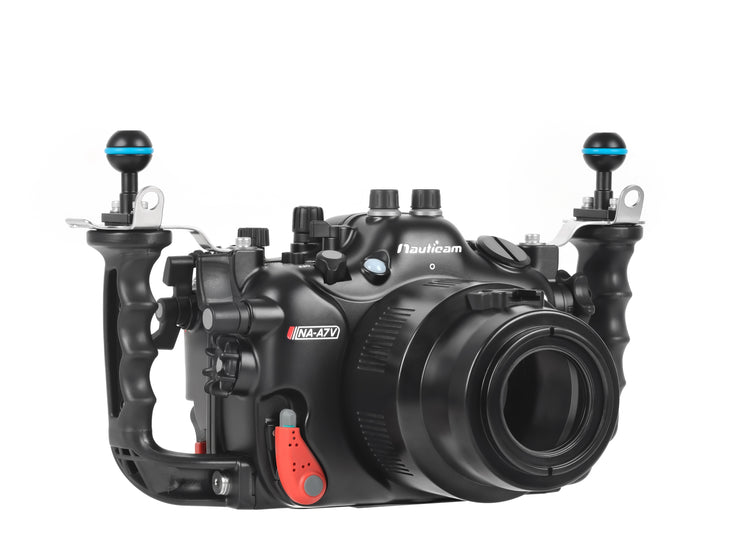

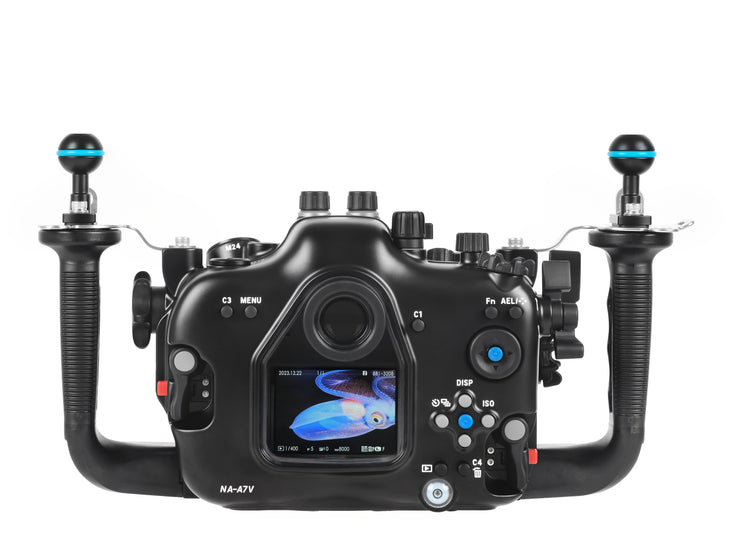

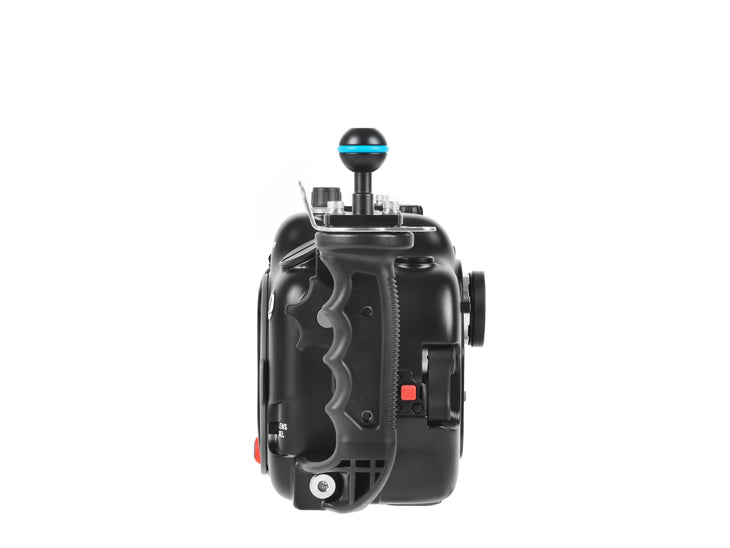

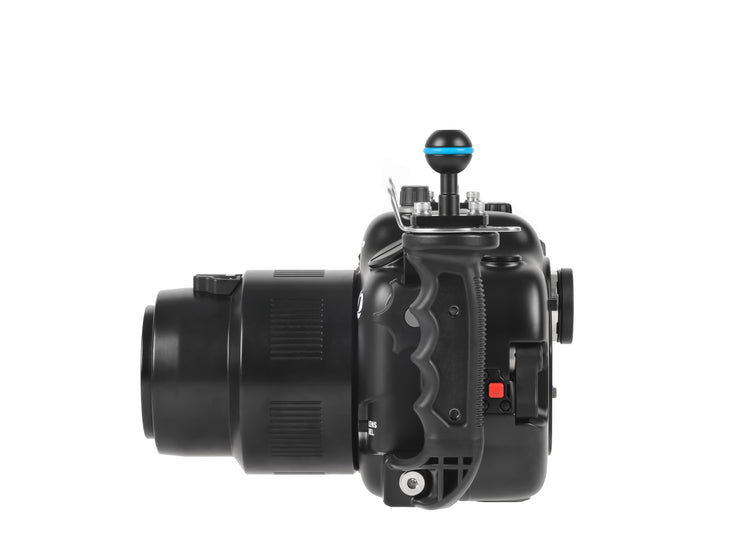

Nauticam NA-A7V Housing for Sony α7 V Camera
$4,700.00

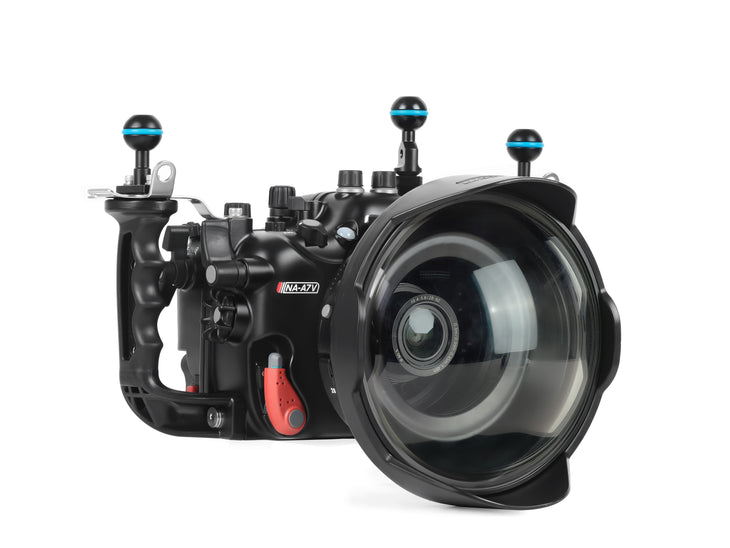

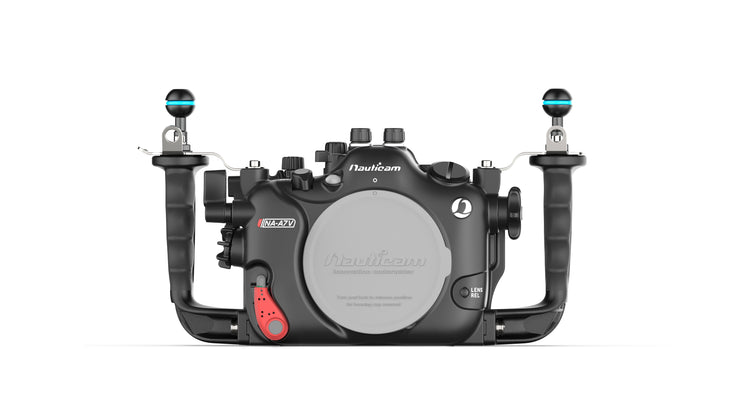

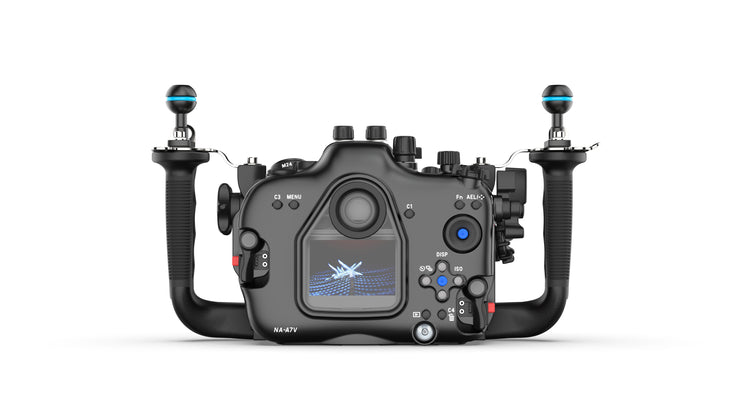

The Nauticam NA-A7V is a rugged aluminum underwater housing providing full, ergonomic control of the Sony Alpha 7V mirrorless camera to a maximum depth of 100m (330ft). It features the N100 port system and comes standard with integrated vacuum check and leak detection electronics for enhanced security.
© Matthew Sullivan

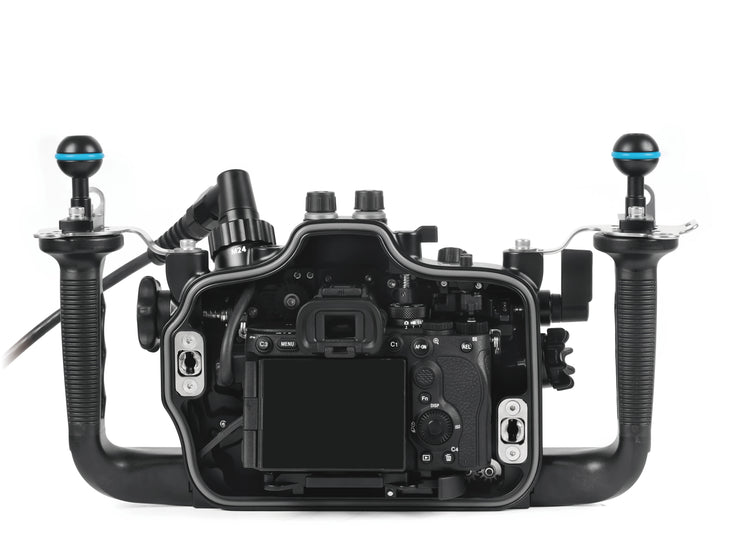

- "Mission Control" Ergonomics: Nauticam's design philosophy places essential camera controls, such as dials and levers, within easy reach of the reinforced handles, ensuring intuitive operation by placing all of the essential camera controls right at your fingertips.
- Robust Construction: The housing is constructed from a durable, corrosion-resistant aluminum alloy, built to withstand demanding underwater environments.
- Patented Port Locking Lever: This signature feature allows for quick and secure changes of N100 ports with a simple lever action, requiring no twisting or threading.

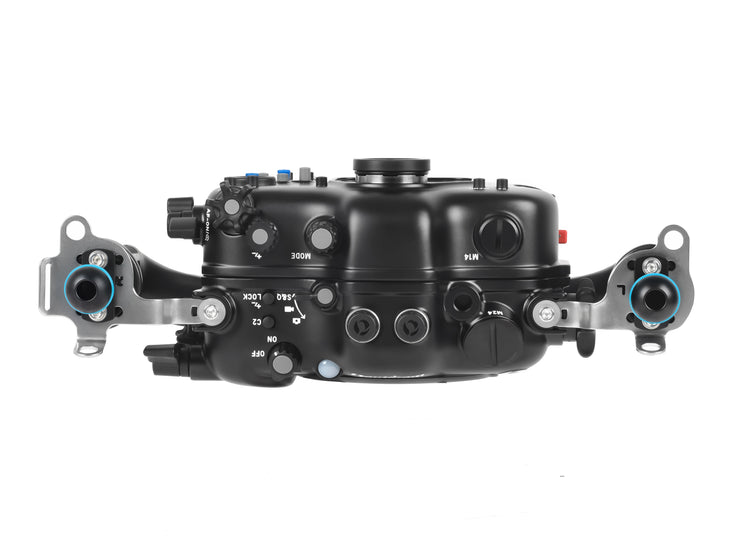

- Integrated Vacuum System: The housing includes built-in electronics for Nauticam's Vacuum Check and Leak Detection system (requires an optional M14 Vacuum Valve PN 25624). This system provides constant visual and audible confirmation of the watertight seal's integrity.
- Locking Housing Latches: The easy-to-use closure system securely seals the housing back and allows for a quick and easy access for battery or media card changes.
- Flash Triggering Options: The housing supports both optical and electrical triggering of external strobes via integrated fiber-optic bulkheads or optional electrical bulkheads.
Technical Specifications
| Dimensions | 340mm(W) x 170mm(H) x 127mm(D) |
| Weight in air | 2.7kg |
| Buoyancy in Water | Positive -0.2kg (incl. camera with battery) |
| Depth Rating | 100m |
| Port Mount | N100 |
Port Compatibility
View the N100 Sony E-Mount Port Chart ↗ (opens in a new tab)

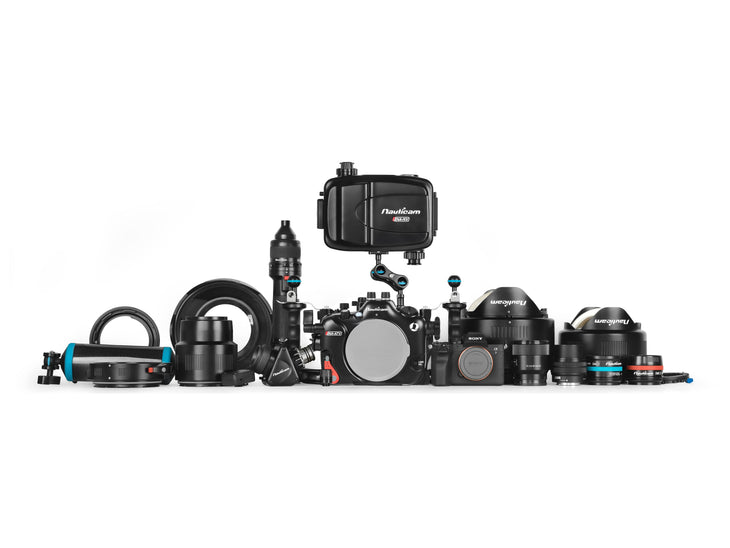

Recommended Accessories
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using lanyard)
- 25228 M5 strobe mounting ball for housing
- 25624 M14 Vacuum Valve II (Pushbutton Release)
- 25413 27cm lanyard with 2 snap hooks
-
28130 Hand Strap for 28113

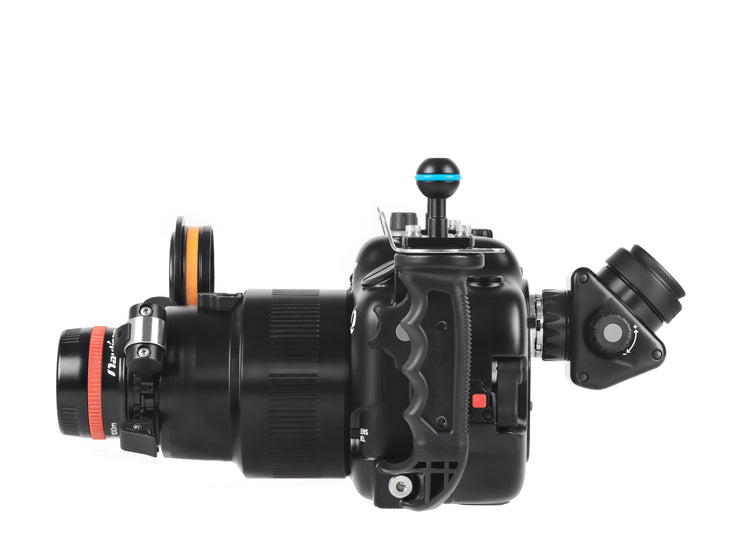

- 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
- 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1
Optical Triggering
- 26305 Nauticam Mini Flash Trigger for Sony & Compatible with NA-A7/A7II/A7III/A7RIV/A9/A1
- 26216 Universal Optical Fiber Cable is required.
Surface USB-PD Power Bank

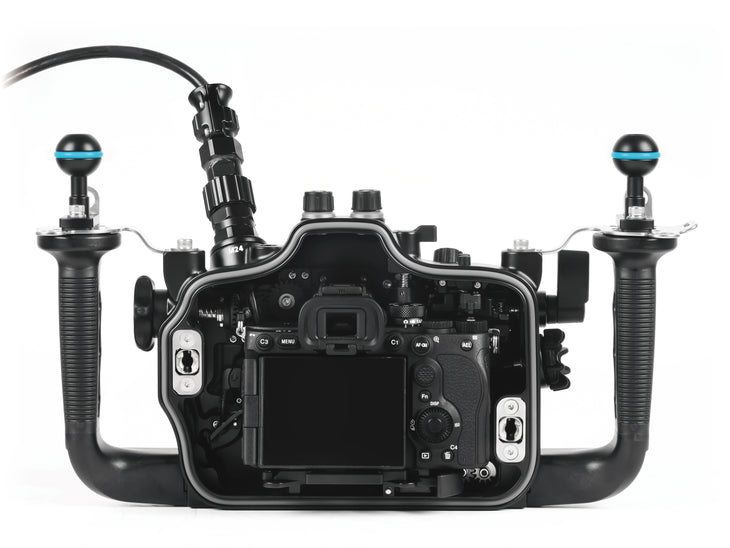

HDMI Output
Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25094 M24A3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7SIII to use with Ninja V housing)
Monitor housing Options:
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
- 25095 HDMI (D-A) 1.4 Cable in 170mm Length (for connection from HDMI bulkhead to camera)
Monitor housing Options:
- 16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
-
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is Required for use with 16611 and 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033,25038,25100
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)
Monitor / Tripod Mounting System
-
17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
Wet Lenses
Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wide-angle
- 87303 EMWL Set #3 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87203 EMWL Focusing Unit #3 (for Canon FF 100mm & APS-C 60mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
