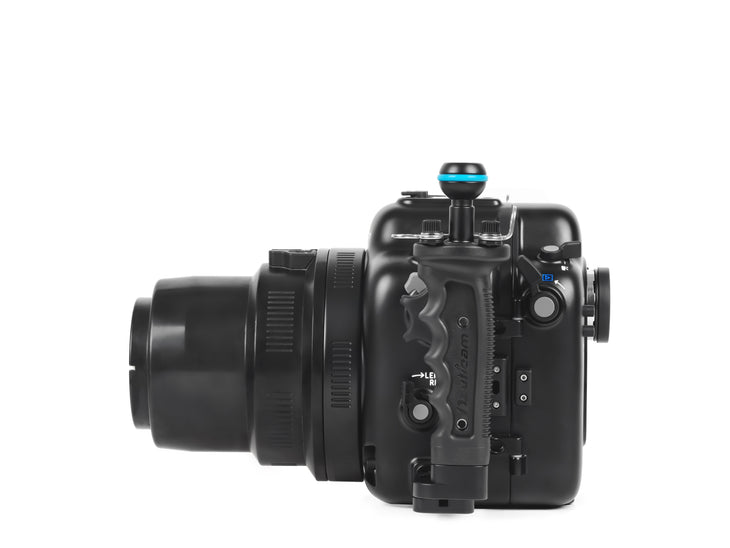

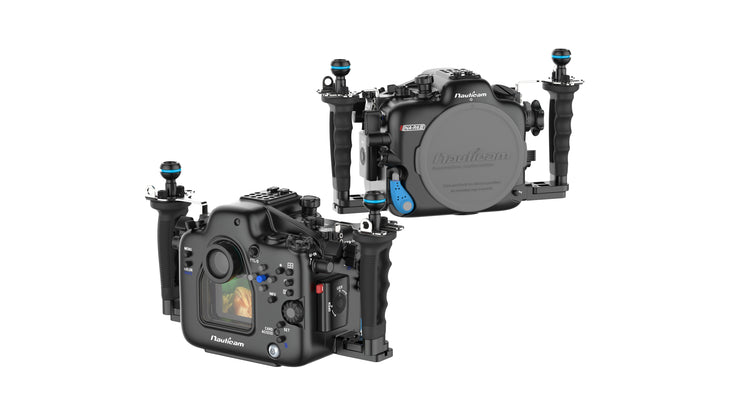

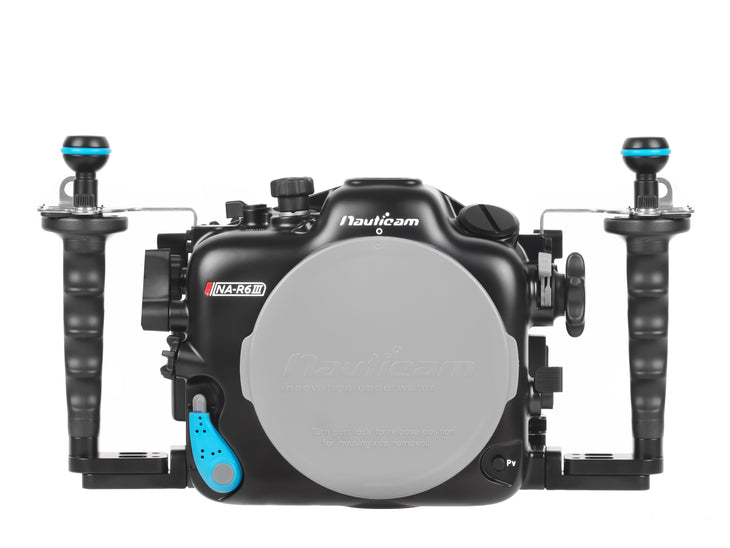

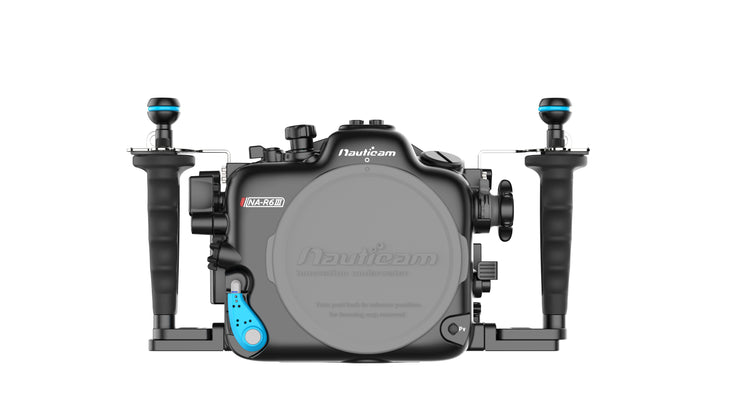

Nauticam NA-R6III Underwater Housing for Canon EOS R6 Mark III Camera

The Nauticam NA-R6III is a professional aluminum underwater housing for the Canon EOS R6 Mark III, featuring ergonomic "Mission Control" access to all of the cameras control dials and functions, N120 port system compatibility for RF/EF lenses, and standard vacuum check/leak detection for seal integrity, supporting advanced underwater photo/video with integrated vacuum, optical/electrical flash, and HDMI 2.0/1.4 bulkhead options for external monitors.

Key Features

• Construction: Machined aluminum with hard anodize coating, depth-rated to 100m (330ft).

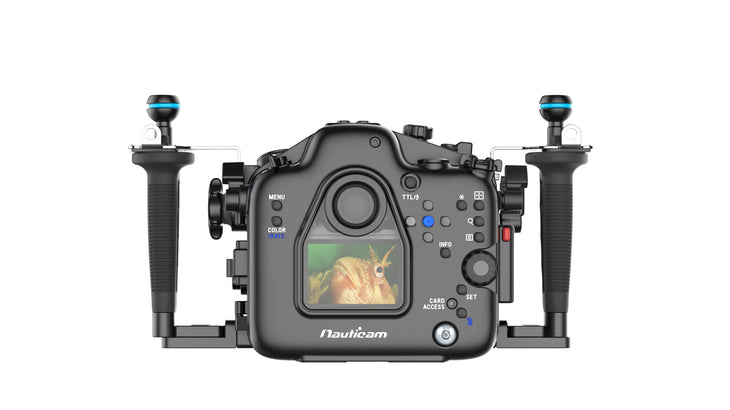

• Ergonomics: "Mission Control" design keeps essential controls near the handles; dual thumb levers, sub-levers, and large dials for intuitive control.
• Lens Support: Uses the N120 port system, supporting both native Canon RF and adapted EF lenses with the appropriate adapter.
• Vacuum System: Integrated vacuum check and leak detection system with color-coded LED and optional vacuum valve for continuous monitoring.
• Flash Triggering: Supports both optical and electrical flash triggering for strobes.
• Video/Monitor Support: HDMI 2.0/1.4 compatible for external monitors.
• Ease of Use: Features quick port locking, a rotary housing lock, and a dedicated RF mount lens release lever for efficient setup.

What's in the box:

• NA-R6III Housing
• Main Housing O-Ring
• N120 Port Cap
• 2x Optical Bulkhead Caps
• 2x Handles with mounting balls and 2x handle brackets
• Pre-installed Leak Detection & Moisture Alarm with CR-2032 Battery
• Spare Main Houisng O-ring, O-ring remover and Nauticam Lubricant
• Set of Allen Keys

• Padded Housing Bag and Shoulder Strap

Recommended Accessories

• 17959 Housing Mounting Ball with 1/4'' Screws
• 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
• 25221 M10 strobe mounting ball for housing
• 25224 M10 strobe mounting ball for housing (with hole for using lanyard)
• 25228 M5 strobe mounting ball for housing
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 25413 27cm lanyard with 2 snap hooks
• 28130 Hand Strap for 28113

• 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
• 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1

Optical Triggering

• 26305 mini Flash trigger for Fujifilm/Canon
• 26321 TTL Flash Trigger for Canon
• 26216 Universal Optical Fiber Cable is required.

Surface USB-PD Power Bank

• 26325 USB-C Bulkhead with USB-C Connector
• 26326 M24-M16 Adaptor for use with 26325

HDMI Output

Required accessories for HDMI 2.0 Cable System

• 25086  M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)

Monitor housing Options:

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit  Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit  Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread
• 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera)

Monitor housing Options:

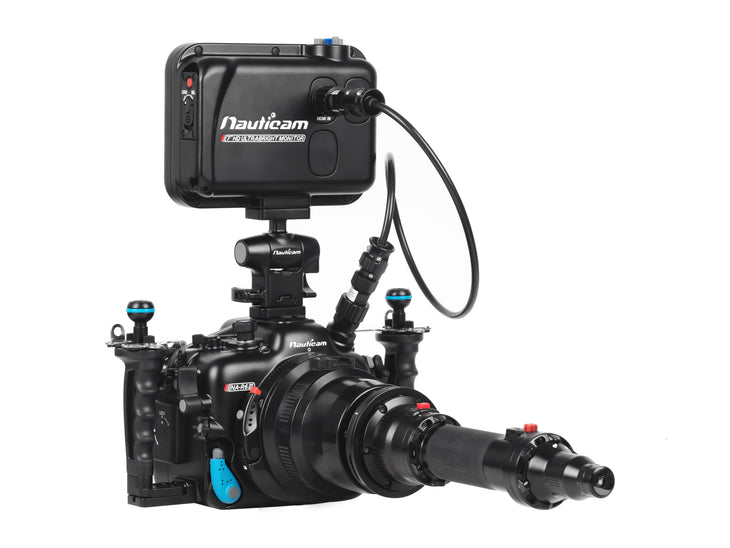

• 16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
• 16612 Nauticam 7'' T7  UW ULTRAHD Monitor  (HDMI 1.4 input, excl. cables)
• 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is Required for use with 16611 and 16612 monitor housing

• 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033,25038,25100
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
• 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)

Monitor / Tripod Mounting System

• 17954 Tripod plate for NA-A7S and NA-GH4

• 17960 Universal Quadra-Pod Plate for Nauticam Housings
• 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
• 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)

Wet Lenses

Macro

• 81202 Super Macro Convertor 2 (4x Magnification)
• 81203 Super Macro Convertor 3 (2.3x Magnification)
• 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
• 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
• 81501 Mid-range Focus Optimizer 1
• 81503 Mid-range Focus Optimizer 3

Wide-angle

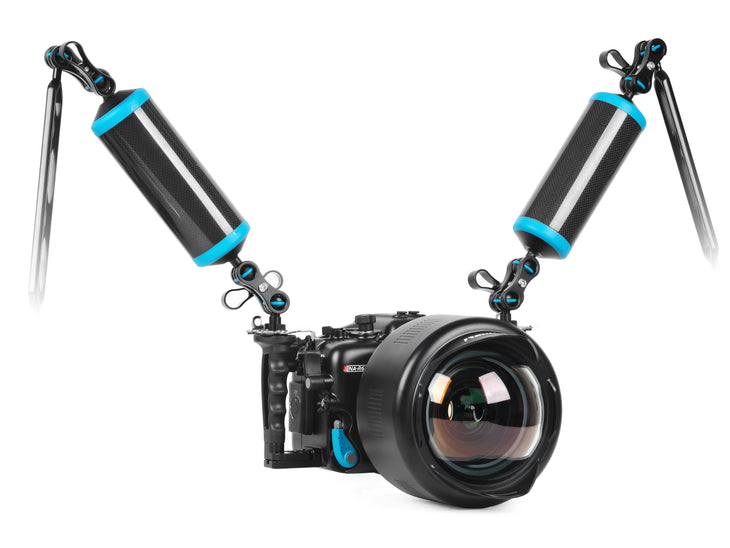

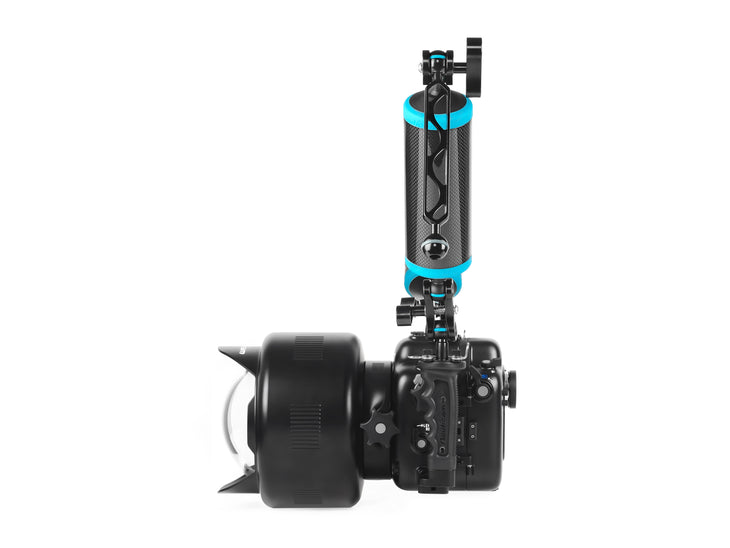

• 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
• 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)

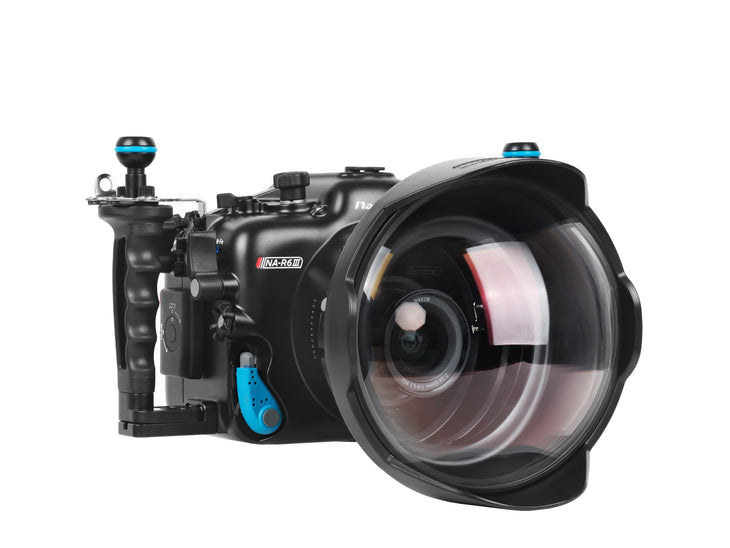

• 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
• 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
• 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
• 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses

Macro to wide-angle

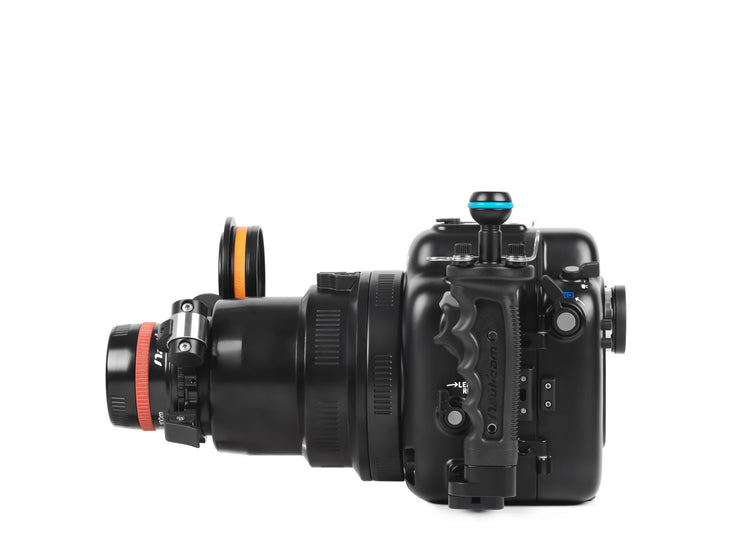

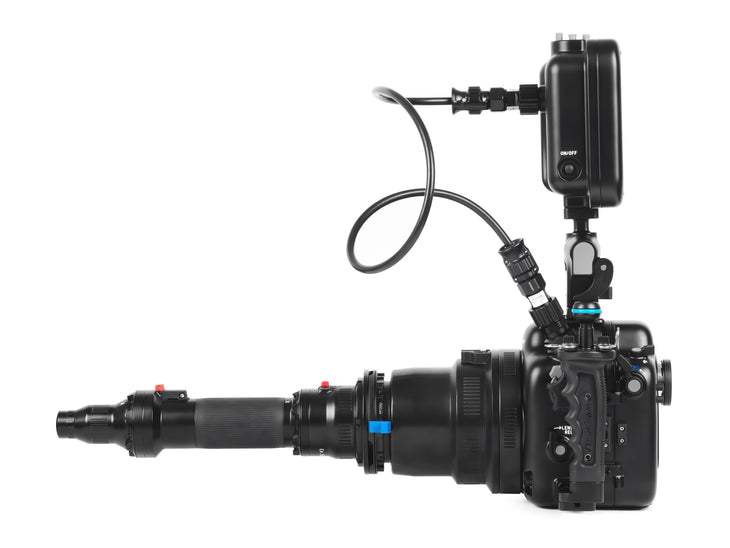

• 87303 EMWL Set #3 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
• 87203 EMWL Focusing Unit #3 (for Canon FF 100mm & APS-C 60mm)
• 87211 EMWL 150mm Relay Lens
• 87212 EMWL Angled Relay Lens
• 87221 EMWL 60° Objective Lens
• 87222 EMWL 100° Objective Lens
• 87223 EMWL 130° Objective Lens
• 87226 EMWL 160° Objective Lens

---
