NA-E2F Nauticam Underwater Cinema Housing for Z CAM E2-S6/F6/F8 Cinema Camera

The Z Cam Lineup

The Z Cam flagship lineup is comprised of four models, the E2-F8, E2-F6, E2-S6, and the E2-M4.  The Nauticam NA-E2F underwater housing will accommodate all four models.

Key Camera Specifications:

Z CAM E2-F8

• 8K 30fps, 6K 30fps, 4K 60fps, 10-bit color

• 12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V

• Full Frame CMOS Sensor
• Dual native ISO

• 14 stops dynamic range
• ZRAW supported

• EF Mount
• Gigabit Ethernet for data, control, and live preview

Z CAM E2-F6

• 6K 60fps, 4K 120fps, 10-bit color
• 12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V
• Full Frame CMOS Sensor
• 15 stops dynamic range
• ZRAW supported
• EF Mount
• Gigbit Ethernet for data, control, and live preview

Z CAM E2-S6

• 6K 60fps, 4K 100fps, 10-bit color
• 12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V
• Super 35 CMOS Sensor
• 14 stops dynamic range
• ZRAW supported
• EF Mount
• Gigabit Ethernet for data, control, and live preview

Z CAM E2-M4

• 4K 160fps, 10-bit color
• 12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V
• 4/3" WDR CMOS Sensor
• 13-15 stops dynamic range (16 stops with WDR enabled)
• ZRAW (partial debayer)
• MFT Mount
• Gigabit Ethernet for data, control, and live preview

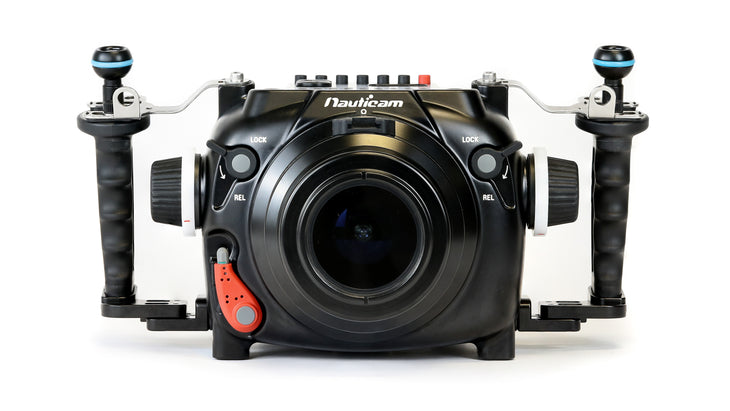

The Nauticam NA-E2F Underwater Housing

The NA-E2F follows suit with the original NA-E2 as one of the lightest and smallest raw-capable underwater cinema housing ever produced. Nauticam has been a leader in underwater cinema housings with offerings for RED, ARRI, Canon, PhantomFlex, Sony and now Z Cam.

The NA-E2F uses the N120 Cinema port system, shared with Nauticam's other N120 platform cameras which allows for easy transition to the NA-E2F from other N120 Nauticam systems. The N120 system also provides access to Nauticam's line of professional premium optics such as the WACP-1/2 and SMC-1/2.

The Z Cam E2-M4 can be used with either the Z Cam EF Mount or using the native MFT mount with Metabones EF-MFT Speed Booster Ultra 0.71x Adaptor.  When using the Metabones Speed Booster, the mounting position of the camera tray must be adjusted by the user.

There are 17 LANC control buttons ergonomically placed around the housing including dedicated iris+/iris-, record, focus near/focus far, eND+/eND-, and many more.  1/4"-20 size mounting threads are located on the top and bottom of the housing for easy mounting of cinema accessories.

The NA-E2F supports an ethernet surface feed in 5m (pole cam) and 45m (studio) lengths.  The Z Cam E2 lineup offers a wide range of remote control options including live preview over ethernet.  This opens up the option of using an ethernet to lighting adaptor, then having an iPad or iPhone on the surface to allow monitoring and full control via the Z Cam app.

The underwater housing also features adjustable handles with cinema style zoom and focus knobs.

The E2 lineup supports Sony NP-F series batteries and the NA-E2F matches this compatibility up to and including the FP-970.

As with the NA-BMPCC2 and NA-E2, the NA-E2F allows for the internal mounting of a Samsung T-5 SSD drive as recording media making the transition from capture to edit seamless.

The Z Cam E2 lineup requires an external monitor and Nauticam produces several options for both SmallHD and Atomos monitors.  To access the 12-Bit ProRes RAW Recording, you will need to use the Atomos Ninja V monitor with the Nauticam Ninja V underwater housing. The NA-E2F features both an M28 and four M16 bulkheads supporting both HDMI 2.0 (M28) and HDMI 1.4 (M16) connections.

HDMI OUTPUT

Required accessories for HDMI 2.0 Cable System

• 25079 M28A2R210-M28A1R170 HDMI 2.0 Cable (for NA-GH5V/E2/E2F to use with Ninja V housing)
• 25088 Cable Clamp for NA-E2/E2F Housing with Screws

Required accessories for HDMI 1.4 Cable System

• 16243 HDMI A-D Cable in 0.5m Length for RED DSMC2/C200/EVA1/E2 (for internal connection)
• 25033 standard HDMI bulkhead with M16 thread

Recommended monitor housing

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” Recorder/Monitor (with HDMI 2.0 support)
• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor (with HDMI 1.4 input support)
