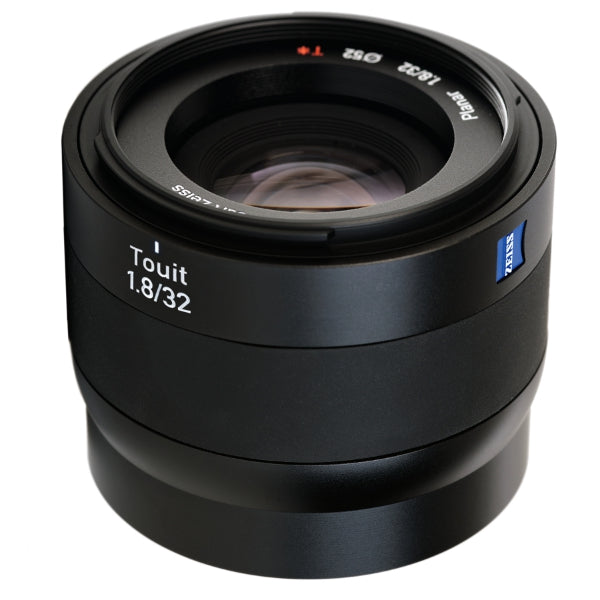

Zeiss Touit 32mm f/1.8 E for Sony E Mount
SKU # Zei.2030.678
Magician of the moment
The best of two worlds. Just like a 50 mm lens in 35 mm photography, the Touit 1.8/32 offers the same angle of view as the human eye. However, optimised for use with APS-C format sensors, it is simultaneously a lens that is so light and compact that it can be taken along simply anywhere and everywhere you go. Whether you are shooting portraits, landscapes or spontaneous snapshots, you will never cease to be amazed by what a Touit 1.8/32 can tease out of your camera. It is quite simply the ideal companion for capturing perspectives and colour- and lighting moods in perfect pictures.
The Planar lens type is the most successful – and the most frequently copied – lens design of all time. It offers lens calculators numerous opportunities for almost complete correction of all optical aberrations, and is therefore even today the basis for the design and construction of modern, high-performance lenses. Modification of this proven, six-lens, basic design can achieve significantly improved performance for use with today’s image sensors.
The ZEISS Touit lenses are designed and constructed specifically for use on Sony NEX and FUJIFILM X Series cameras with APS-C sensors. The lenses are therefore fully-compatible and support all camera functions, including autofocus.
Smooth and reliable AF action
The design of the autofocus system demands an extremely precise movement of certain lens elements. As the mass of the elements or groups to be moved within the optical system differs, various motor types may be installed. The focusing system of the Touit lenses is designed to guarantee robust and smooth autofocusing without any need for compromises or limitations in their optical design.
Information: To reach the best compatibility on Sony NEX Cameras (AF in video mode) we highly recommend to use the latest Sony NEX firmware.
Carl Zeiss T* anti-reflective coating
The optical elements of ZEISS lenses feature T* anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. We apply the anti-reflective coating to the lens surfaces by the vapour deposition of extremely thin, transparent layers on the glass. In this process, special substances are vaporized with extremely high energy in a high-vacuum environment and are subsequently deposited on the glass surfaces, one after another, as layers with precisely controlled thicknesses to achieve the desired reduction of reflective properties. The first coating techniques were employed by Carl Zeiss as long ago as in the 1930s.
|Focal length||32 mm|
|Aperture range||f/1.8 – f/22|
|Focusing range||0,30 m (0.98 ft) – ∞|
|Number of elements/groups||8/5|
|Angular field, diag./horiz./vert.||48° / 40° / 29°|
|Coverage at close range||214 x 142 mm (8.43 x 5.59″)|
|Filter thread||M52 x 0,75|
|Dimensions (with caps)||E: 72 mm (2.83″)
X: 76 mm (2.99″)
|Diameter of focusing ring||E, X: 65 mm (2.56″)|
|Weight||E: 200 g (0.44 lbs)|
