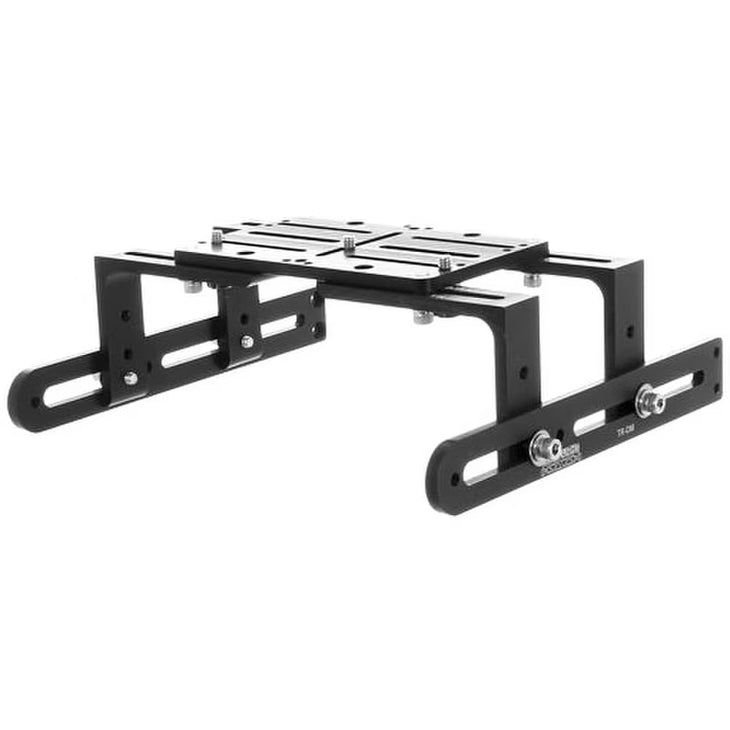

Ultralight CSK-SLDM Medium Underwater Sled Camera Tray Kit

Ultralight CSK-SLDM mid-sized underwater camera sled kit

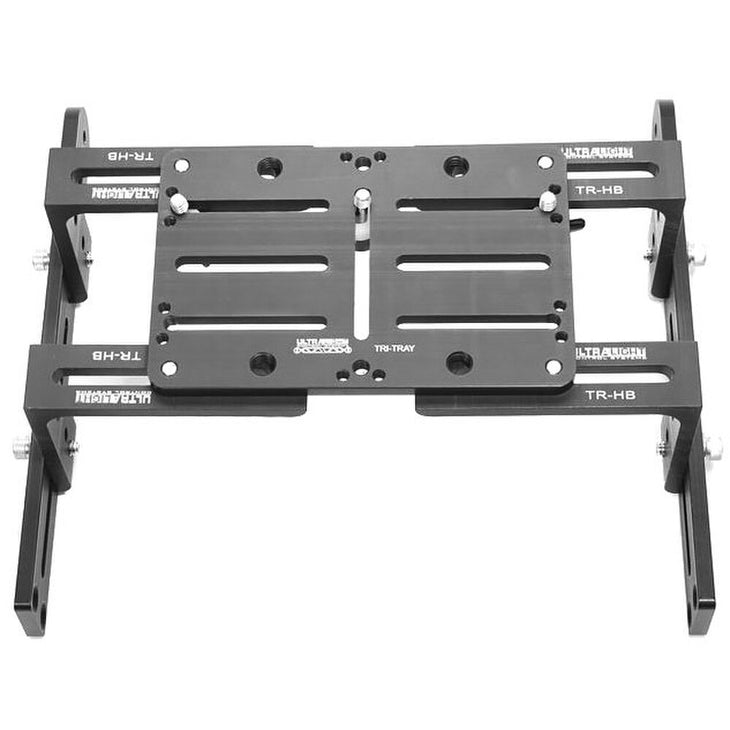

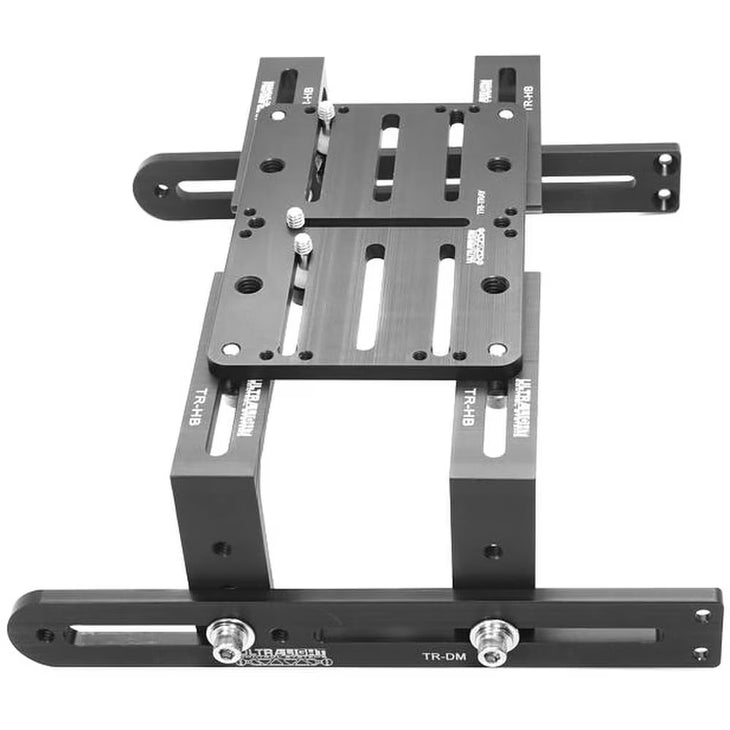

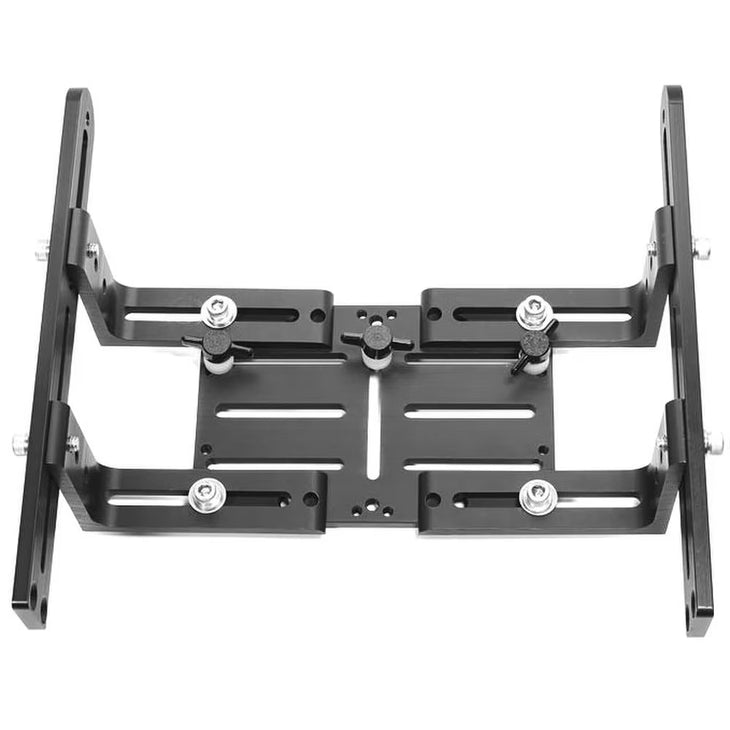

Ultralight's mid-sized modular camera sled, for compact to mid-sized underwater camera systems that benefit from more stability, protection and accessory mounting than a tray and handles can give. Two 10 inch TR-DM side rails, a TRI-TRAY mounting plate and four TR-HB brackets make a compact 10 x 6 inch platform.

The smaller footprint is easier to manage than the CSK-SLDL while keeping the versatility of the sled system: a stable base for the housing, dome port and accessories, with multiple mounting points for lights, monitors, buoyancy and other equipment as the sled is configured for a particular camera. Adjustable legs convert it into a tripod or quadpod for specialized underwater or topside shooting.

Features

• Mid-sized modular sled for compact to mid-sized underwater camera housings
• Stable, protective platform with extensive accessory mounting options
• Compact 10 x 6 inch platform, the smaller alternative to the CSK-SLDL
• Multiple mounting points for lights, monitors, buoyancy and other accessories
• Legs can be added to convert the sled into a tripod or quadpod for underwater or topside use

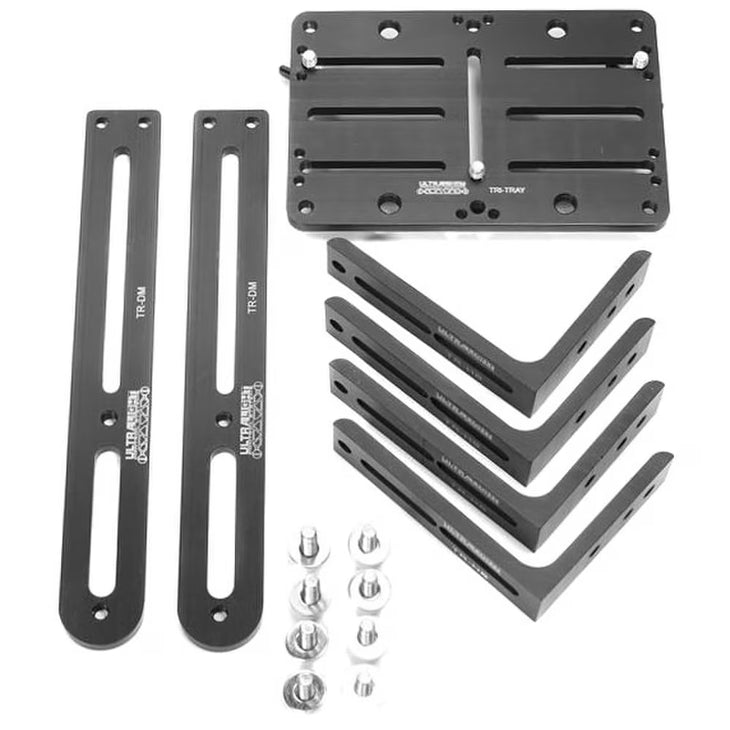

In the kit

• 2 x TR-DM camera tray side rails
• 1 x TRI-TRAY universal camera mounting plate
• 4 x TR-HB universal brackets

Machined from 6061-T6 aircraft grade aluminum, Type III hard anodized, with 316 stainless steel hardware. Manufactured, assembled and packaged in the USA, and covered by Ultralight's lifetime warranty.

See how photographers have built their rigs on these sleds at Ultralight Camera Sleds in Action.

Specifications

Dimensions	10 x 6 x 1 in (25.4 x 15.24 x 2.54 cm)
Weight	1.75 lb (0.79 kg)
Product use	Underwater
Materials	6061-T6 aluminum, Type III hard anodized, 316 stainless steel hardware
Model	CSK-SLDM

Which sled

Two sizes, each in a standard and a low profile height. Size follows the housing; profile follows the work: standard clears a dome port, low profile puts a macro lens at the bottom.

Model	Size	Profile and clearance	Weight	Best for
CSK-SLDM	Mid-sized, 10 x 6 in, TR-DM rails	Standard, TR-HB brackets	1.75 lb (0.79 kg)	Compact to mid-sized rigs, general use
CSK-SLDM-LP	Mid-sized, 10 x 6 in, TR-DM rails	Low, TR-HB-LP brackets, about 1.5 to 1.75 in to the top of the TRI-TRAY	1.62 lb (0.74 kg)	Compact to mid-sized rigs, macro and close focus
CSK-SLDL	Large, 15 x 6 in, TR-SBLD rails	Standard, TR-HB brackets, about 3.5 to 4 in to the top of the TRI-TRAY	2.09 lb (0.95 kg)	Medium to large rigs, video systems and large dome ports, general use
CSK-SLDL-LP	Large, 15 x 6 in, TR-SBLD rails	Low, TR-HB-LP brackets, about 1.75 to 2.5 in to the top of the TRI-TRAY	1.96 lb (0.89 kg)	Medium to large rigs, macro and close focus

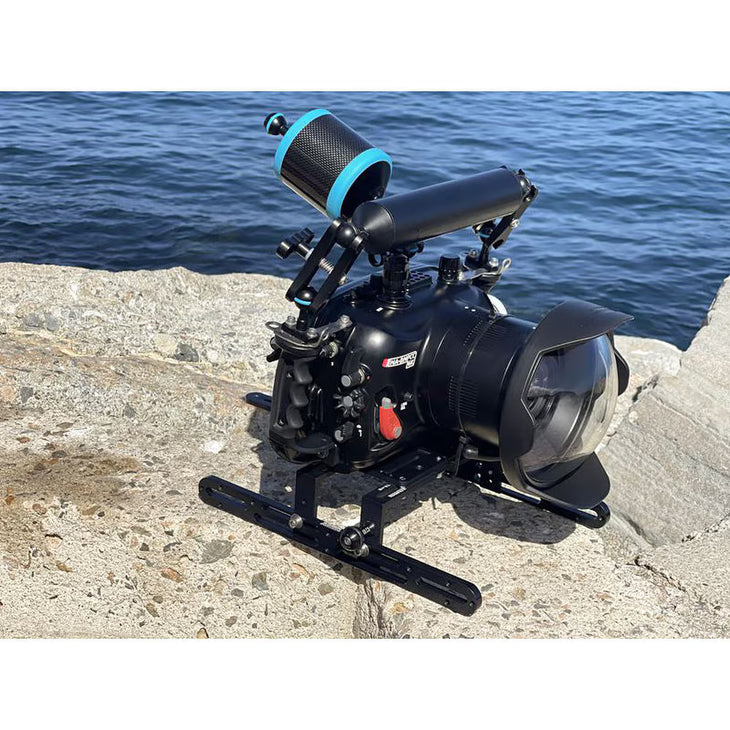

The sleds in use

---
