Ultralight CSK-SLDL Large Underwater Sled Camera Tray Kit

Ultralight CSK-SLDL Large Underwater Camera Sled Kit

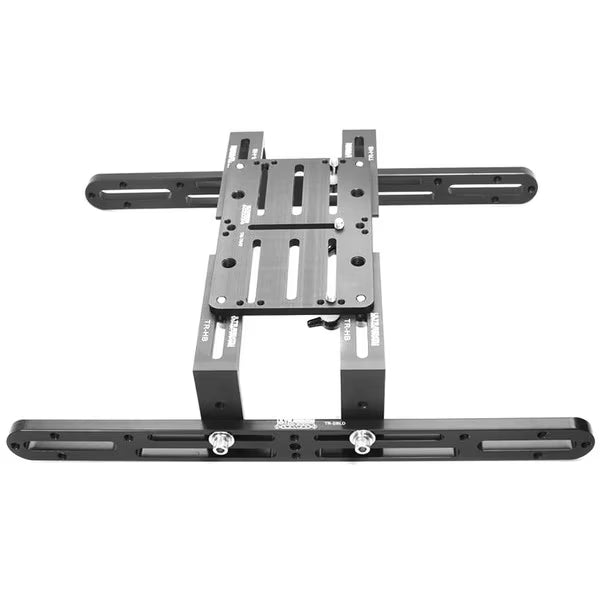

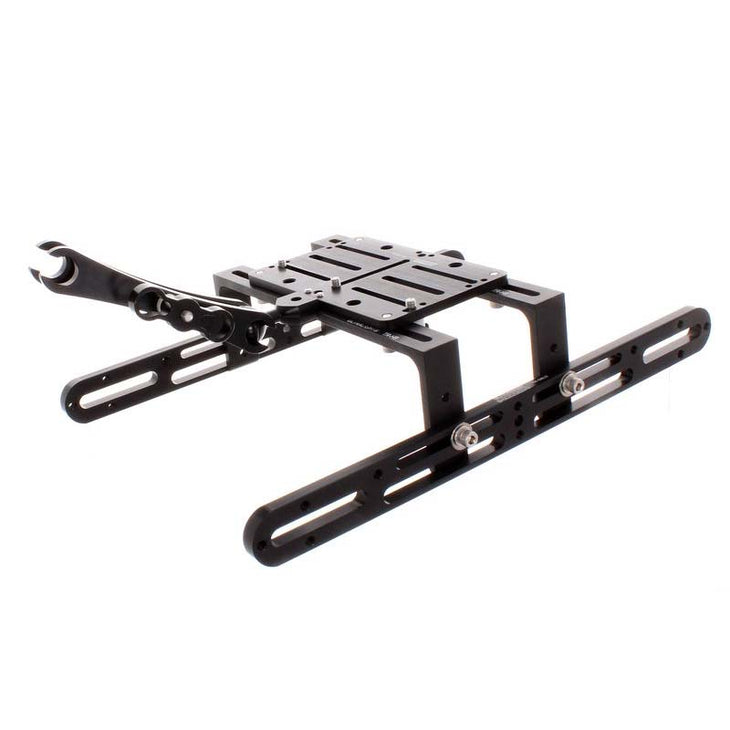

Ultralight's large modular camera sled. It gives a larger underwater housing, a video system or a big dome port a wide, stable platform that protects the camera and carries the rest of the rig: two 15 inch TR-SBLD rails, a TRI-TRAY mounting plate and four TR-HB brackets.

The brackets set the clearance from about 3.5 to 4 inches between the ground and the top of the TRI-TRAY, so a large dome keeps its distance from the bottom when the whole rig is set down on a boat deck, underwater or on location. Multiple mounting points on the rails and tray take lights, monitors, buoyancy, trim weights and other accessories while the rig is balanced, and TRI-LEG adjustable legs convert the sled into a tripod or quadpod for specialized underwater or topside shooting.

Features

• Large modular sled for larger underwater camera housings, video systems and large dome ports
• Stable, protective platform with extensive accessory mounting options
• Adjustable clearance of about 3.5 to 4 inches from the ground to the top of the TRI-TRAY
• Multiple mounting points for lights, monitors, buoyancy, trim weights and other accessories
• Legs can be added to convert the sled into a tripod or quadpod for underwater or topside use
• Trim it with the CSK-WS sliding weight kit, which rides in the 3/8 inch rail slots

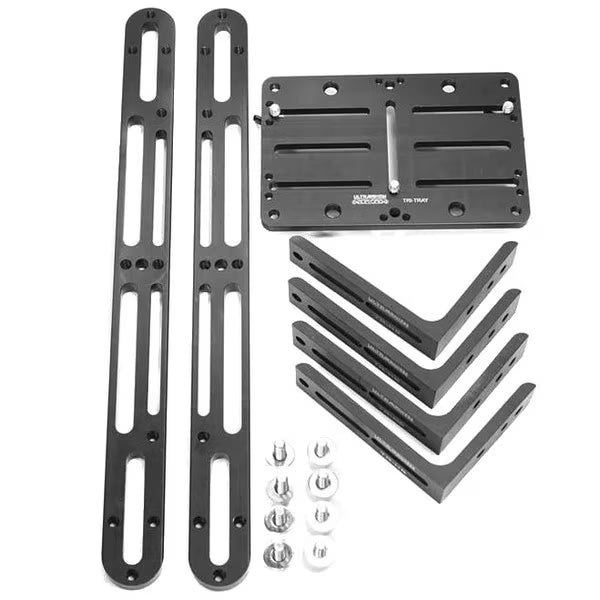

In the kit

• 2 x TR-SBLD camera tray side rails
• 1 x TRI-TRAY universal camera mounting plate
• 4 x TR-HB universal brackets

Machined from 6061-T6 aircraft grade aluminum, Type III hard anodized, with 316 stainless steel hardware. Manufactured, assembled and packaged in the USA, and covered by Ultralight's lifetime warranty.

See how photographers have built their rigs on these sleds at Ultralight Camera Sleds in Action.

Specifications

Dimensions	15 x 6 x 1 in (38.1 x 15.24 x 2.54 cm)
Weight	2.09 lb (0.95 kg)
Clearance to the top of the TRI-TRAY	About 3.5 to 4 in, adjustable
Product use	Underwater, cinematography
Materials	6061-T6 aluminum, Type III hard anodized, 316 stainless steel hardware
Model	CSK-SLDL

Which sled

Two sizes, each in a standard and a low profile height. Size follows the housing; profile follows the work: standard clears a dome port, low profile puts a macro lens at the bottom.

Model	Size	Profile and clearance	Weight	Best for
CSK-SLDM	Mid-sized, 10 x 6 in, TR-DM rails	Standard, TR-HB brackets	1.75 lb (0.79 kg)	Compact to mid-sized rigs, general use
CSK-SLDM-LP	Mid-sized, 10 x 6 in, TR-DM rails	Low, TR-HB-LP brackets, about 1.5 to 1.75 in to the top of the TRI-TRAY	1.62 lb (0.74 kg)	Compact to mid-sized rigs, macro and close focus
CSK-SLDL	Large, 15 x 6 in, TR-SBLD rails	Standard, TR-HB brackets, about 3.5 to 4 in to the top of the TRI-TRAY	2.09 lb (0.95 kg)	Medium to large rigs, video systems and large dome ports, general use
CSK-SLDL-LP	Large, 15 x 6 in, TR-SBLD rails	Low, TR-HB-LP brackets, about 1.75 to 2.5 in to the top of the TRI-TRAY	1.96 lb (0.89 kg)	Medium to large rigs, macro and close focus

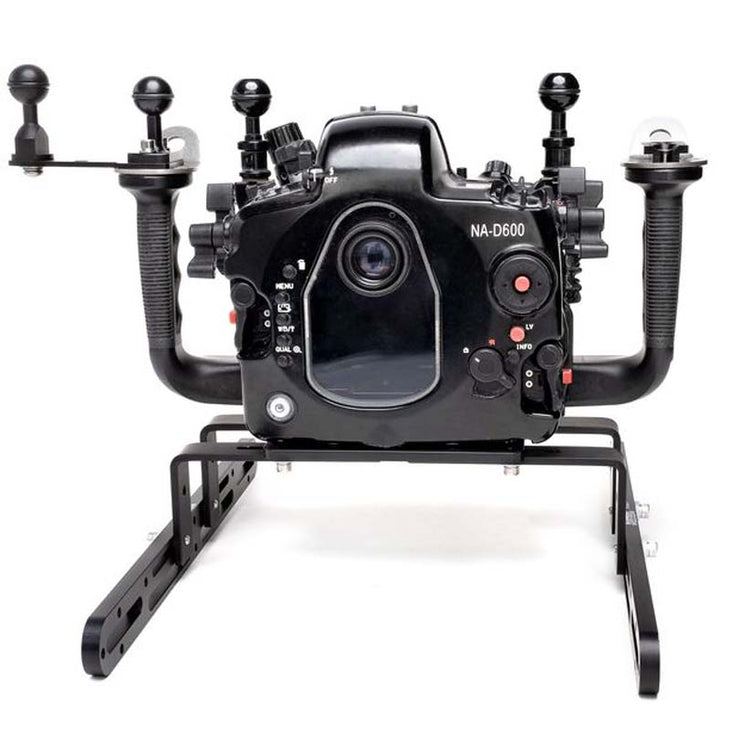

The sleds in use

---
