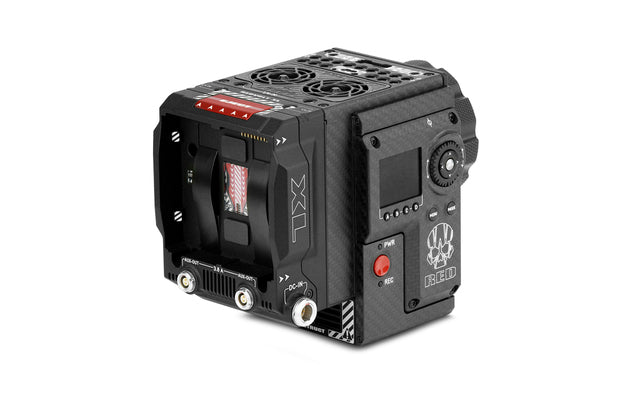

Designed for the DSMC2® camera system, the DSMC2 REDVOLT® XL Module mounts seamlessly to the back of the BRAIN®—and select other I/O expanders—to provide support for long-lasting and rechargeable REDVOLT XL batteries. The DSMC2 REDVOLT XL Module features a smaller, more ergonomic design with one dual-action release button for removing an attached battery.

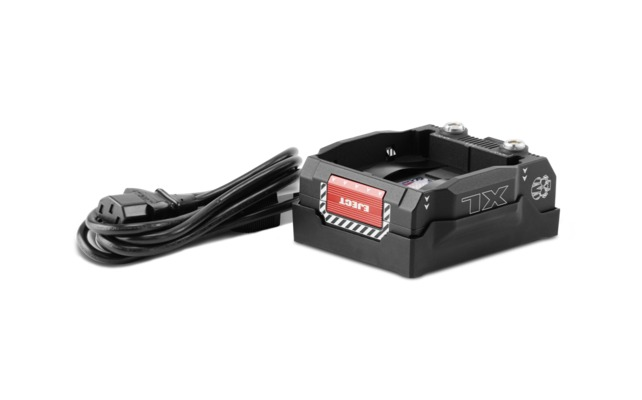

The DSMC2 REDVOLT XL Module offers a DC IN power port that can be used to power the camera system when the module is attached to the BRAIN. An included protective baseplate enables the DSMC2 REDVOLTXL Module to serve as a portable and stand-alone REDVOLT XL battery charger. Plug in the DSMC AC Power Adapter to the 6-pin 1B LEMO DC IN connector on the module and connect a REDVOLT XL battery. While the module is mounted to the BRAIN, it will only charge an attached REDVOLT XL battery if the BRAINis powered off.

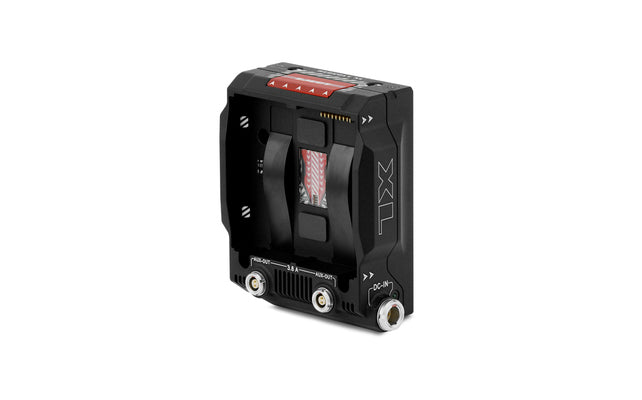

Two rear facing auxiliary ports provide power for external camera accessories, while remaining out of the operator’s way while shooting.
TECH SPECS:
| Dimensions |
Height: 4.69 in. (119 mm)
Width: 4.09 in. (103.8 mm)
Depth: 1.69 in. (43 mm) |
| Weight |
1.00 lb (453 g) |
| Material |
Aluminum |
| Mounting |
4x M4 captive mounting screws |
|
BRAIN/Expander Connection |

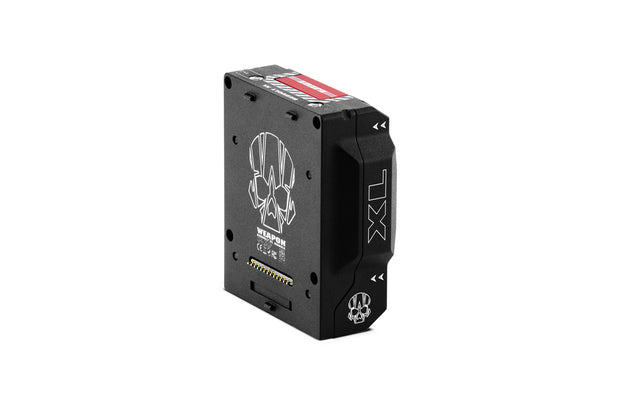

Power delivery via DSMC2 Rear pogo connector (13-Pin) |
| Connectors |
DC IN (6-Pin 1B LEMO)
2x Aux Power output (2-Pin 0B LEMO), 3.8 A total |
| Battery Compatibility |
REDVOLT XL |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
–20°C to 50°C (–4°F to 122°F) |
| Operating Humidity |
0% to 85%, non-condensing |
| Storage Humidity |
0% to 85%, non-condensing |
| Firmware Requirement |
Compatible with all DSMC2 firmware versions |
