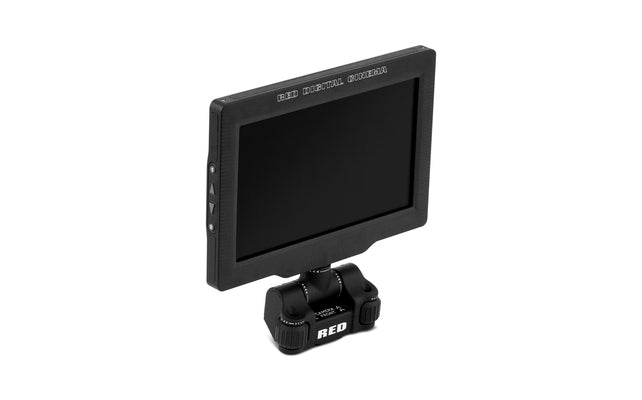

The DSMC2® RED Touch 7.0in LCD delivers the ultimate high-definition viewing experience for recording and viewing footage on your DSMC2 camera system. The 1920 × 1136 resolution display panel provides improved color accuracy, high pixel density (at 323 ppi), 1000:1 contrast, and is bright enough for operation in high ambient light. A robust, optically-bonded touchscreen offers the most intuitive way to navigate menus, adjust camera parameters, and review your .r3d clips directly out of the camera.

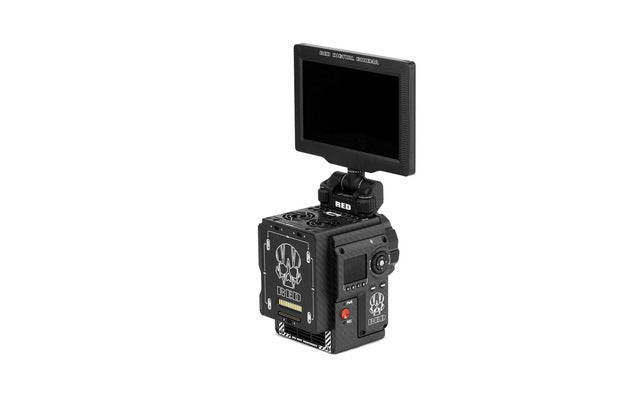

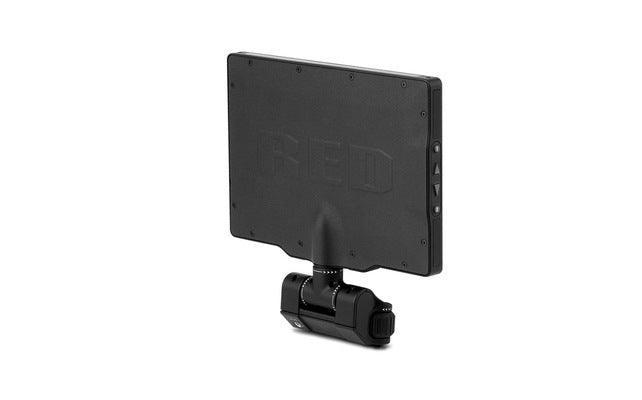

The lightweight display mounts directly to the BRAIN® without the need for any tools or hardware. Convenient thumbscrews enable you to attach and remove the display on-the-fly. Featuring a hinge design that rotates nearly 360° and folds down to lay flat for easy transportation, as well as a 180° image rotation option—the DSMC2 RED Touch 7.0in LCD is the most ergonomic DSMC2 display available. Choose from two available variations; a robust all aluminum model, or the Woven CF model for ultra-lightweight performance.
Using the DSMC2 LEMO Adaptor Collection in conjunction with the DSMC2 RED Touch 7.0in LCD allows the flexibility to mount the display away from the camera body.
| DIMENSIONS |
Height: 7.15 in. (181.5 mm), with hinge
Width: 7.28 in. (185 mm)
Depth: 0.51 in. (13 mm) |
| WEIGHT |
1.21 lbs (549 g), Aluminum
1.11 lbs (501 g), Carbon Fiber |
| MATERIALS |
Aluminum, Carbon Fiber |
| RESOLUTION |
1920 × 1136 |
|
PIXEL DENSITY
|
323 pixels per inch (ppi) |
|
REFRESH RATE
|
60 Hz |
|
RESPONSE TIME
|
23 ms (black to white) |
| CONTRAST |
1000:1 |
| BRIGHTNESS |
350 cd/m2
|
|
COLOR DEPTH
|
8-bit RGB, 4:4:4 progressive scan (16.7 million colors) |
| COLORS |
70% NTSC
|
|
VIEWING ANGLE
|
± 85° all axes |
|
DISPLAY ORIENTATION
|
Landscape, 180° rotation |
| TOUCH |
Projected Capacitive (PCAP), multi-touch |
|
RANGE OF MOTION
|
± 180° rotation, ± 90° tilt |
|
BRAIN CONNECTION
|
Power and Communication via DSMC2 LCD/EVFpogo connector (26-Pin) |
| MOUNTING |
2x M4 captive mounting screws, spring loaded, with quick-release thumb knobs |
|
ARM MOUNTING
|
1/4-20 mounting hole in base |
|
HOOD MOUNTING
|
M3x0.5 × 5 mm (max depth) |
| BUTTONS |
Up, Down, User 1, User 2 |
|
POWER CONSUMPTION
|
5.5 W (typical) |
|
OPERATING TEMPERATURE
|
0°C to 40°C (32°F to 104°F) |
|
STORAGE TEMPERATURE
|
–20°C to 50°C (–4°F to 122°F) |
|
OPERATING HUMIDITY
|
0% to 85%, non-condensing |
|
STORAGE HUMIDITY
|
0% to 85%, non-condensing |
