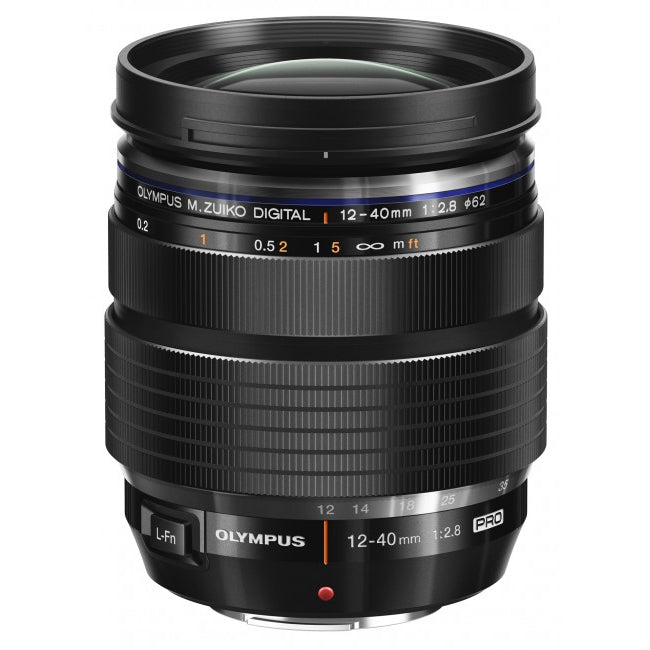

Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO Lens

Olympus M. Zuiko Digital ED 12-40mm f/2.8 PRO

This product is no longer available.

This large-aperture 3.3X Zoom lens is the first in the newly created “M.ZUIKO PRO” category. Covering a 35mm equivalent focal length of 24-80mm, this lens features all metallic construction and makes extensive use of high grade optical components including Dual Aspherical, High Refractive and ED lens elements configured in 9 groups to assure the highest level of reproduction. A fast maximum aperture of f2.8 throughout the zoom range, a manual focus clutch as well as Splash-proof, Dust-proof and Freeze-proof construction make it suitable for the most demanding professionals and enthusiasts. An “MSC” (movie and still compatible) AF lens drive system ensures fast and quiet auto-focusing – especially important when shooting HD movies. A seven blade circular aperture produces pleasing background defocusing effects.

Included:

• LH-66 Petal type hood
• LC-62D Aluminum Protective Lens Cap
• LR-2 Rear Lens Cap
• LSC 0918 Lens Pouch
• One Year World-Wide Warranty.

Focal Length	12-40mm
35mm Equivalent Focal Length	24-80mm
Lens Construction	14 Elements in 9 Groups
	(Aspherical ED lens, 2 Aspherical lenses, DSA lens, 2 ED lenses, HD lens, 2 HR lenses)
Dust & Drip Proof	Yes
Focusing System	High-speed Imager AF (MSC) - Linear Motor Drive System
Angle of View	84 - 30 Degree
Closest Focusing Distance	7.87 inches
Maximum Image Magnification	0.3x
35mm Equivalent Max. Image Magnification	0.6x
Minimum Field Size	58 x 44  mm
Number of Blades	7 (Circular Aperture Diaphragm)
Maximum Aperture	f2.8
Minimum Aperture	f22
Filter Size	Diameter 62mm
Dimensions	Diameter 2.7" X 3.3"
Weight	13.47 oz.

When using this lens in Nauticam housings use the Nauticam 7 Inch Acrylic Dome Port and Nauticam zoom gear #36045 for Olympus 12-40mm.

---
