Nauticam NA-S1RII Underwater Housing for Panasonic Lumix S1R II Camera
Introducing Nauticam NA-S1RII Underwater Housing for Panasonic Lumix S1R II Camera

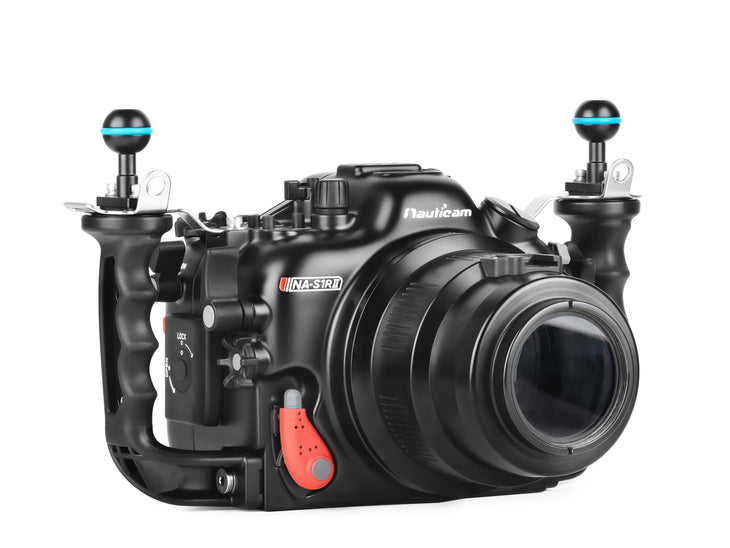

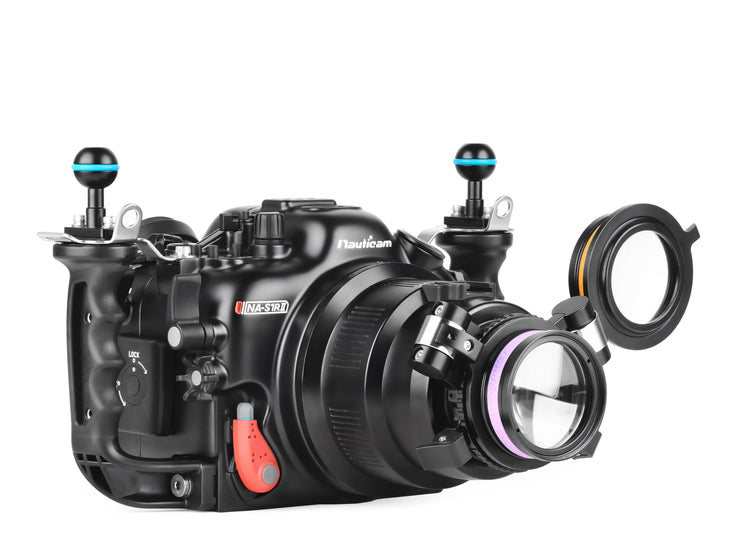

The Nauticam NA-S1RII is a high-quality aluminum underwater housing designed for the Panasonic S1R II. The housing provides excellent ergonomic access, providing finger tip access to all of your essential controls for exposure, playback, zoom/focus, shooting, and more.

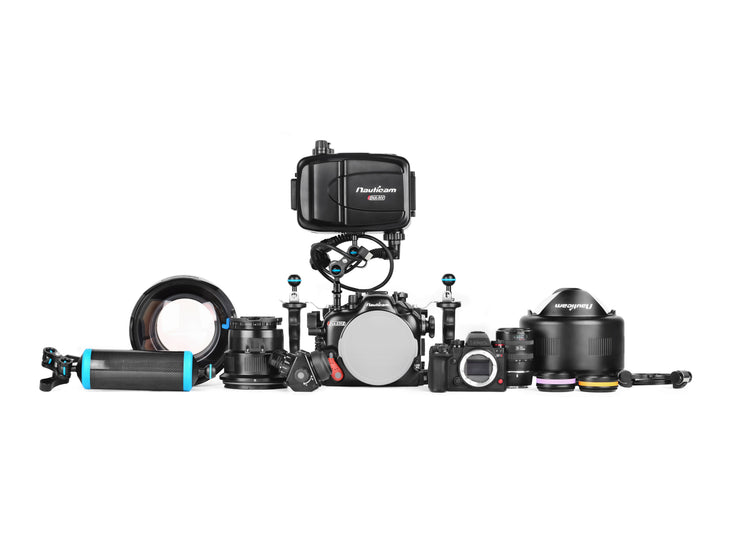

When combined with Nauticam’s extensive line of Water Contact Optics and accessories, the opportunities for capturing unique underwater images and videos are truly endless.
Lens Support & Advanced Optics

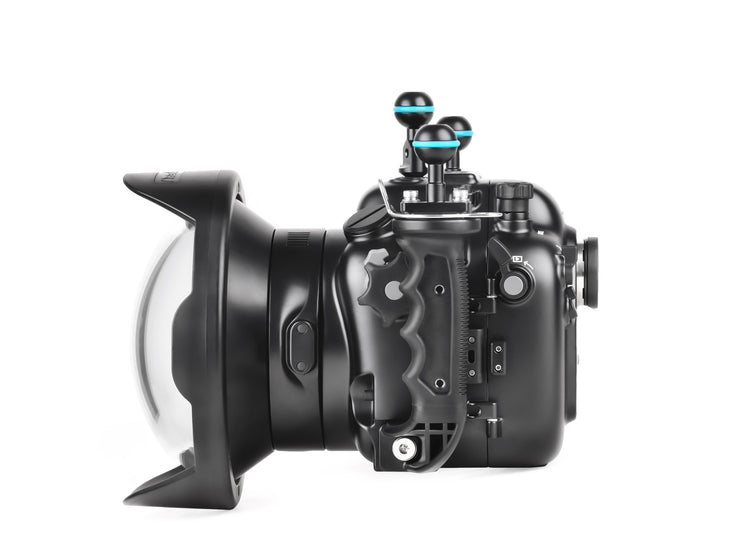

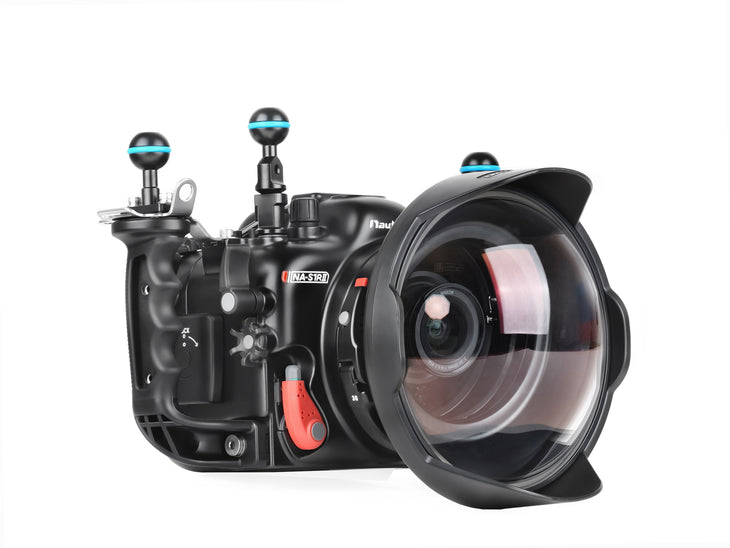

The housing is built around Nauticam's N120 port system, with an assortment of dome ports, flat ports, and water contact optics available to support a wide variety of lenses. In addition, the NA-S1RII offers full compatibility with existing ports, gearing, and lens configurations from earlier models like the NA-S1R and NA-S1H.
Ergonomic Control Placement

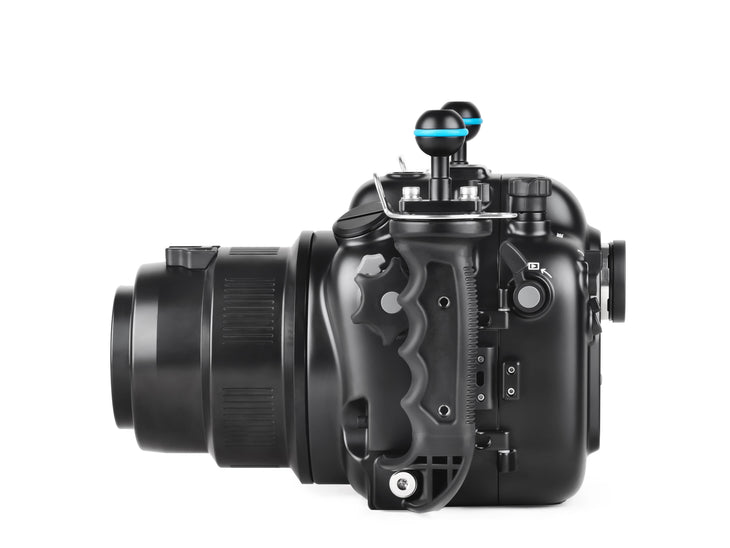

The NA-S1RII is designed for efficient underwater operation, placing key controls along the left and right side of the housing for easy, ergonomic access to all of your essential camera controls.

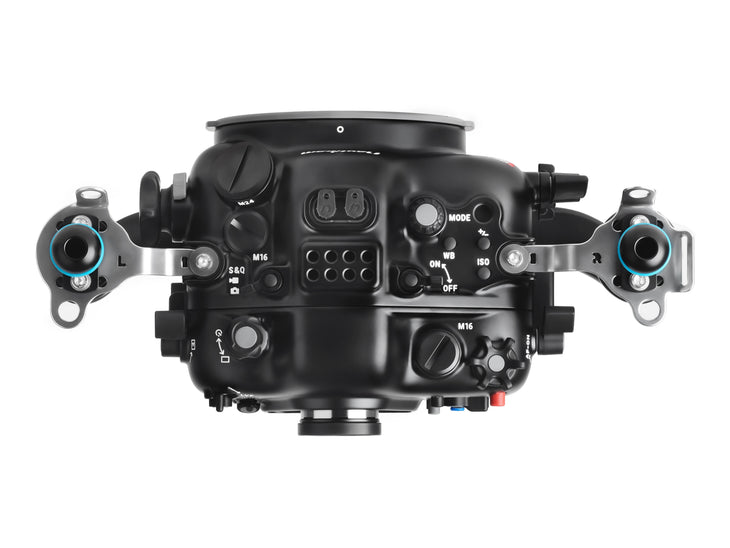

Thumb levers near the left and right handles allow easy access to image review and AF-ON buttons, while additional levers control AF mode and toggle between the EVF and LCD. You'll find a dedicated switch for the S1RII's video/still mode selection, conveniently located on a lever atop the housing for quick underwater switching between both modes.
Optical Viewfinders

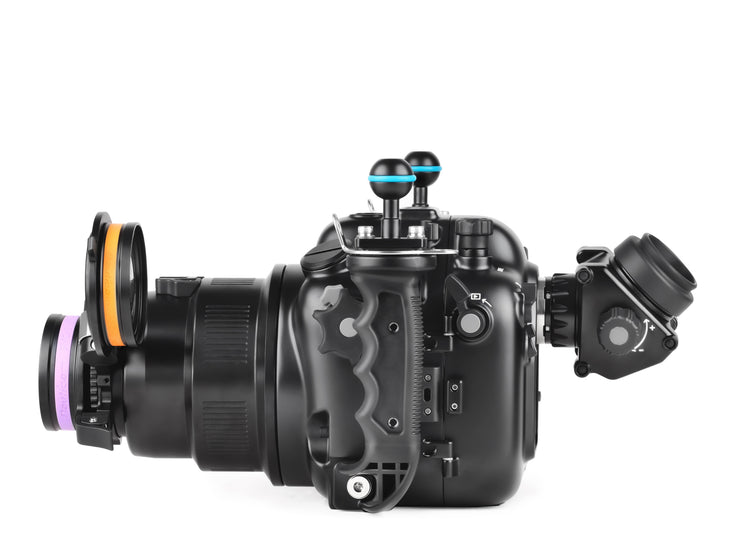

You can take full advantage of Nauticam 0.8:1 optical viewfinders to enhance the EVF found on the S1RII camera. These viewfinder are offer in a straight and angled version, but both offer an enhanced view of the cameras EVF, along with a dioptric adjustment, allowing you to fine tune the viewfinder to your eyesight.
Monitor & HDMI Support

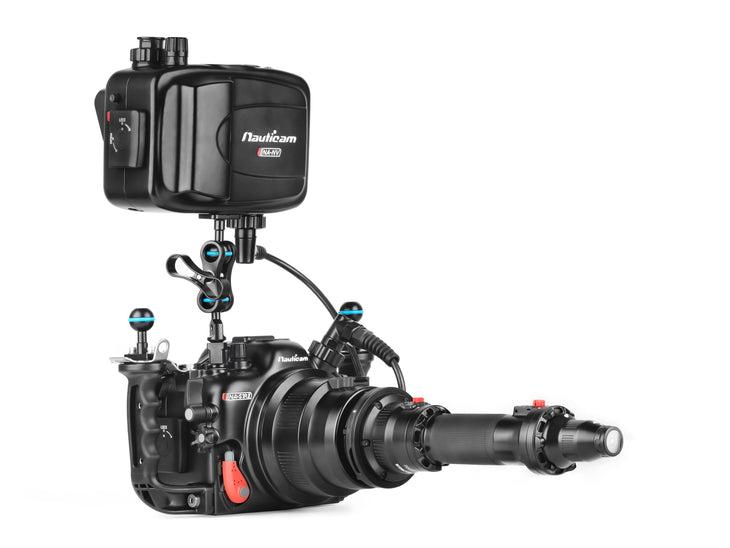

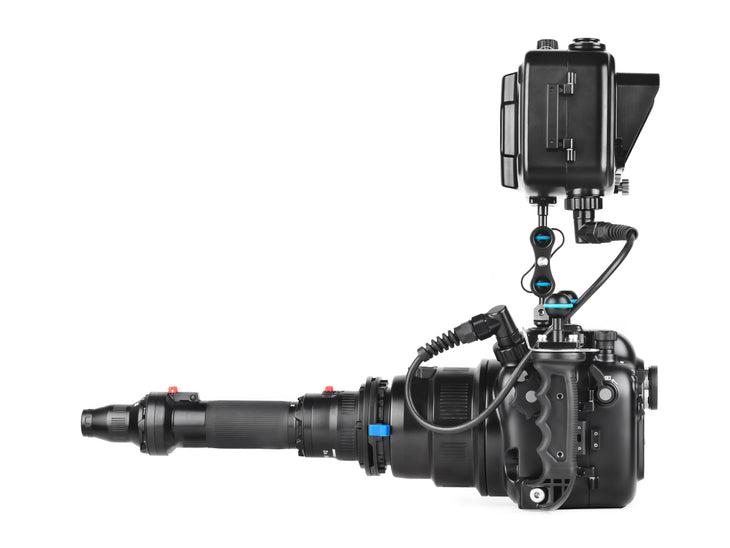

With a large M24 bulkhead, the NA-S1RII can accommodate a wide variety of Nauticam's underwater monitors and housings via their HDMI 2.0 cabling.

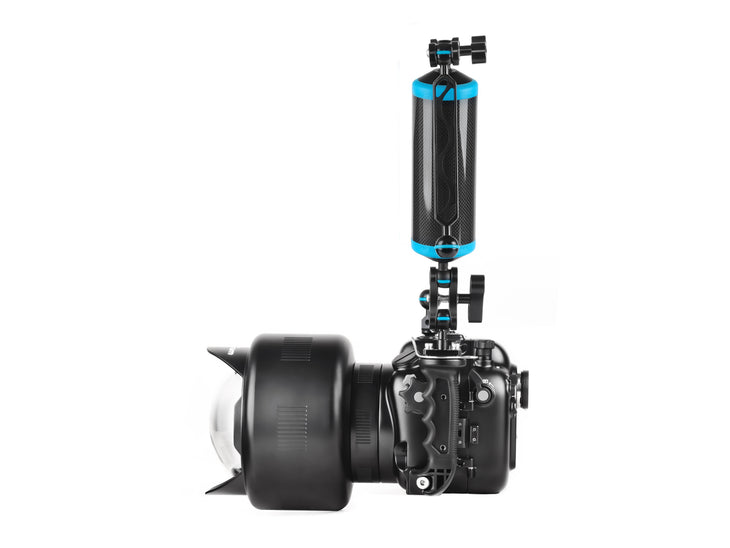

The housing also features multiple 1/4”-20 mounting points for securely attaching components such as top handles, ball mounts, and other accessories.

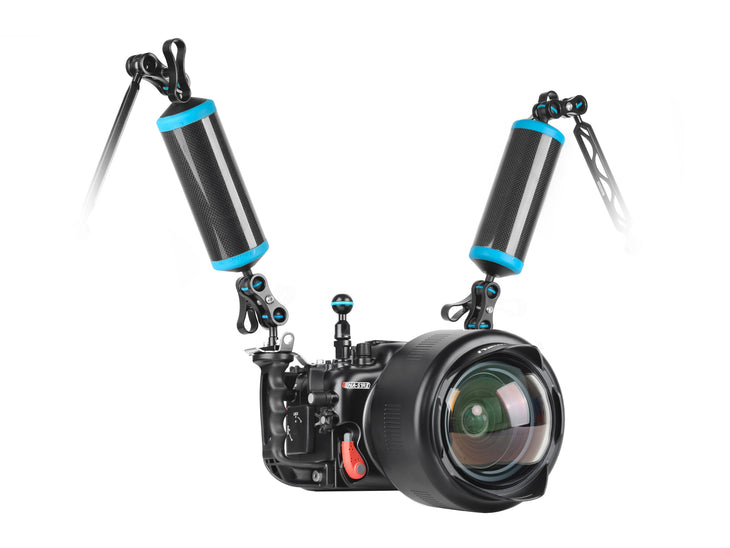

Lighting & Flash Triggering Compatibility
For high-speed manual flash triggering, the NA-S1RII fully supports the Mini Flash Trigger (26305). This device uses LED units to fire external flashes via Nauticam Universal Fiber Optic Cables (26216).
Vacuum Check and Leak Detection
The NA-S1RII includes Nauticam’s vacuum check and leak detection system. When combined with an optional vacuum valve (25625), the system continuously monitors the housings waterproof integrity, using a simple color-coded LED indicator to signal a secure seal or potential leaks. If water intrusion occurs, an audible and visual alert is triggered.
Resources
resources
Instruction Manual PDF Download
What's in the box
- NA-S1RII Housing
- 90137 Spare main housing o-ring
- 2x Plugs for Optical fiber cable mount
- 2x Handles with mounting balls
- Panasonic CR-2032 Battery (for moisture alarm)
- Set of Allen Keys
- Padded housing bag and shoulder strap
Recommended Accessories
Vacuum Valve
- 25625 M16 Vacuum Valve II (Pushbutton Release)
Viewfinder
- 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
- 32214 Nauticam Full Frame Angle Viewfinder 40°/ 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL（40°/ 0.8:1）
- 87214 Reverse Straight Viewfinder for EMWL （40°/ 0.8:1）
- *32212/32214, 87213/87214 are preferred.
Hand Strap
- 28130 Hand Strap for 28113
Optical Trigger
- 26305 mini Flash trigger Fujifilm/Canon/Panasonic
Housing Mount
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 17959 Housing Mounting ball with 1/4'' screws
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 25218 mounting ball set for tripod
Surface USB-PD Power Bank
- 26325 USB-C Bulkhead with USB-C Connector *Can be installed on either M24 or M16.
- 26326 M24-M16 Adaptor for use with 26325 *for use with M24 only.
HDMI Output
1) Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)
Compatible HDMI 2.0 Monitor Options
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
- 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor
2) Required accessories for HDMI 1.4 Cable System (can be installed on either the M24 or the M16 accessory port)
- 25033 Standard HDMI bulkhead with M16 thread (included in 17927)
- 26326 M24-M16 Adaptor for use with 26325
- 25075 HDMI (D-A) Cable in 190mm Length for NA-GH5/G9 (for internal connection from HDMI bulkhead to camera)
Compatible HDMI 1.4 Monitor Options
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2'' HDMI Monitor
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
