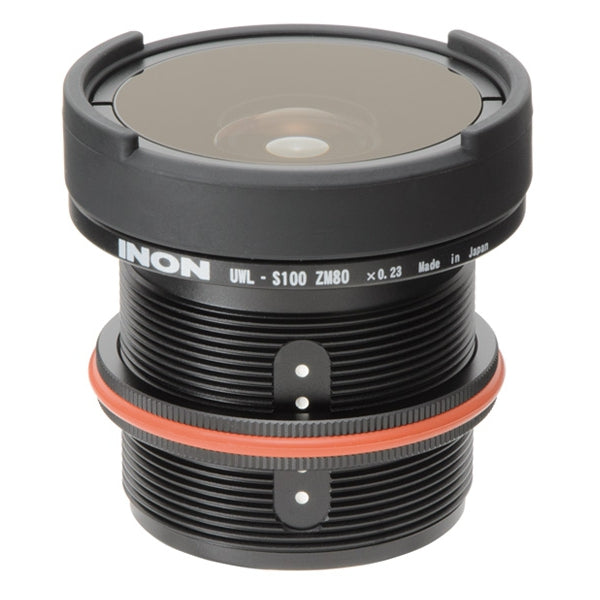

Inon UWL-S100 ZM80 Wide Conversion Lens

SKU # ino.456212143705

$349.00

Inon UWL-S100 ZM80 Wide Conversion Lens

This dual use (land and underwater) wide conversion lens was specially designed for compact cameras which have a lens wider than 28mm (35mm film equivalent).

Many compact cameras with lenses wider than this are not compatible with most wet-mount wide angle conversion lenses.  If your camera is one of these, then the UWL-S100 ZM80 lens overcomes this limitation.  (See the compatibility charts below.) When using this wide angle conversion lens, the compact camera is zoomed in (toward telephoto) to 80mm focal length (35mm equivalent).

The maximum field of view:

  • Underwater: 100°
  • On land:    179.8°  (fish-eye)

Adding the optional Inon Dome Lens Unit II for UWL-S100 ZM80 will increase maximum field of view to 149.8°underwater for semi-fisheye imaging.

The unique optical design also permits this lens to be used for some types of wide angle macro photography.

The lens construction is 4 elements in 4 groups.  The lens surface has a water-shedding coating and inner lenses are multi-coated to suppress reflections and reduce chromatic aberration.

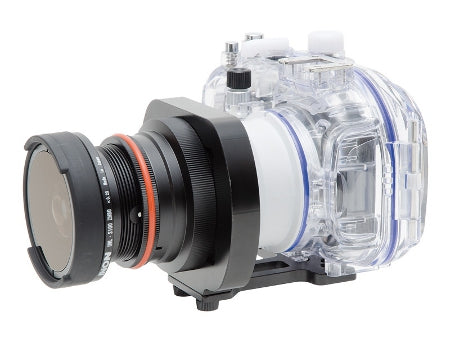

Mounting this lens:
The UWL-S100 ZM80 can be mounted on "LD Mount" systems with the M52-LD Mount Converter.

To mount on 67mm thread mounts, use the Inon M52-M67 Mount Converter or the Nauticam 52mm Coarse Thread to 67mm Fine Thread Adapter.

Normal fine-thread (0.8mm pitch) 52mm to 67mm adapters will not fit this lens.

The lens barrel is threaded to allow adjustment of the lens position to accommodate different master lenses among compact digital cameras.

Do not use this lens with Canon G1X

Canon

Camera Housing Compatible Mount Base Mount
Converter
PowerShot G15 WP-DC48 yes M67 Lens Adapter BaseDC48 M52-M67
PowerShot SX260HS WP-DC46 yes LD Lens Adapter BaseDC46 M52-LD
PowerShot G1 X WP-DC44 NO - -



Panasonic

Camera Housing Compatible Mount Base Mount
Converter
LUMIX TZ30 MCTZ30 yes M67 Lens Adapter Base MCTZ30 M52-M67
LUMIX TZ20 MCTZ20 yes M67 Lens Adapter Base MCTZ20 M52-M67
LUMIX TZ10 MCTZ10 yes M67 Lens Adapter Base MCTZ10 M52-M67
LUMIX TZ7 MCTZ7 yes M67 Lens Adapter Base MCTZ7/TZ5 M52-M67
LUMIX TZ5 MCTZ5 yes M67 Lens Adapter Base MCTZ7/TZ5 M52-M67



FUJIFILM

Camera Housing Compatible Mount Base Mount
Converter
FinePix F600EXR, FinePix F550EXR,
FinePix F300EXR
WP-FXF500 yes M67 Lens Adapter Base FXF500 M52-M67



Sony

Camera Housing Compatible Mount Base Mount
Converter
DSC-WX100 MPK-WH yes M67 Lens Adapter Base WH M52-M67
DSC-WX50 MPK-WH yes M67 Lens Adapter Base WH M52-M67



Specifications:

Outer diameter / Length 67.8mm / 66.4mm (2.7in / 2.6in)
Weight (air / underwater) 296g / approx.145g (10.4oz / 5.1oz)
Lens construction 4 elements in 4 groups
Focal length (air / underwater) infinity / infinity (afocal system)
Magnification 0.23
Maximum incident view angle (air / underwater) 179.8° / 100°
Body material / Finishing Corrosion-resistant aluminum alloy / Rigid black almite
Glass material / Finishing Optical glass / Both side anti-reflection coating
Mount thread diameter / pitch M52 / 1.5
Depth rating 60m / 197ft
