Ikelite TTL

for Olympus OM-D E-M10 Mark II

SKU # ike.6950.12

$1,050.00

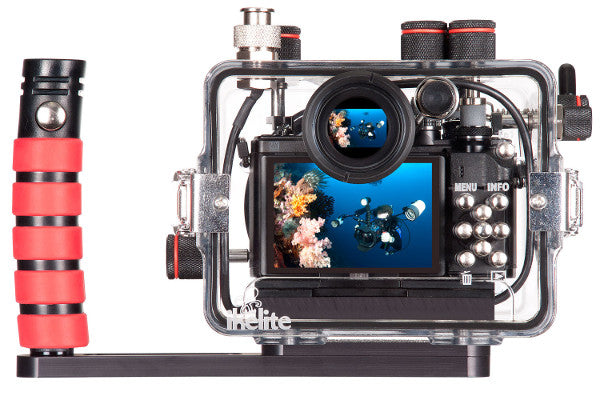

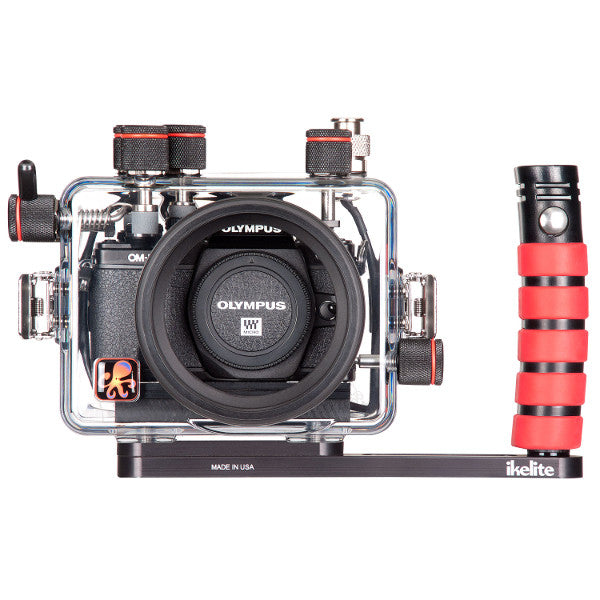

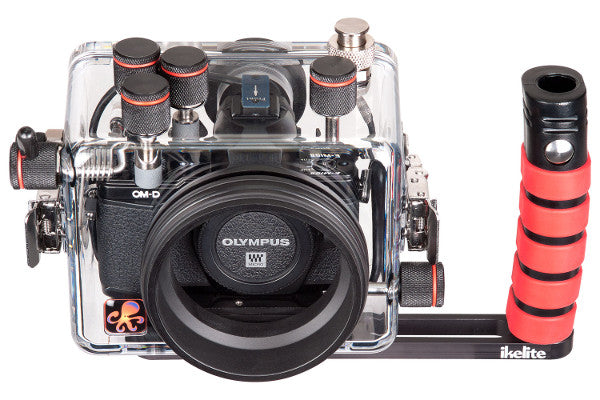

Ikelite TTL Housing for Olympus OM-D E-M10 Mark II

Camera, lens, port, are not included; shown for illustrative purposes only.  A port is required.

Ergonomics

Ikelite packed a lot in a small package, only slightly larger than the Olympus OM-D E-M10 Mark II camera, and just as comfortable to hold.  Set up is a snap with simple, fully front-loaded camera installation.

Materials

Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. Polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.

Like every Ikelite product, this housing is designed, built and tested in the USA.  Ikelite uses locally sourced materials.  Ikelite housings are built by hand and individually tested for fit, function and waterproof integrity. Ikelite backs its products with over 50 years of experience and the best service in the dive industry.

Specifications

  • 200 ft (60m) depth rating
  • All important camera functions are accessible: control not provided for Fn3 button or viewfinder diopter adjustment
  • Ikelite bulkhead connector with built-in TTL circuitry
  • Slightly negative buoyancy in fresh water
  • Actual buoyancy varies depending on choice of lens and port
  • Weight 3.3 lb (1497 g) not including tray, handles or port
  • Dimensions 6.4 x 7.5 x 5.3 in (163 x 190 x 135 mm) including projections

True TTL Exposure

Since the camera is talking directly to the strobe, the camera's built-in flash does not need to fire.  This dramatically increases battery life and virtually eliminates the recycle lag, allowing the camera to be triggered in more rapid succession than with optical-based systems.  When shooting a fast moving object, this make the difference between going home with the shot or just talking about it.

The camera's built-in flash is not usable in this installation.

Strobe Compatibility

  • AF35: no
  • DS50: yes, above serial number 70000
  • DS51: yes
  • DS125: yes, above serial number 5000
  • Ikelite DS160: yes
  • Ikelite DS161: yes
  • DS200: yes, above serial number 7163
  • Sea & Sea strobes: yes, manual flash exposure only
  • Inon Strobes: yes, manual flash exposure only

What's Included

  • Housing
  • Tray with quick release handle
  • Waterproof bulkhead cap
  • Silicone lubricant 1cc tube
  • 1 year manufacturer warranty

Not Included

  • Port
  • Camera
  • Lens
  • Lens Gear

Spare Parts, not included
