Camera, lens, port, are not included; shown for illustrative purposes only.
Please note that a compatible Mirrorless Port is required for waterproof operation of this housing.

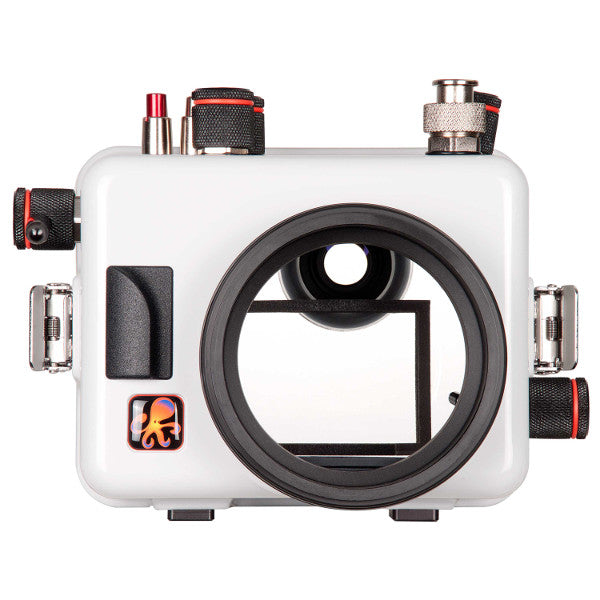

The front-loading camera mounting system makes installation and removal a breeze. The camera mounting plate allows ready access to the battery and memory card, and features a standard 1/4-20 mounting point for attachment to a tripod topside.
An flash TTL circuit is included and fine-tuned to the Panasonic Lumix G7 flash exposure protocol for the most accurate exposure possible. The circuit is powered by the strobe for zero maintenance and no batteries to change. Exposure compensation in TTL mode is supported using the camera's built-in control. At this time, only Ikelite DS strobes are capable of powering the circuitry.
SEA&SEA, INON, and Nikonos strobes will still enjoy fast recycle times and improved battery life, but must be used in manual exposure modes only.
The bulkhead connection has been moved to the top of the housing to keep cords out of your way and reduce strain on the cord ends. A variety of sync cords are available for Ikelite, SEA&SEA, INON, or Nikonos strobes.
The Panasonic G7 camera does not include a pop-up flash. Therefore, strobes can not be fired optically. Electrical sync cord will be required, and is not included.
Waterproof bulkhead cap
Silicone lubricant 1cc tube
1 year manufacturer warranty
200 ft (60m) depth rating
Controls for all important camera functions
Controls are not provided for the Focus mode lever
Ikelite flash bulkhead connector with built-in TTL circuitry
Two 1/4-20 threaded tray mounts with 3-inch (76mm) spacing
Ikelite bulkhead connector with built-in TTL circuitry
Slightly negative buoyancy in fresh water; actual buoyancy varies depending on choice of lens and port
Weight 3.4 pounds (1540 g) not including port
Dimensions 7.8 x 6.0 x 5.9 in (198 x 152 x 150 mm) including projections
ABS-PC, acrylic, and acetyl construction
A port is required and not included with the housing. A lens gear sleeve is required for zoom lenses.
