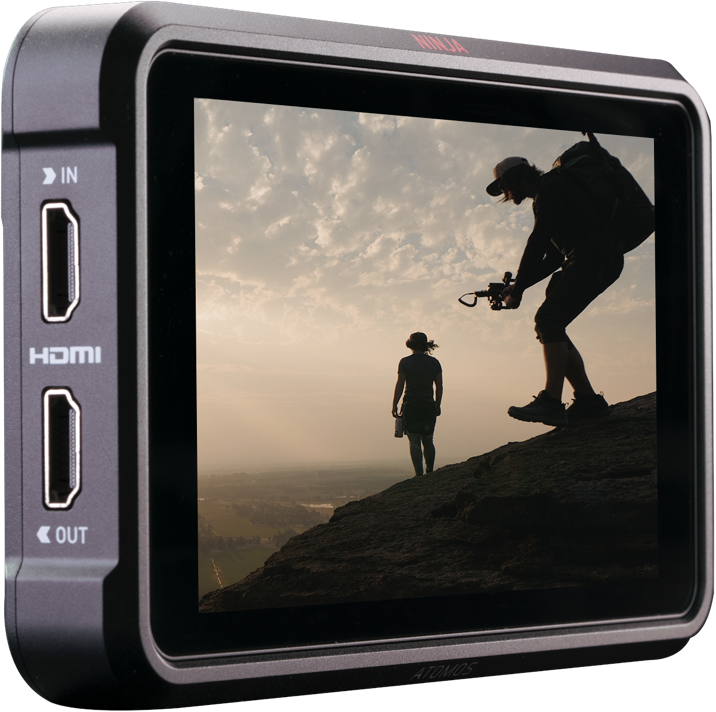

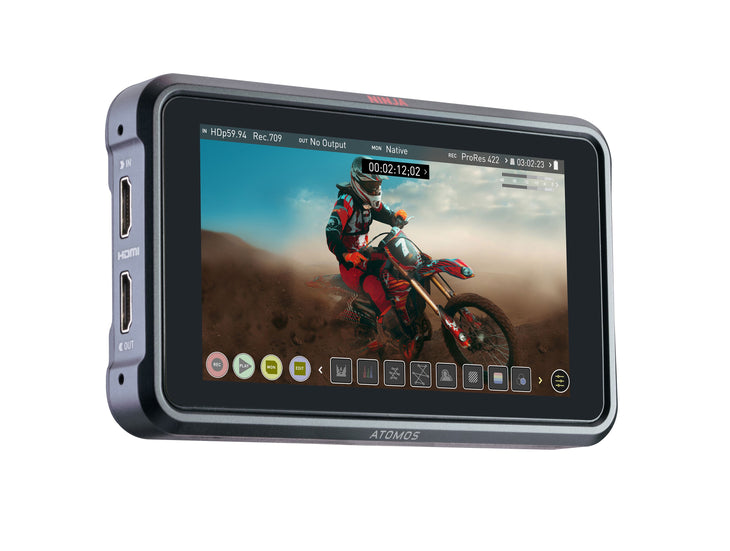

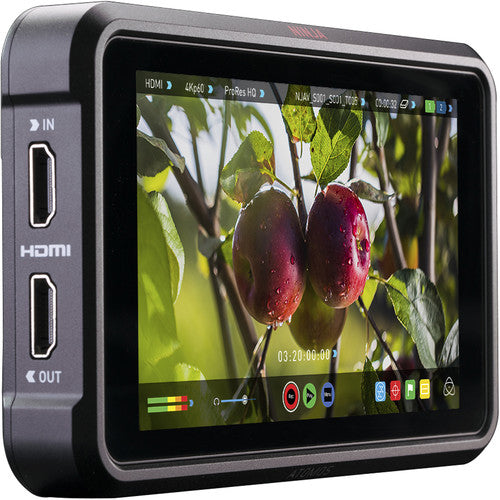

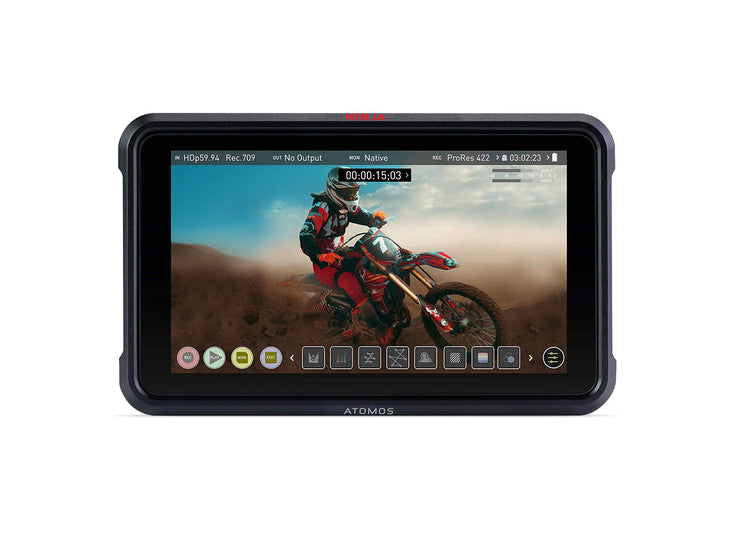

Atomos Ninja V 5" 4K HDMI Recording Monitor

SKU # ato.ATOMNJAV01

Regular Price: $695.00
Instant Savings: $96.00

$599.00





Product Highlights

  • 1920 x 1080 Touchscreen Display
  • 10-Bit Exterior Viewable Monitor
  • 4K HDMI Input
  • 1000 cd/m² Brightness
  • AtomHDR Mode with 10-Stop Dynamic Range
  • 10-Bit 4:2:2 ProRes & DNxHR Encoding
  • Records to Mini SSDs
  • Supports a Variety of Log Formats
  • Single Sony L-Series Battery Slot

In the box:

  • Atomos Ninja V 5" 4K HDMI Recording Monitor
  • Power Supply
  • Master Caddy II
  • Limited 1-Year Warranty (3-Year with Product Registration)

Atomos Ninja V Specs:

Display
Panel Type IPS-Type LCD
Display Size 5.0" / 12.7 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1000 cd/m2
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
Pixels Per Inch (ppi) 427 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
I/O
Video 1 x HDMI Type A (HDMI 2.0) Output
1 x HDMI Type A (HDMI 2.0) Input
Embedded Audio HDMI: 8-Channel
Audio 1 x 3.5 mm Mic/Line Input
1 x 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x Barrel Input
Other I/O 1 x LANC (2.5 mm)
Card Slot None
Format Support
Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50
Video Signal Conversion HDMI to SDI
DCI 4K: 24/25/30/50/60
UHD 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/100/120
1080i: 50/60
720p: 50/60
Recording
Pulldown Conversion 2:2, 3:2
Encoding Formats 3840 x 2160
ProRes 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
Recording Media 1 x 2.5" SSD (SATA III)
1 x AtomX SSDmini (SATA III)
Power
DC Input Power 6.2 to 16.8 VDC
Battery Type 1 x L-Series
Power Consumption 10 W (Typical)
19 W (Maximum)
Mounting
Mounting 2 x 1/4"-20 Female
General
Material of Construction Aluminum, Polycarbonate
Dimensions (W x H x D) 5.94 x 3.6 x 1.22" / 151 x 91.5 x 31 mm
Weight 11.3 oz / 320 g
Packaging Info
Package Weight 2.385 lb
Box Dimensions (LxWxH) 7.85 x 5.8 x 4.15"
