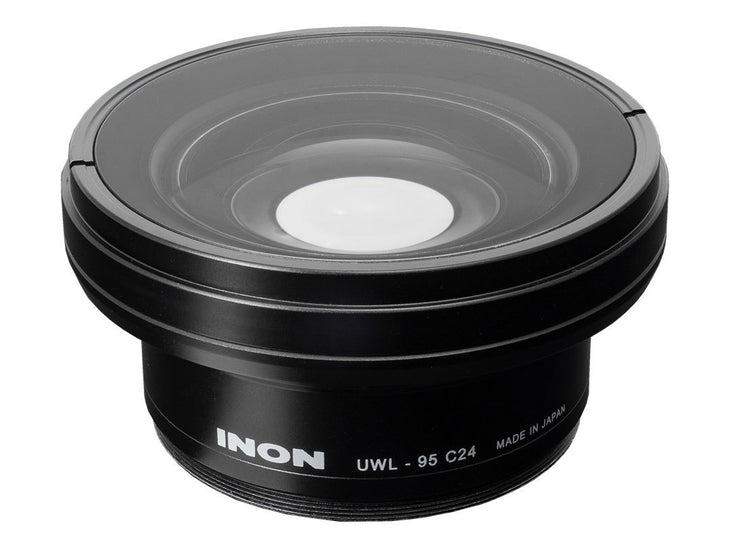

Inon UWL-95 C24 M67 Type2 Wide Conversion Lens

Maximum view angle is 95° underwater/159° in air (*1).  Combination with optional super wide option Dome Lens Unit IIIA/Dome Lens Unit IIIG further increases view angle underwater up to 141° (*1).

Totally renewed optical design effectively suppresses flare/ghost even in backlit condition to provide sharp and high quality image. The UWL-95 C24 is designed to support a camera of large 1.0 type sensor with bright master lens. Using the UWL-95 C24 can dramatically reduce minimum focusing distance enabling to get subject on the lens in focus both on land and underwater.

The lens mount is versatile M67 or M52 mount. The M67 version has two types either of Type1 or Type2 having different threaded thickness to bring out optimal performance of different combined master lens. Optional M67 Type1 Screw Ring for UWL-95 C24 or M67 Type2 Screw Ring for UWL-95 C24 is available to purchase making it easy to modify from M52 Mount to M67 Mount or convert original M67 type to the other type(*2).

As of April 2020, compatible camera system is



・UWL-95 C24 M67 Type1                  Sony RX100M3, M4, M5, M5A/MPK-URX100A

・UWL-95 C24 M52                 Olympus TG-6/PT-059, TG-5/PT-058, TG-3,4/PT-056



(*1) Actual angle of view differs depending on camera/housing to use.

(*2) Depending on usage, original screw ring could be anchored due to salt build-up.  If you find any difficulties to remove original screw ring, do not proceed self modification and consult your purchasing dealer.

UWL-95 C24 M67 Type1/Type2

・Outer diameter                               φ90.0 mm/3.5 in

・Length                                              48.2 mm/1.9 in

・Weight                                              [air] 618 g/21.8 oz  [underwater] approx.396 g/14.0 oz

・Mount system                                  INON M67 Mount

・Depth rating                                     60 m/196.9 ft

・Material                                             Corrosion-resistant aluminum alloy

・Surface finishing                              Rigid black alumite

・Glass/Coating                                   Optical glass/both side anti-reflection coating

・Lens construction/magnification   3 groups 4 elements/0.63 (aforcal)

・Max. view angle (*1)                        [underwater] approx. 95°, [air] 159.0°

---
