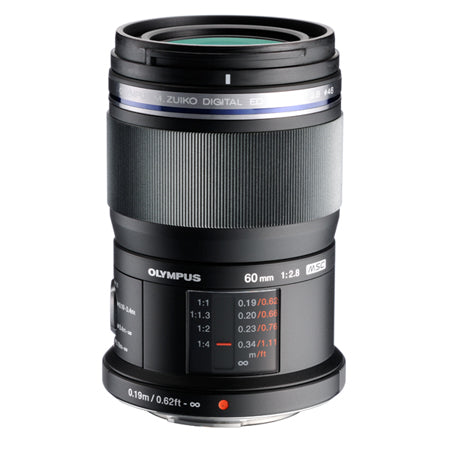

Olympus M.Zuiko Digital ED 60mm f/2.8 Macro Lens

SKU # oly.V312010BU000


This high quality macro lens is ideal for shooting a wide range of conditions, including applications such as landscape and portrait shooting.  Featuring a closest focusing distance of 7.4 inches, this lens has excellent close-up capability with 1X magnification, and dust-/splash-proof construction.  The lens incorporates 13 lens elements in 10 groups with extensive use of special glass materials such as ED (Extra-low Dispersion), HR (High Refractive index) and E-HR (Extra-High Refractive index) elements to completely eliminate the chromatic aberrations that can be noticeable with telephoto macro lenses.

The M.ZUIKO DIGITAL ED 60mm f2.8 Macro incorporates Olympus's exclusive MSC (Movie & Still Compatible) mechanism, which is based on a floating-type inner focusing system with three drive systems resulting in no change in the overall lens length during autofocusing.  Other features such as focus limit switching and a shooting distance/magnification indicator window enhance macro shooting control and precision.

Focal Length     60mm (35mm equivalent focal length 120mm)
Lens construction     13 elements in 10 Groups - ED lens, 2 HR lenses, E-HR lens
Dust & Splash Proof     Yes
Angle of View     20 Degree
AF System     High-speed Imager AF (MSC)
Closest Focusing Distance     0.19m
Maximum Image Magnification     1.0x (35mm equivalent Maximum Image Magnification 2.0x)
Minimum Field Size     13 x 17mm
Number of Blades     7 (Circular Aperture Diaphragm)
Maximum Aperture     f/2.8
Minimum Aperture     f/22
Filter Size     Diameter 46mm
Dimension     Diameter 56 x 82mm
Weight     185g
Box Contents     Lens Cap (LC-46), Lens Rear Cap (LR-2), Instruction Manual, Olympus Worldwide Warranty Card

Ports for Olympus Housings:

This lens will NOT fit in Olympus housing ports with lights (PT-EP05L, PT-EP06L, etc.)

Reef Photo has tested this lens in Olympus housings with the Olympus standard port, and found it to be compatible.

A more optimum solution is to use the combination of Zen Underwater FP-100-EP Port (for Panasonic 45mm) and a Zen Underwater 25mm extension ring for Olympus PT-EP housings

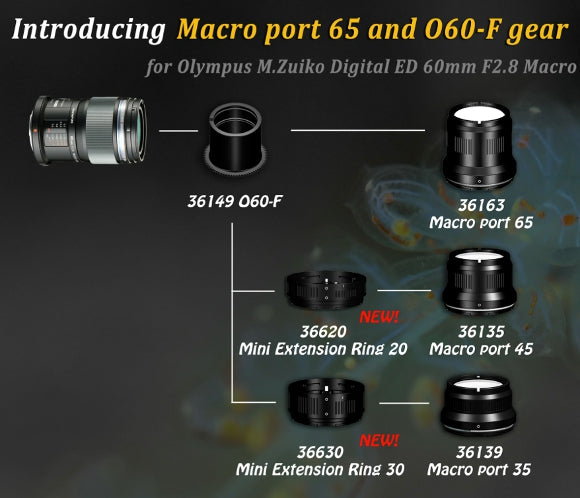

Ports for Nauticam Housings:

This lens will give best performance when used with one of the following port or port/extension combinations:

This lens may also be used with the Nauticam Flat Port 72.  This port is also recommended for the Panasonic 14-42mm lens.
