Specifications
|

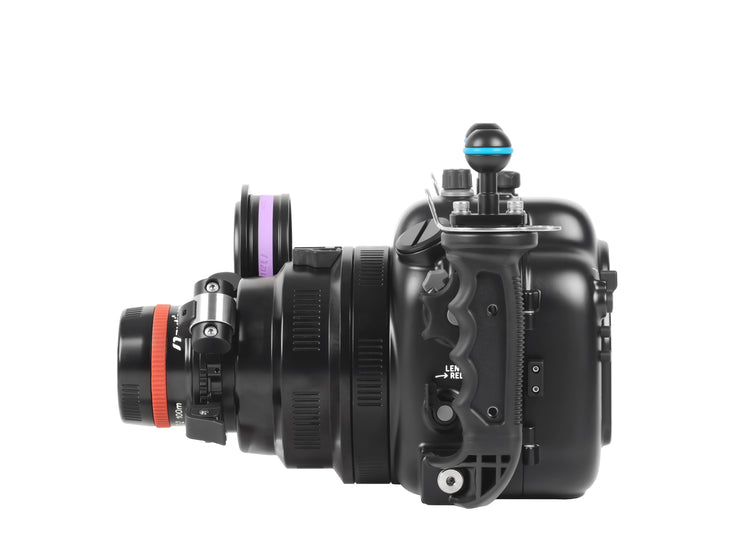

NA-Z5II Housing (Nikon Z5 II)
|
Depth Rating
|
100 m (330 ft)
|
Construction
|
Hard-anodized aluminum, stainless-steel brackets
|
Dimensions (W×H×D)
|
340×200×127 mm
|
Weight (housing only)
|
~2.7 kg (6.0 lbs)
|
Port System
|
Nauticam N120 Port Mount
|
Lens Support
|
Nikon Z-mount; Nikon F-mount via FTZ adapter
|
Vacuum System
|
Pre-installed Nauticam vacuum check with LED display
|
Control Layout
|
Ergonomic left/right handles, full camera control access
|
Mounting Options
|

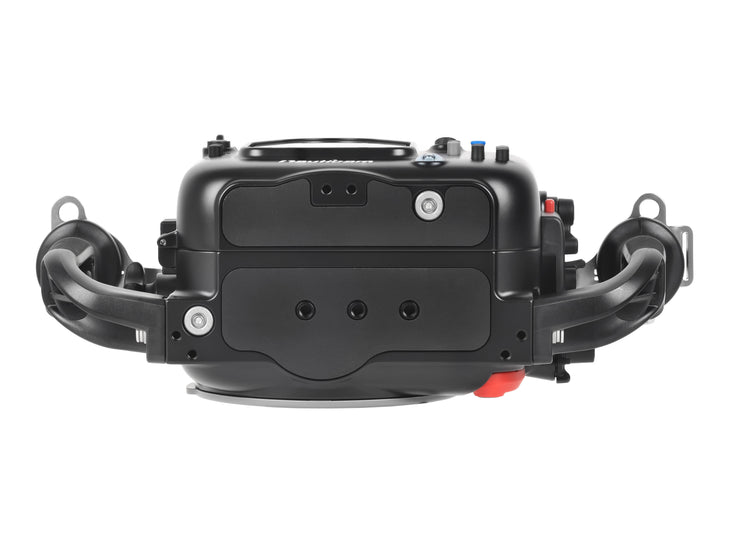

Top: 1/4-20, M10, M5 threads; Bottom: tripod ball
|
Flash Trigger
|
Optical or electrical via bulkhead/hotshoe
|
|
|
Build Quality & Design
Nauticam is renowned for it superb build quality and ergonomic design, and the NA-Z5II upholds this reputation.

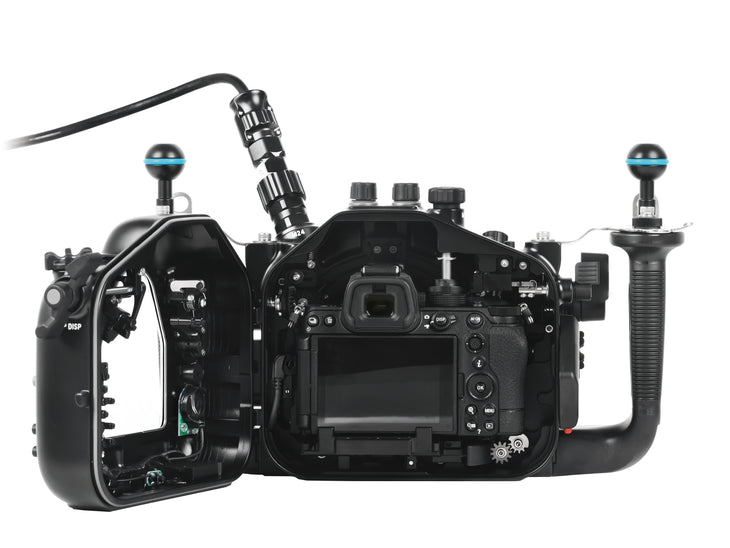

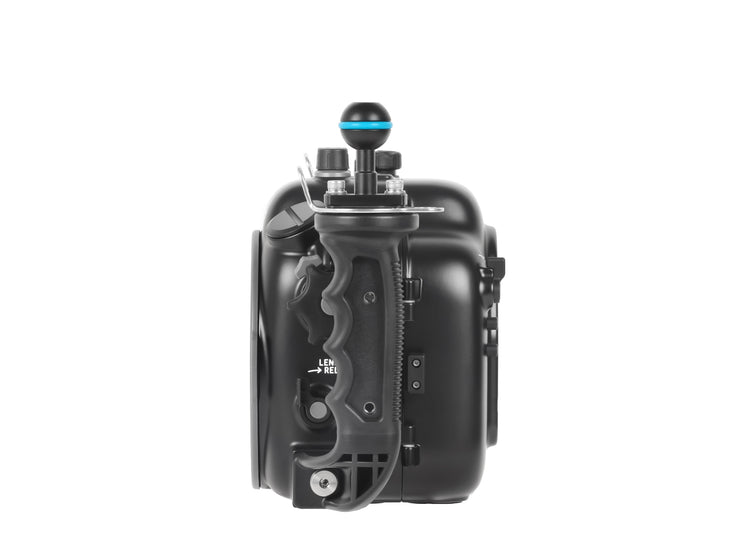

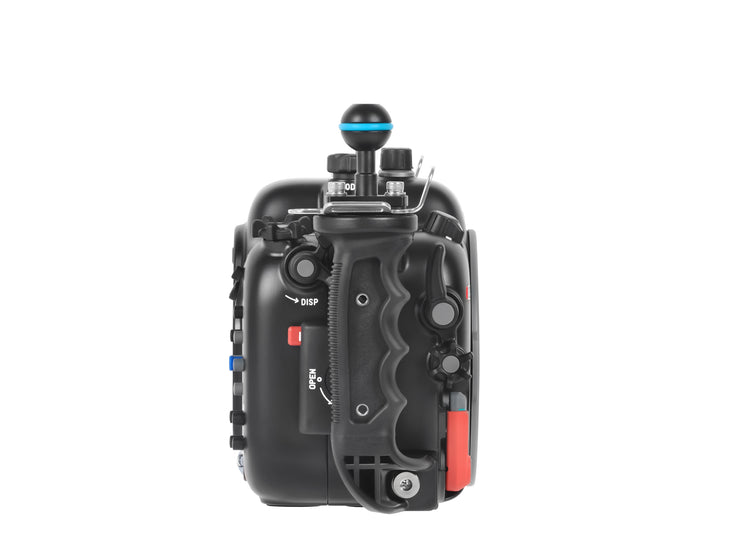

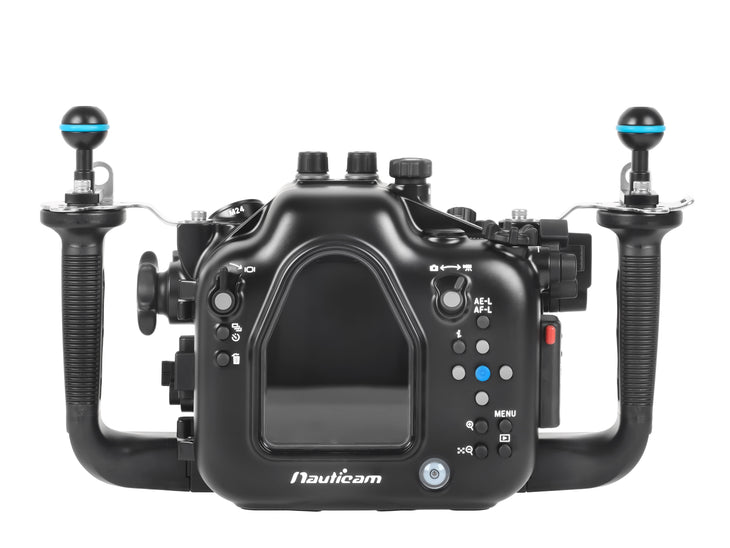

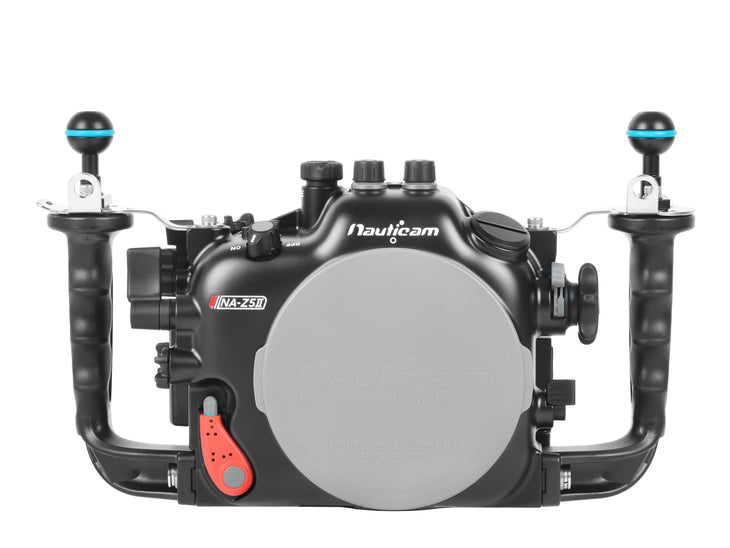

All essential camera controls (shutter, dials, buttons, AF-ON, video record, etc.) are accessible via large levers and wheels on the left and right side handles. Nauticam emphasizes “Mission Control” ergonomics, placing essential controls for focus, exposure, and shooting right at your fingertips . Clear labeling on the housing helps identify each control for the user while in the water.
With it's 100 m depth rating, wide variety of support lenses, easy setup/installation, and large selection of optional accessories the housing is designed to offer the best possible user experience for any underwater photographer, and in the most demanding underwater environments.
Port and Accessory Compatibility

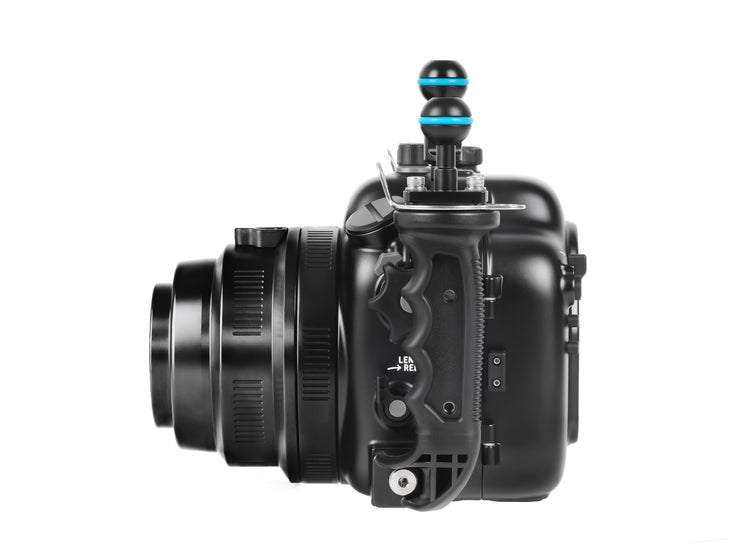

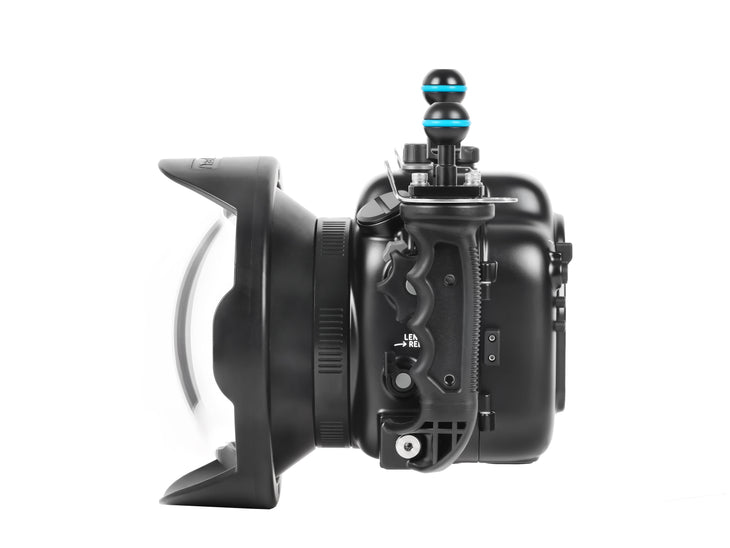

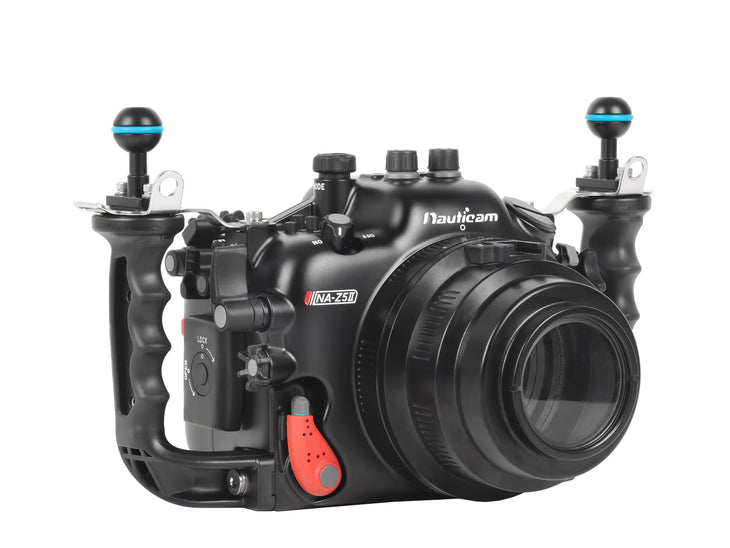

The NA-Z5II works with Nauticam’s extensive ecosystem of N120 ports, which offers full zoom/focus support of Z5II native Z mount lenses, along with full support of FX mount lenses using the Nikon FTZ Adapter.

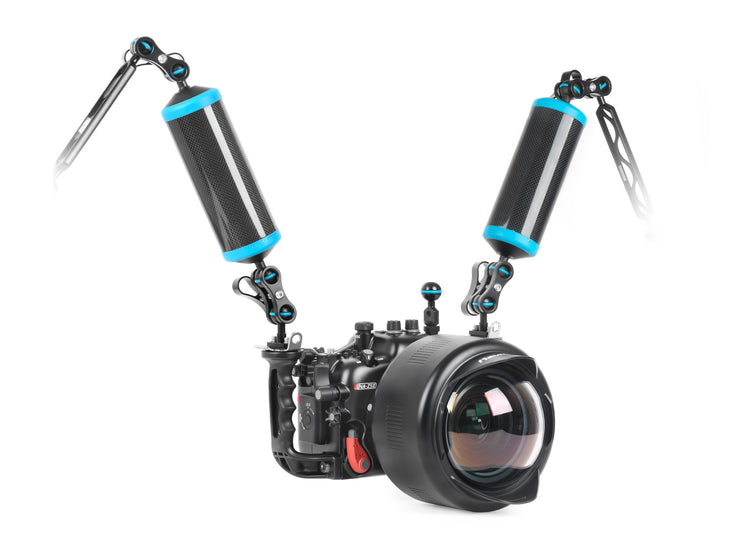

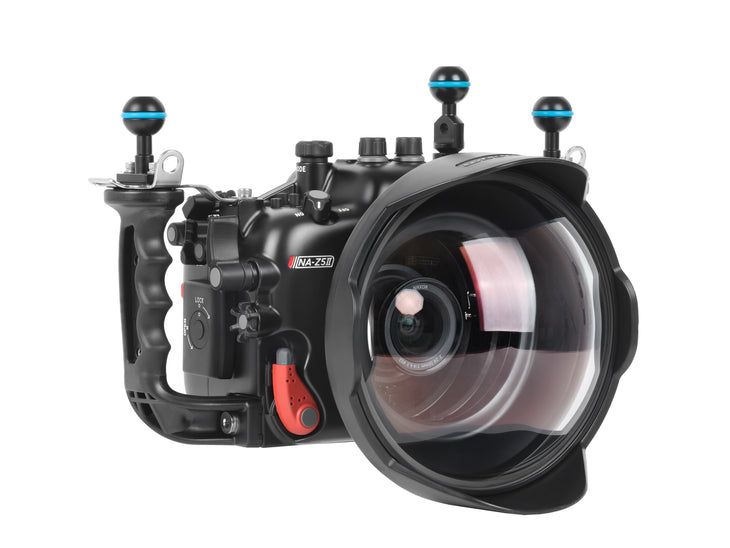

You can also take full advantage of Nauticam's wide range of water-contact optics such as the WWL-C, WACP-1 & WACP-C, FCP, SMC's and many more. These water contact optics offer superior image quality compared to traditional camera lens & port combos, along with unique benefits for shooting everything from underwater wide angle images, to super macro images.
Enhanced Viewfinder Compatibility

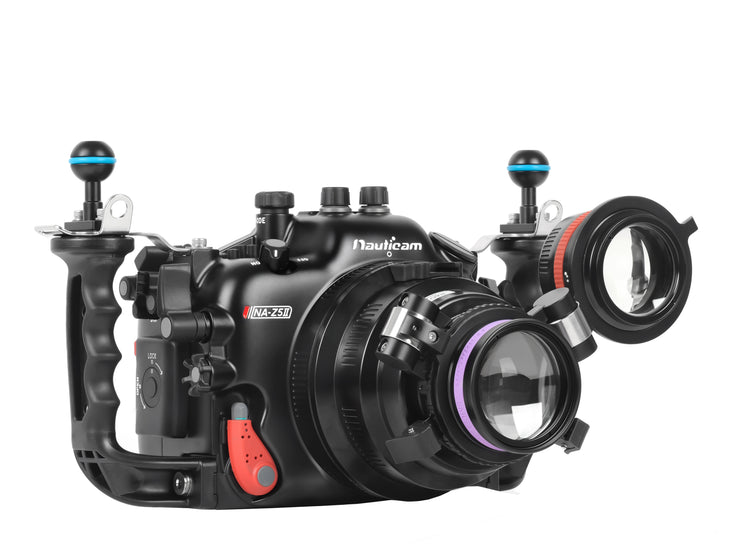

Aside from the Z5II's built-in electronic viewfinder & LCD, Nauticam’s full-frame optical viewfinders can be mounted via the optional LCD window kit . These provide an extra 20–40% magnification for a larger, enhanced view of the camera's electronic viewfinder making it much easier to see critical focus and compose your images properly. They're available in both a angled and straight orientation based on your preference.
Underwater Lighting Compatibility
The NA-Z5II accepts Nauticam’s optical fiber trigger for optical triggering of strobes. A manual trigger (PN 26350) or TTL & HSS trigger (PN 26601) are available. For those that prefer an electrical sync option, Nauticam offers a electronic bulkhead and hotshoe trigger kit (PN 25013).
Accessory Options

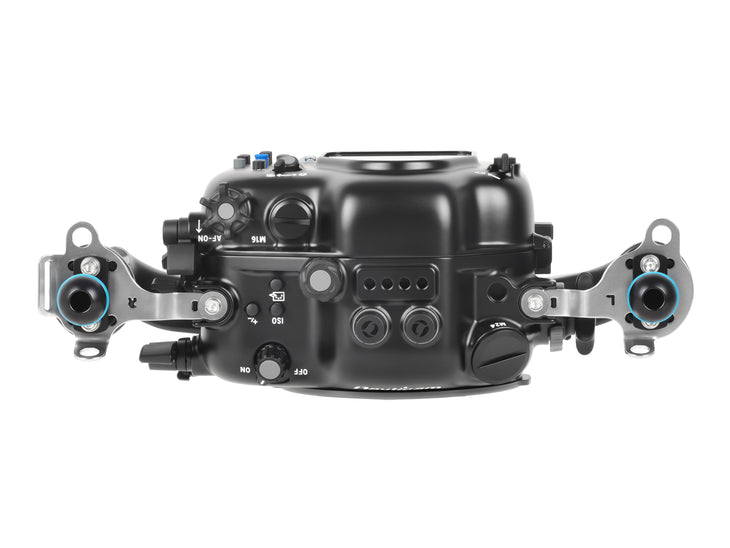

The top of the housing has threaded 1/4-20, M10 and M5 threaded holes for mounting balls (M10 ball PN 25224 and M5 ball PN 25228). All of these can be used for attaching additional accessories such as lighting, action cameras, monitors, and more.
The housing includes Nauticam's vacuum electronics and moisture alarm system pre-installed. When combined with an optional vacuum valve (PN 25625), a color-coded LED panel continuously monitors seal integrity and moisture. If the seal is lost or moisture is detected, the LED panel alerts the diver via blinking colored LED along with an audible alarm. More importantly, the vacuum allows you to perform a seal check to ensure the entire housing is ready to dive, before entering the water, providing some peace of mind that you've assembled the entire rig properly.

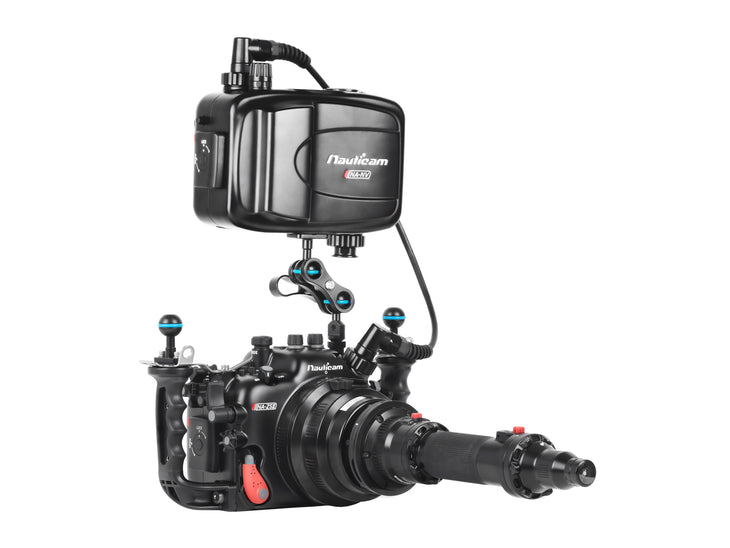

M24 and M16 bulkheads are located along the top of the NA-Z5II housing and are available for installing HDMI or USB-C bulkheads. The HDMI Bulkeheads offer full compatibility with Nauticam's lineup of underwater monitors/housing such as the Ninja V, SmallHD Ultra V, and all new T7 monitors. The USB-C Bulkhead (PN 26325) is an excellent add-on, as it provides an easy & hassle free option forcharging and offloading media from the camera at the surface, without having to open the housing at all.
Resources
User Manual PDF Download Coming Soon
What's in the box:
- NA-Z5II Housing
- 90137 Main Housing O-Ring
- N120 Port Cap
- 2x Optical Bulkhead Caps
- 2x Handles with mounting balls and 2x handle brackets
- Pre-installed Leak Detection & Moisture Alarm with CR-2032 Battery
- Spare Main Houisng O-ring, O-ring remover and Nauticam Lubricant
- Set of Allen Keys
- Manual Instruction Card
- Padded Housing Bag and Shoulder Strap

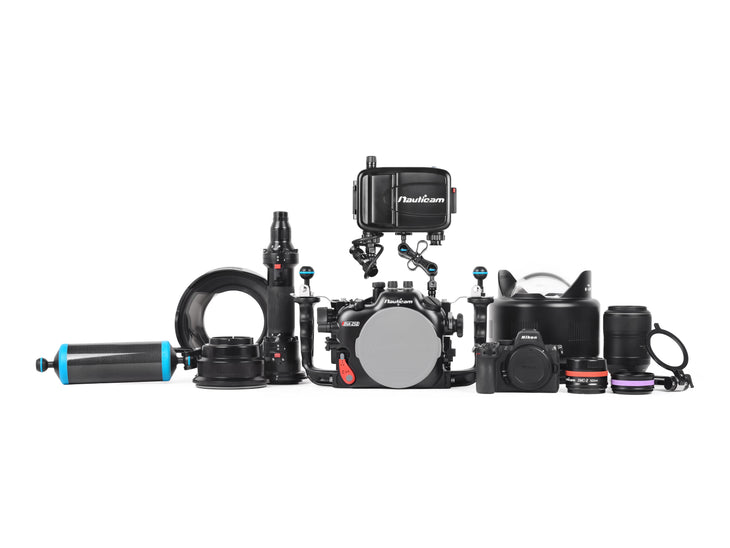

Recommended Accessories
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
-
25224 M10 strobe mounting ball for housing (with hole for using lanyard)
- 25228 M5 strobe mounting ball for housing
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- 28130 Hand Strap for 28113
- 28123 Pair of handles - size S (10mm closer to housing)
- 25413 27cm lanyard with 2 snap hooks
- 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
- 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1
Surface USB-PD Power Bank
- 26325 USB-C Bulkhead with USB-C Connector
- 26326 M24-M16 Adaptor for use with 26325
HDMI Output
Required accessories for HDMI 1.4 Cable System
Compatible Monitor Options
- 16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables) 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is Required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033,25038,25100
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)
*25082 is Required for use with 17922 monitor.
Monitor / Tripod Mounting System
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
Wet Lenses
Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wide-angle
- 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
