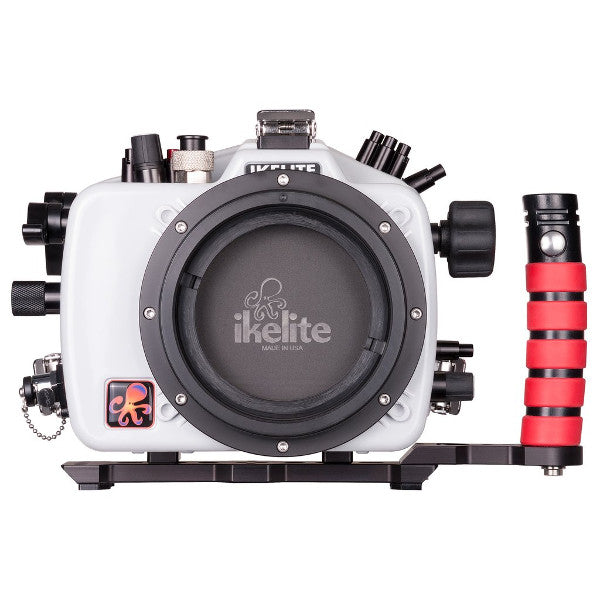

Ikelite 200 Dry-Lock Housing for Nikon D850
Required lens port, camera, and lens not included. Shown for illustrative purposes only. DL series lens port is required, not included.
- Access to all important camera functions
- Comfortable rubber grips
- Glass optical viewfinder enhanced for underwater
- Visible o-ring seals
- Corrosion-proof solid body
- Ports available for most popular lenses
- Lens zoom gears included with housing
Rear View
Control identification is laser engraved into the back of the housing.
200ft (60m) depth rating
Made by divers in the USA
TTL Flash Exposure
The Ikelite 200 DL housing for Nikon D850 as shipped supports manual flash control.
Add the optional Ikelite NT2 Nikon TTL Hotshoe, #46061, Nikon TTL Converter with Ikelite Plug #4301.3, and a compatible Ikelite stobe for excellent, true, TTL flash control.
SEA&SEA, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

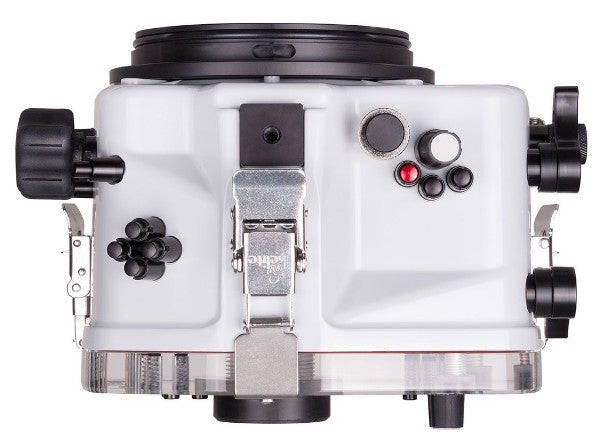

Top View
Vacuum System
A vacuum valve is included. With the optional vacuum pump with gauge, the housing seal can be tested before diving to give you confidence that the system has been properly assembled and all o-rings are intact.
|
|

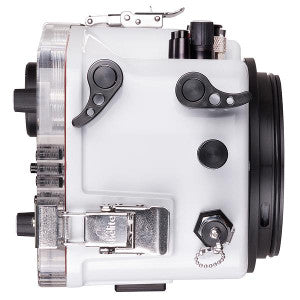

Right Side View
With No Port Installed |

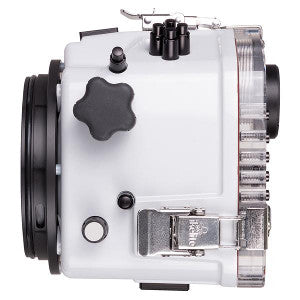

Left Side View
With No Port Installed |

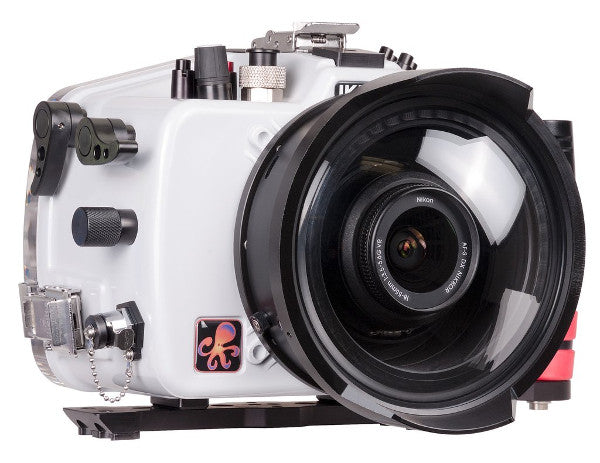

With Dome Port Installed (not included.)
Reliable performance
A clear view of the camera and o-ring seals facilitates easy assembly and operation. Heavy-duty polycarbonate construction is durable and corrosion-free to ensure performance in even demanding conditions. Lens ports can be removed and replaced quickly with a simple positive locking system which provides visible assurance when the housing is assembled properly.
| Controls |
All important camera functions are accessible
Controls are not provided for: release mode dial lock release, AF mode button, focus mode selector, Pv button, Fn button, diopter adjustment control, focus selector lock, Eyepiece shutter lever, sub-selector |
| Width |
231mm including controls |
| Height |
178mm including controls |
| Depth |
165mm including controls |
| Weight |
2.2kg without tray & handles |
| Depth Rating |
60 meter (200 feet) |
| Buoyancy |
Slightly negative in freshwater |
| Depth Rating |
200ft (60m) |
| Built-in Flash |
No |
| Strobe Connection |
Ikelite digital TTL electrical bulkhead |
| Tray Mounting |
12-24 thread with 3in spacing (76mm) |
| Main O-Ring |
0132.61 |
| Port O-Ring |
0132.45 |
| Spare Parts |
5020 Silicone lubricant in 4 1cc tubes
5512.69 O-Ring kit
0200.91 Housing body cap
9104.5 Electrical bulkhead cap |
What's Included
- Housing
- Tray with left quick release handle
- Port hole cover
- Waterproof bulkhead cap
- Zoom grear retainer
- 5509.27 Universal zoom set up to 2.8-inch diameter
- 5509.28 Universal zoom set 2.8 to 3.0-inch diameter
- Silicone lubricant 1cc tube
- Control & push button tip accessory package
- 1 year manufacturer warranty
