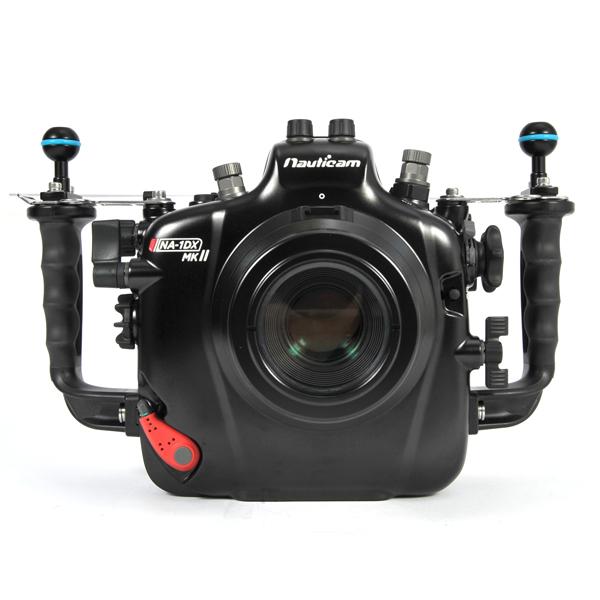

Nauticam NA-1DXII Underwater Housing for Canon EOS 1DX Mark II Camera

Flash Firing

The NA-1DXII Housing comes standard with twin Nikonos style flash bulkheads for electrical strobe triggering. An optional hot-shoe mounted LED flash trigger is available for rapid fire optical triggering (manual power) as well as the new TTL Flash Trigger which enables automatic flash triggering.

Accurate automatic TTL flash exposure has been a favorite feature of Nauticam photographers using cameras with pop up flashes, and we are excited to bring this advanced flash control functionality to the NA-1DXII housing.

Powered by a single Canon NB-13L rechargeable battery, the TTL Trigger provides approximately 150 full power flashes.

Optical TTL Strobe Compatibility:
Inon S-2000, D-2000, and Z-240
Sea & Sea YS-D1, YS-D2, and YS-01

Ease of Use

No system is easier to assemble or break down. The camera drops into the housing with a quick release camera tray. No controls need to be preset, as housing functions for dials and switches align automatically (on/off, af-m, still photo/video). The large 120mm housing port opening allows even the largest popular pro Canon wide angle lens (11-24mm f/4) to be used, and the camera can even be mounted in the housing with this large lens attached.

Viewfinders

The standard optical glass viewfinder is very good and travel friendly, but many photographers prefer the ease of a magnified viewfinder with adjustable diopter. Nauticam produces a “straight” 180º enlarging viewfinder and a 45º angled enlarging viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high quality optics, and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in less than 30 seconds without using tools. Exceptional composition and focus accuracy have never been more accessible.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-1DXII as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

What's In The Box?

• NA-1DX Housing
• Spare Main O-ring
• O-ring Remover
• CR-2450 Battery (for Moisture Alarm)
• Lubricant
• Set of Allen Keys
• Canon Hotshoe Plug to Dual Nikonos Connectors
