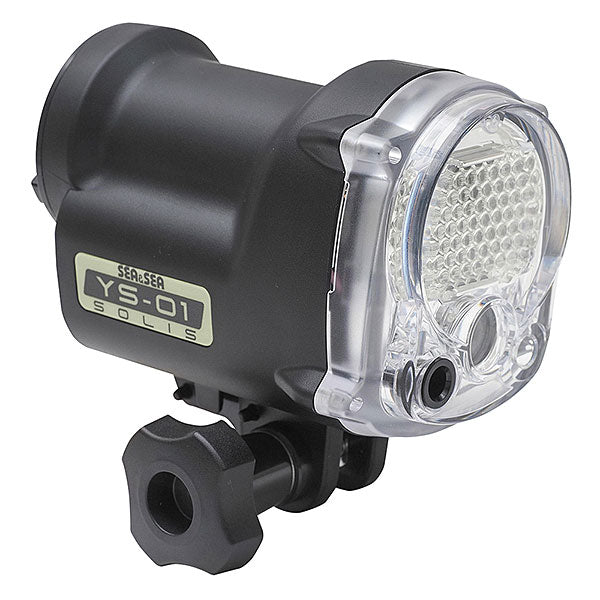

The YS-01, the best-selling strobe in its class has been redesigned, boasting improved performance.
Equipped with the same DS-TTL ll circuitry as superior Sea&sea’s high-end models
The DS-TTL ll circuitry helps emit the correct amount of light automatically based upon light intensity from the camera’s onboard flash. The strobe allows you to adjust light intensity stronger or weaker from programmed standard exposure. With this function, even an inexperienced underwater photographer can instinctively control the desired amount of light. Example: If you are using two YS-01 Solis strobes, one on the right and the other on the left, and there is white soft coral to the right of your photographic subject, you can just delicately lessen light intensity from the strobe on the right alone by just turning the light level control to minus. With the improved circuitry, you can realize the desired lighting for all your underwater images in a breeze.
Increased light intensity from the target light
Compared with the predecessor model, lighting intensity of the YS-01 Solis’ target light is 40% stronger increasing the visibility of the light axis has improved helps you understand the position of the strobe position more accurately.
Superior light distribution and wide beam angle

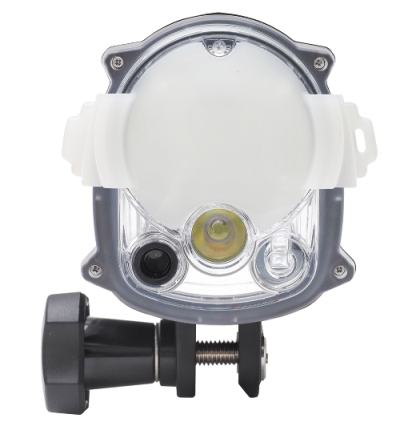

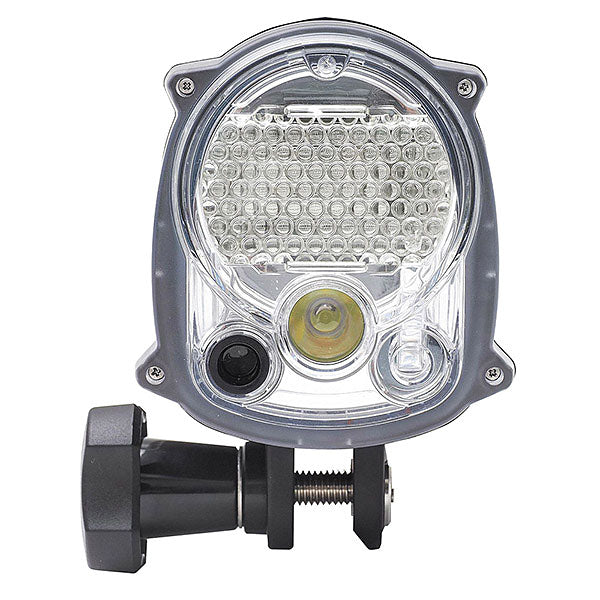

Because of the exclusively designed prism lens, the YS-01 Solis realizes a wide beam angle of 100°x 100°with ideal flat light distribution even when the accessory diffuser is not attached. With the diffuser, light will soften and beam angle will increase to 110°x 110°
YS-01 SOLIS SPECS:
[Guide Number (ISO 100/m) (land)] 20
[Beam Angle] 100°x 100° (with diffuser 110°x110°)
[Batteries] 4xAA A: 6V Ni-MH: 4.8V
[Number of Flashes] A: 230 Ni-MH: 300
[Recycle time (full)] A: 2.5 sec. Ni-MH: 1.9 sec.
[Color temperature] 5600K
[Color temperature w/diffuser] 5250K
[Depth rating] 75m / 250ft
[Dimensions (WxHxD)] 75x111x129mm / 4x4.4x5.1inch
[Weight] : 441g / 14.7oz (w/o batteries) * Attached a fixing bolt to the Strobe.
[Underwater weight] : Approx.+60g / 0.35oz(w/ batteries)
[Others]
- Exposure control: DS-TTLII +4steps -5steps

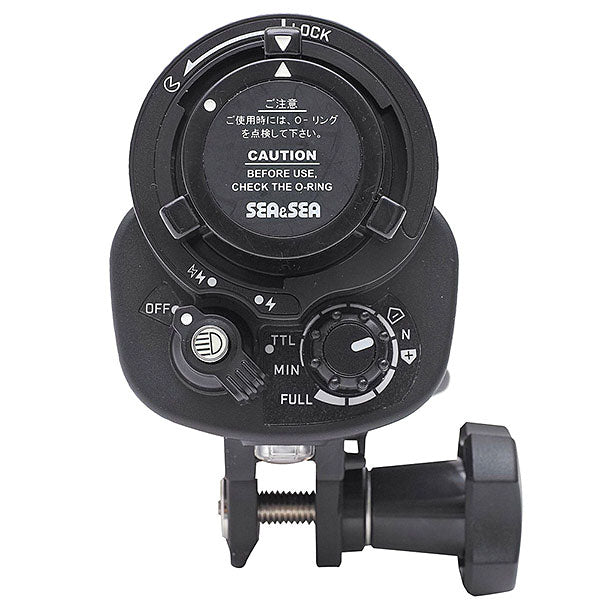

- Light level control dial (GN): 1 / 1.4 / 2 / 2.8 / 4 / 5.6 / 8 / 11 / 16 / 20 (10 steps)
- Pre-flash control: Equipped with pre-flash cancel mode
- DS-TTLII function
- Auto power OFF function
- Sync cord: Fiber-Optic Cable
- Over-pressure relief valve
- LED target light
*When the YS-01 is used with a camera with built-in flash in housing, use the Fiber-Optic Cable.
* When the YS-D1 is used with a non-SEA&SEA housing, a Strobe Mask Set may be required along with the Fiber-Optic Cable.
* Use of genuine SEA&SEA Fiber-Optic Cables is recommended. SEA&SEA strobes may not function properly if a third-party Fiber-Optic Cables are used (functions such as TTL auto exposure in particular).
CAUTION
Do not use non-recommended batteries (such as lithium primary batteries). Use of non-recommended batteries may cause battery leakage and overheating and may cause the strobe to rupture, which could result in personal injury.
