RED DIGITAL CINEMA DSMC2 REDVOLT EXPANDER

RED DIGITAL CINEMA DSMC2 REDVOLT EXPANDER

SKU # red.720-0040

$3,950.00

PRODUCT HIGHLIGHTS

  • For RED DSMC2 Cameras
  • Provides SDI & HDMI Output Connectors
  • XLR Mic/Line Inputs with Phantom Power
  • 3.5mm Headphone Output
  • Connectors for Genlock/Timecode/Sync-In
  • Ethernet, Serial & Trigger Connections
  • Power Distribution
  • Holds a REDVOLT Battery
  • Provides Battery Module Connector

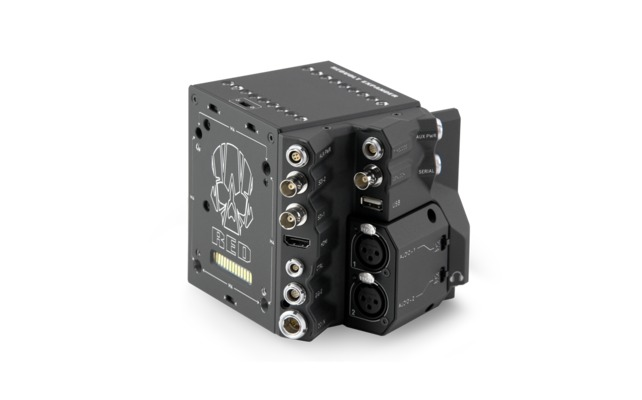

Designed for advanced configurations, the DSMC2® REDVOLT Expander mounts directly to the BRAIN® and offers an expansive array of I/O connectors and functionality for the DSMC2 camera system. The DSMC2 REDVOLT® Expander features ports for power in (DC IN), Genlock (BNC), Timecode (LEMO), GIG-E, and more. HDMI and two 3G-SDI (HD-SDI) outputs offer versatility for your video output needs, while an integrated USB power output is available to support wireless HDMI transmitters.

The DSMC2 REDVOLT Expander offers a removable audio module with two standard XLR connections for most professional audio needs. Each XLR input features a 3-position selector switch to designate the incoming audio signal type: Balanced Line Level, Balanced Mic Level, and Balanced Mic with +48V phantom power. Additionally, a 3.5mm line-level headphone jack lets you sample audio during takes and in playback mode.

The DSMC2 REDVOLT Expander also provides multiple auxiliary power outputs, enabling the use of peripheral camera accessories and more:
• A rear-facing 4-Pin 0B LEMO AUX PWR output supports Start/Stop Trigger IN, Tally OUT, and provides power out up to 1.5 Amps.
• A front-facing 2-Pin 0B LEMO AUX PWR port provides power output up to 3.0 Amps.
• A front-facing 7-Pin 0B LEMO SERIAL port provides power output up to 1.5 Amps. The SERIAL port is ideal for connecting to lens motor drivers.
• A rear-facing Timecode port offers 5V at 200 mA for powering external timecode devices.
• A rear-facing USB port offers 5V at 1.5 Amps for powering HDMI transmitters or small mobile devices.
• The two 3-Pin XLR audio ports in the audio module each offer +48V phantom power.

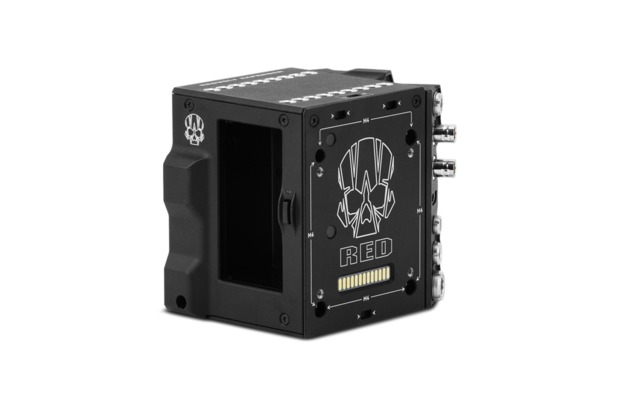

For hot-swap support when it matters most, the DSMC2 REDVOLT Expander also supports a single REDVOLT battery. Additional DSMC2-compatible batteries and power modules can be mounted for your changing power needs.

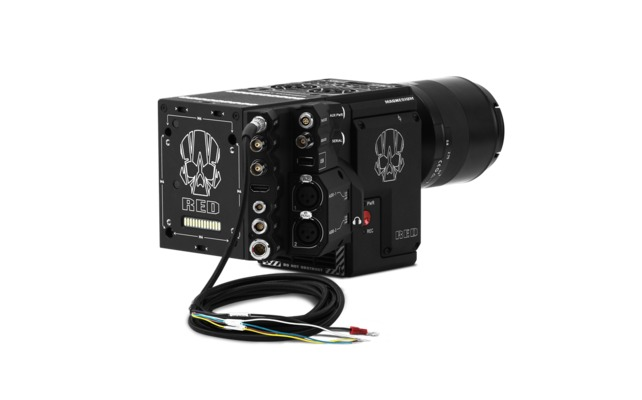

The DSMC2 REDVOLT Expander also features a selector switch that enables the BRAIN to automatically boot when power is provided via the DC IN connector on the expander. This feature allows you to use a connected DC input supply to turn the BRAIN on and off when the camera is mounted in remote or difficult to maneuver locations. This expander is the ideal solution for a variety of production environments, maximizing camera interface and functionality for the most demanding shoots.

NOTE: Only one (1) expander module can be used at a time.



TECH SPECS:

DIMENSIONS Height: 4.57 in. (116.0 mm)
Width: 5.14 in. (130.5 mm)
Depth: 3.63 in. (92.4 mm) (connected to BRAIN)
WEIGHT Approx. 2.20 lbs (997.9 g)
MATERIAL Magnesium
BRAIN MOUNTING 4x M4 captive mounting screws
ADDITIONAL MOUNTING 18x 1/4-20 mounting points
BRAIN CONNECTIONS Power delivery via Rear pogo connector (13-Pin)
Communication via Rear I/O connector (4×40 Pin)
CONNECTORS DC IN (6-Pin 1B LEMO socket)
HDMI 1.2 output (Type A socket), 60 Hz max frame rate
USB Power output (Type A socket), 1.5 A
3G-SDI output (75 Ω BNC), 60 Hz max frame rate
Genlock input (75 Ω BNC)
Gigabit Ethernet input/output (9-Pin 0B LEMO)
CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00B LEMO)
Stereo Headphone output (3.5 mm jack)
Timecode input/output (5-Pin 0B LEMO)
2x Balanced Audio inputs (3-Pin, full size XLRfemale)
Aux Power OUT / Trigger IN / Tally OUT (4-Pin 0B LEMO), 1.5 A
Aux Power Output (2-Pin 0B LEMO), 3.0 A
AUTO BOOT ON POWER 2-position slider switch
REAR BATTERY MODULE CONNECTION Power delivery via Rear pogo connector (13-Pin)
ON-BOARD BATTERY COMPATIBILITY Single REDVOLT
AUDIO 1 2 channel, uncompressed, 24-bit, 48 KHz
Input Formats: Balanced Line, Balanced Mic (w/o Phantom Power), Balanced Mic (w/ 48 V Phantom Power)
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
OPERATING HUMIDITY 0% to 85%, non-condensing
STORAGE HUMIDITY 0% to 85%, non-condensing
FIRMWARE REQUIREMENT Compatible with all DSMC2 firmware v6.2.55 or later
Tech specs reflect both current and projected information. Everything is subject to change.
1. These are the audio ports in the default audio module. Other ports may be available in the future.
