Description

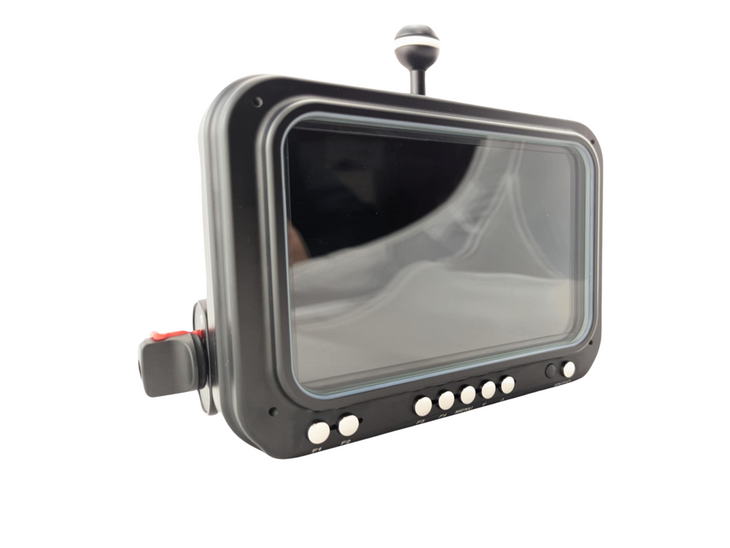

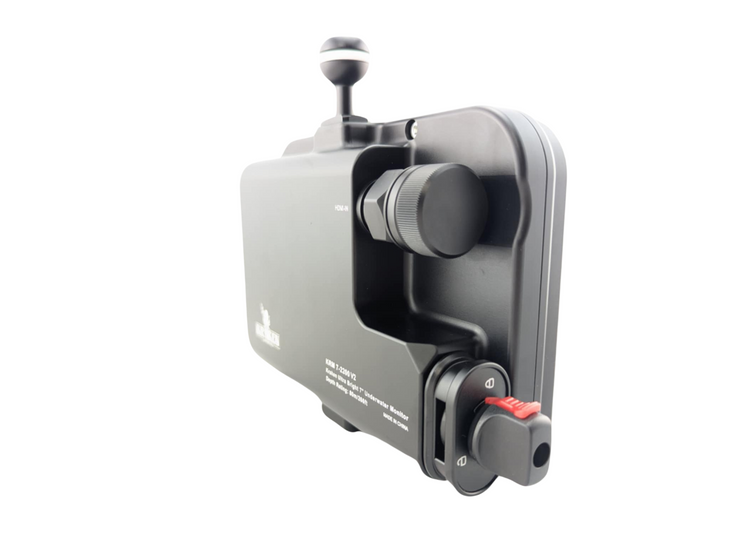

The KRM07 V3 is Kraken Sports' professional 7″ underwater monitor for housing rigs. Its 2200 nit IPS panel stays readable even in direct sunlight at the surface, and the larger 7″ screen makes it easier to confirm critical focus and check composition on complex wide-angle and macro setups. The monitor takes a 4K HDMI input with 4K pass-through output, runs on two 21700 batteries, and is rated to 80m.
Note: Set your camera’s HDMI output to 1080p. The monitor accepts 4K input but output must be 1080p for full functionality.
What’s New in V3
-
USB-A slot for LUTs — load LUTs onto the monitor from a USB drive
- Same 2200 nit IPS panel, same monitoring tools, same 4K HDMI pass-through
Monitoring Tools
-
Focus assist: Edge highlight in red, green, or blue — see critical focus without guessing
-
Zebra exposure: Overexposure warning overlaid on the image
-
False colour: Exposure visualisation across the tonal range
-
Waveform and histogram: Full tonal analysis tools
-
Anamorphic mode: De-squeeze for anamorphic lens shooting
-
Check field: Channel isolation options
-
Nine grid: Split view with zoom to full screen
-
Safe frames and centre marker: Framing guides for broadcast and cinematic formats
Key Specs
-
Screen: 7″ IPS LCD
-
Brightness: 2200 nit
-
Resolution: 3840×2160p
-
Input: 4K HDMI (3840×2160p, 4096×2160p)
-
Signal output: 4K HDMI pass-through
-
Depth rating: 80m / 266ft
-
Battery: 2× 21700 (USB-C PD charging)
-
Burn time: 140 minutes at 100% brightness
-
LUT loading: USB-A slot
-
Dimensions: 203mm × 147mm × 64.5mm
-
Weight: 1795g on land, 203g underwater
-
Mount: Ball mount included
In the Box
- Monitor with HDMI-IN bulkhead
- 2× 21700 battery
- USB-C PD charger and cable
- HDMI cable (60cm)

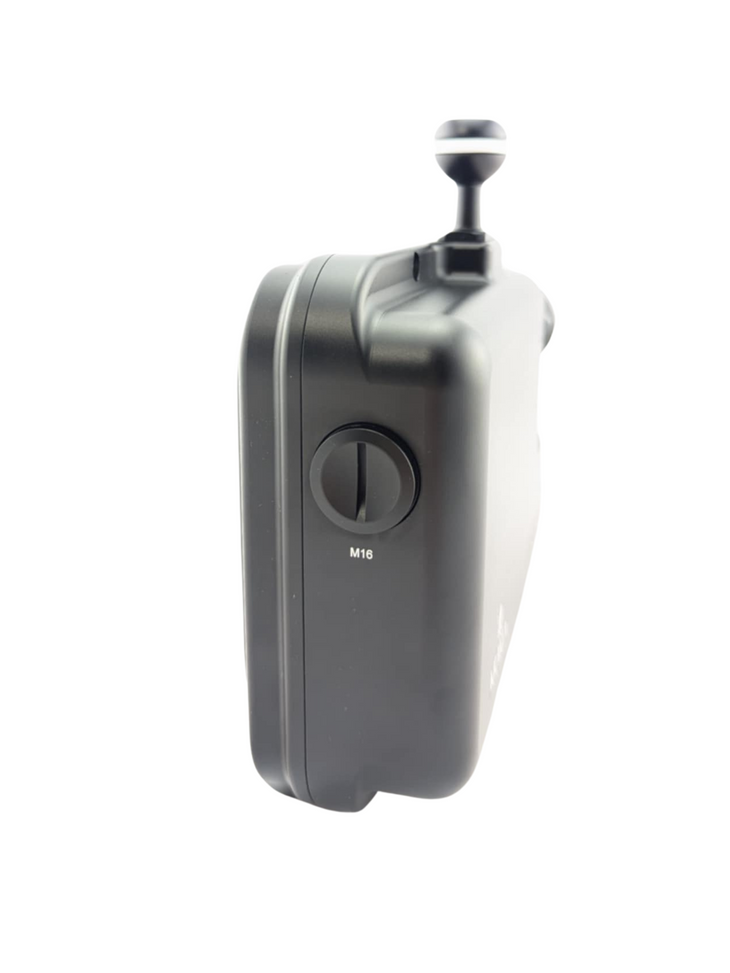

- HDMI bulkhead with M16 thread
- M16-M24 thread adapter
- Micro HDMI, Mini HDMI, and Standard HDMI plugs
- Ball mount
- Spare O-rings
