Ikelite WD-3 Wide Angle Conversion Dome

SKU # ike.6430.3

$300.00

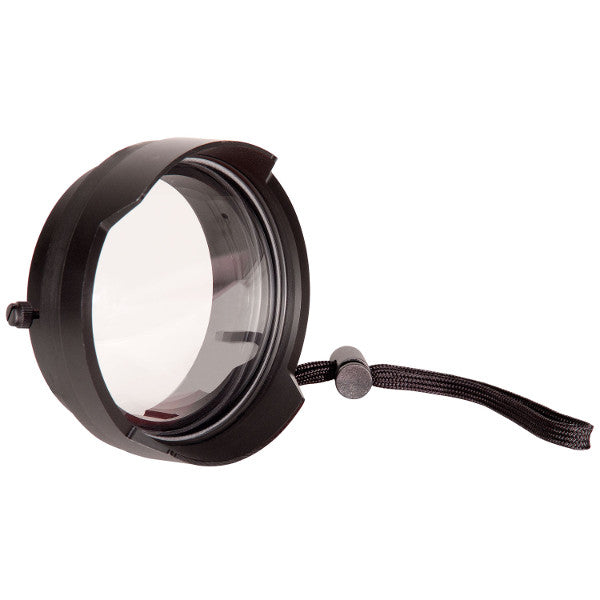

The WD-3 Wide Angle Dome provides a wider angle of coverage underwater without the distorted edges or vignetting (dark shadows in the corners of the image) that are typically present when using a standard wide angle wet lens.  At less than 6oz (168g), the WD-3 is also substantially lighter weight than the average wet lens and easier to use. The result is an image that is crisp and clear photo edge-to-edge.

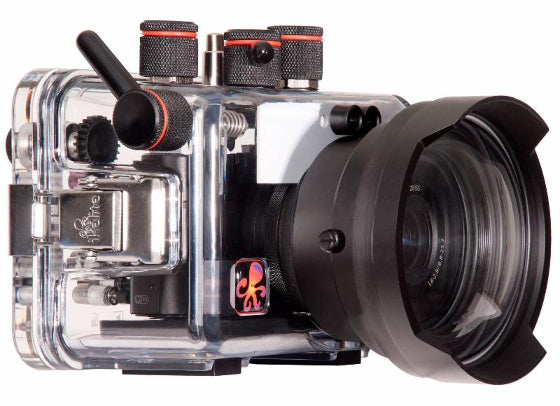

The WD-3 simply slides onto the standard port of the Ikelite housing— no modification to or replacement of the housing's original port is necessary. The WD-3 can be removed and replaced underwater so there is no limit to the camera's zoom or macro capabilities. Approximately 3/4 of the camera's zoom range can be used with the dome in place (varies by camera model).

The conversion dome features a 0.75x conversion factor to correct for the refractive magnification of a flat port underwater. The WD-3 Wide Angle Dome is compatible with any Ikelite housing featuring a 3.0-inch diameter lens port. To check compatibility with Ikelite housings, please refer to the housing instruction manual or webpage.

For 3.9 inch diameter Ikelite ports, use Ikelite WD-4.

  • Magnification 0.75x
  • 200 ft (60m) depth rating
  • Optical grade acrylic
  • Slightly positive buoyancy in fresh water
  • Weight 5.9 oz (168 g)
  • Dimensions 4 inches diameter x 1.7 inches length (101 x 43 mm)
