Ikelite 200DL

for Canon 6D Mark II

SKU # ike.71720

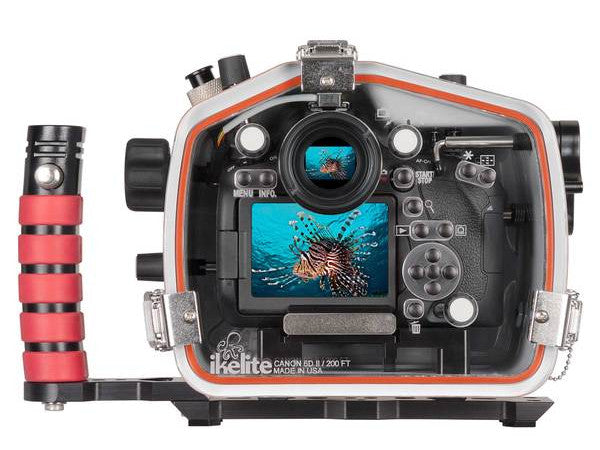

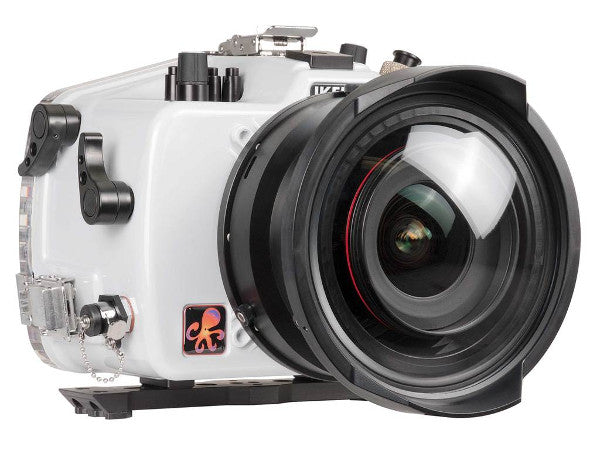

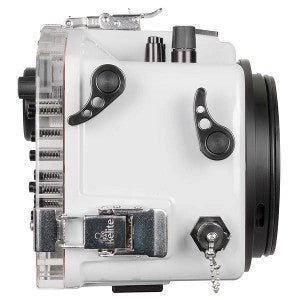

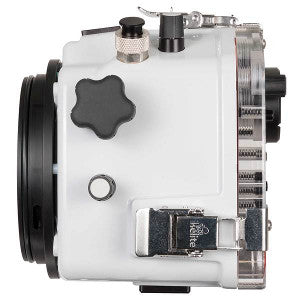

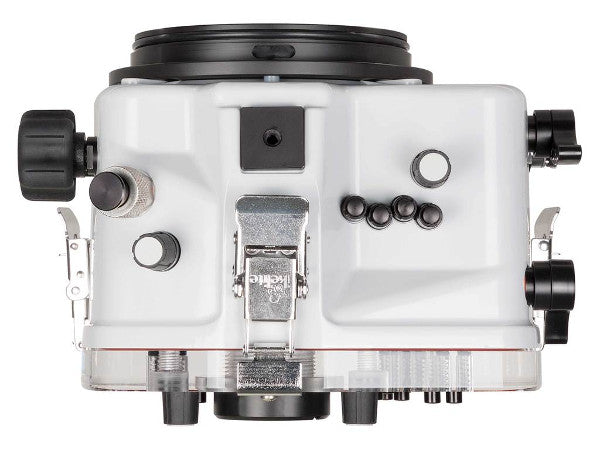

Ikelite 200DL Housing for Canon 6D Mark II

Required lens port, camera, and lens not included.  Shown for illustrative purposes only.  DL series lens port is required, not included.  Ikelite housings with Dry Lock (DL) port system are not compatible with legacy 4-lock (FL) ports.

  • Access to all important camera functions
  • Comfortable rubber grips
  • Glass optical viewfinder enhanced for underwater
  • Visible o-ring seals
  • Corrosion-proof solid body
  • Ports available for most popular lenses
  • Lens zoom gears included with housing

200ft (60m) depth rating
Made by divers in the USA

TTL Flash Exposure

The Ikelite 200 DL housing for Canon 6D Mark II as shipped supports manual flash control.

Ikelite DS strobes can be used in manual exposure mode when attached directly to the housing;  single strobe #4103.41 or dual strobe #4103.42 electrical synch cable.

SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using either a single (#4118.1) or dual (#4118.2) Ikelite electrical sync cord.  Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Vacuum System

A vacuum valve is included.  With the optional vacuum pump with gauge, the housing seal can be tested before diving to give you confidence that the system has been properly assembled and all o-rings are intact.

Reliable performance
A clear view of the camera and o-ring seals facilitates easy assembly and operation.  Heavy-duty polycarbonate construction is durable and corrosion-free to ensure performance in even demanding conditions.  Lens ports can be removed and replaced quickly with a simple positive locking system which provides visible assurance when the housing is assembled properly.

Controls All important camera functions are accessible.  Controls are not provided for: LCD illumination, depth of field preview, viewfinder diopter adjust, multi-function lock switch.
Width 234mm including controls
Height 180mm including controls
Depth 168mm including controls
Weight 2.2kg without tray & handles
Depth Rating 60 meter (200 feet)
Buoyancy near neutral in freshwater
Depth Rating 200ft (60m)
Built-in Flash No
Strobe Connection Ikelite digital TTL electrical bulkhead
Tray Mounting 1/4-20 thread with 3.5in spacing (76mm)
Main O-Ring 0132.61
Port O-Ring 0132.45
Spare Parts 9104.5 Electrical bulkhead cap

What's Included

  • Housing
  • Tray with left quick release handle
  • Port hole cover
  • Waterproof bulkhead cap
  • Zoom grear retainer
  • Silicone lubricant 1cc tube
  • Control & push button tip accessory package
  • 1 year manufacturer warranty
