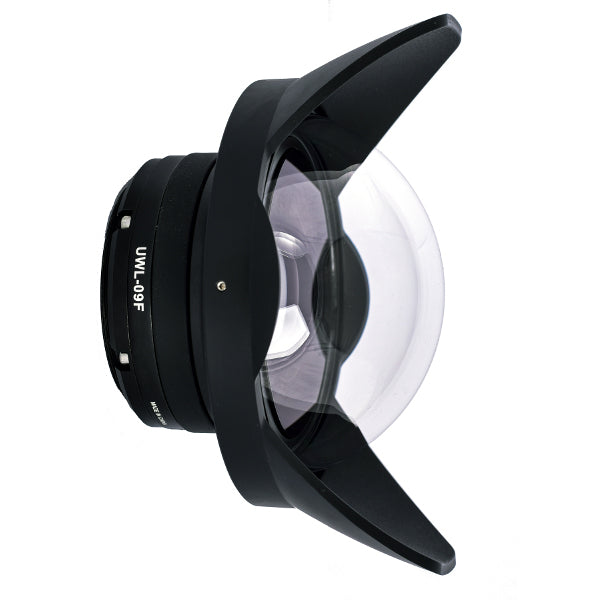

Fantasea UWL-09F Wide Angle Wet Mate Lens

Fantasea UWL-09F Wide Angle Wet Mate Lens

SKU # fse.5157


Fantasea UWL-09F Wide Angle Wet Mate Lens

  • 130 degree field of view when used with 28mm (equivalent) lens
  • Fits housings with 67mm threaded ports
  • Corrects underwater size distortion
  • Depth rated to 200'

The UWL-09F wet wide angle lens provides a wide field of view and a zero minimal focus distance, allowing to shoot wide angle close focus images that are super sharp corner-to-corner and great on the details.  It is perfect for a wide variety of compositions, including seascape, divers, ship wrecks and schools of fish, without moving further away from the subject, thereby still taking full advantage of water clarity and artificial light sources.

The lens mounts on the housing lens port and can be installed and removed during the course of the dive.  It can be mounted on 67mm threaded lens ports and other dimensions by using an adaptor.

UWL-09F Specifications

  • Description: Wide angle conversion lens
  • Bezel Material: Aluminum alloy with black hard coating
  • Lens Construction: 5 groups and 5 elements
  • Magnification: 0.45X
  • Field of View: 130 degrees when using a 28mm lens
  • Lens Coating: Hard coating on the Polycarbonate dome lens + Multi layer AR coating on all glass lenses
  • Thread: 67mm
  • Dimensions: 133.3 x 94.4 mm / 5.2 x 3.7 inch
  • Weight: 1033 g / 36.4 oz
  • Includes: Lens cover, lens carrying case and secure string
  • Depth Ratio: 60 meters / 200 feet

The lens features a 67mm thread mount, compatible with most housings available in the market today.  Perfect to be used with compact, mirrorless or SLR housings.  Two different adaptors are included with the lens, to ensure the best fit with most housings. The base of the mount is covered with a rubber ring, providing a firm grip of the lens during installation and removal.  Its narrow design allows using the lens with most lens holders, adaptors, bayonet mount converters, flip mounts and quick release adaptors.

Accessory Package
Lens comes with a secure loop installation kit and quick release secure line to ensure the lens is safely secured to the system even when removed from the housing lens port.  Non corrosive front and rear lens caps are included in the box.  A quality padded carrying case allows safe storage and transportation.
