CP.5119 Used Atomos Shinobi 5.2in 4K HDMI Monitor

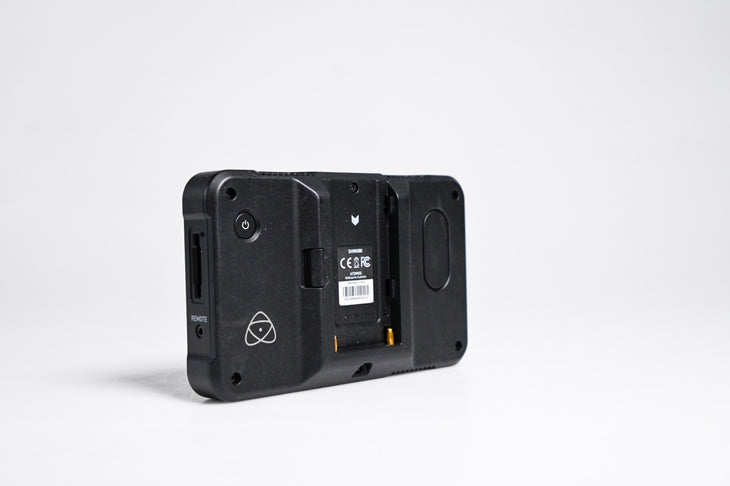

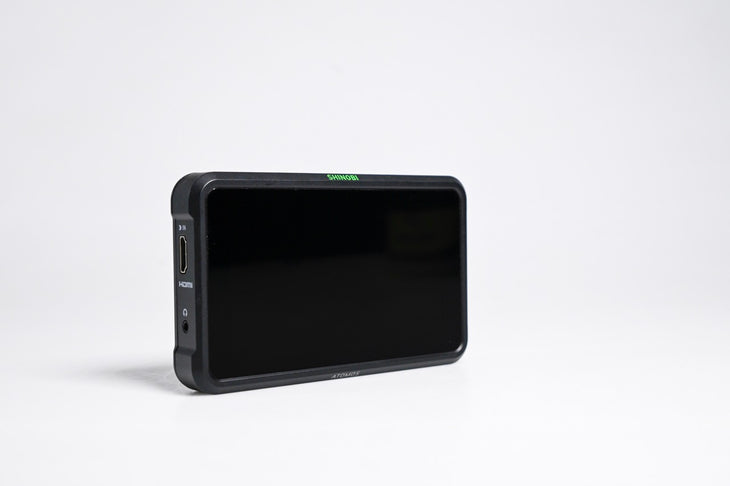

CP.5119 Used Atomos Shinobi 5.2in 4K HDMI Monitor

SKU # CP.5119

Regular Price: $299.00
Instant Savings: $45.00

$254.00

This is a used item that shows minor wear.

Includes

  • Monitor Only

Key Features

  • 1920 x 1080 Touchscreen Display
  • 10-Bit Exterior Viewable Monitor
  • 4K HDMI Input
  • 1000 cd/m² Brightness

The Shinobi 5.2in 4K HDMI Monitor is a 5.2in on-camera monitor that monitors DCI 4K, UHD 4K, and HD video input. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.

Built to withstand the rigors of production, the Shinobi features a lightweight plastic chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A 12V power supply is included with the unit.

AtomHDR

With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.

Supported Log Formats

  • ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600
  • Canon CLog / CLog 2 / CLog 3
  • Fuji F-Log
  • JVC JLog
  • Nikon N-Log
  • Sony SLog / SLog2 / SLog3
  • Panasonic Vlog
  • RED Log3G10 / RED LogFilm
  • PQ10k
  • HLG

HDR Monitoring

  • Sony SGamut / SGamut3 / SGamut3.cine
  • Canon Cinema / DCI P3 / DCI P3+
  • Panasonic V Gamut
  • Arri Alexa Wide Gamut
  • Rec709 / BT.2020
  • JVC
  • RED WideGamut / RED DragonColor / DragonColor2
  • RED Color2 / RED Color3 / RED Color4

4K DCI/UHD and HD Capabilities

Monitor 4K footage in DCI or UHD formats up to 29.97 fps and 1080p up to 59.94 fps.

Audio Monitoring

Input/output audio via HDMI and output audio using the 3.5mm headphone port for convenient audio monitoring.

5.2in Daylight Viewable Screen

The Shinobi features a 5.2in IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.

HDR Signal Management

Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Shinobi's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.

Anamorphic De-Squeeze

The Shinobi supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.

Atomos Shinobi Specs:

Display
Panel Type IPS-Type LCD
Display Size 5.2" / 13.2 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1000 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 427 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform, Zebra, Vectorscope
I/O
Video 1 x HDMI Type A (HDMI 2.0) Input
Embedded Audio HDMI: 2-Channel
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x Barrel Input
Other I/O None
Card Slot 1 x SD
Format Support
Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 29.97/25/24/23.98
UHD 4K: 29.97/25/24/23.98
1080p: 59.94/50/29.97/25/24/23.98
720p: 59.94/50
Power
DC Input Power 6.2 to 16.8 VDC
Battery Type 1 x L-Series
Power Consumption 4 W (Typical)
7 W (Maximum)
Mounting
Mounting 2 x 1/4in-20 Female
Environmental
Operating Temperature 104°F / 40°C (Recommended)
General
Material of Construction Polycarbonate
Dimensions (W x H x D) 5.94 x 3.6 x 1.24in / 151 x 91.5 x 31.5 mm
Weight 6.91 oz / 196 g
Packaging Info
Package Weight 1.55 lb
Box Dimensions (LxWxH) 7.8 x 5.7 x 1.49in
