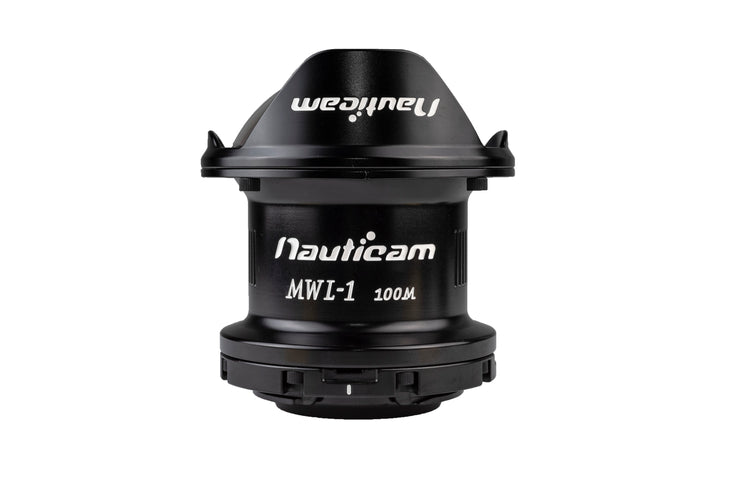

Nauticam Macro to Wide Angle Lens 1 (MWL-1)

Nauticam Macro to Wide Angle Lens 1 (MWL-1) ~150 deg. FOV with Full Frame 60mm Macro Lens

150 deg. FOV with Full Frame 60mm Macro Lens

SKU # 86201

$2,130.00

The Nauticam MWL-1 is a revolutionary concept and the latest addition to the Nauticam underwater corrective optic lineup which includes the WWL-1 and WACP wide angle conversions lenses as well as the SMC and CMC magnifiers. It is a wet-mounted ultra wide lens (meaning it can be attached and removed underwater) designed to be used with a 60mm full frame equivalent macro lens that results in an ultra-wide 150º field of view. With 7 lens elements in 5 groups, the MWL-1 is a technological marvel.  The MWL-1 can focus anywhere from the front element to infinity. Ultra wide angle and macro perspectives are now available on the same dive - even with full frame DSLR systems.


Technical Specifications

 Weight (Air/Water) 1.20kg / 0.58kg
Dimensions 108mm diameter x 120mm length
Depth Rating 100m
Mount Nauticam Bayonet or M67

Introducing Nauticam Macro to Wide Angle Lens 1 (MWL-1)

Macro to Wide Angle Lens 1 (MWL-1)

The MWL-1, similar to other Nauticam underwater optics is made from precision ground optical glass and features anti-reflective coating on both sides of the lens elements and is nitrogen purged during production.

Macro and Wide with one camera lens!

For many photographers, especially those moving up to an SLR or mirrorless system, there is trepidation at being locked in to either macro or wide angle on a dive.  With compact systems that featured wide zoom range lenses that, when paired with corrective optics, could allow for wide angle or macro on the same dive.  When moving to an interchangeable lens and port system you would previously have been committed to either wide angle or macro for a given dive.

Close Focus Wide Angle Impact

With the introduction of the MWL-1, not only can you switch between wide angle and macro on the same dive you can also capture unique close focus wide angle images of macro subjects. This technique works best when a macro subject can be placed very close to the lens where exaggerated perspective makes it pop out from an ordinary background.

The MWL-1 excels at smaller apertures and full-frame shooters will get optimal results at F16 or higher.

Scorpion fish with 60mm macro lens

Scorpionfish with 60mm macro lens and MWL-1

Multiple Mounting Options

With two mounting options, Nauticam's bayonet system or one of two available flip mounts, the MWL-1 can be quickly engaged or disengaged or even swapped for an CMC-1, going from wide angle to super macro in seconds.

MWL-1 with Bayonet Mount System



MWL-1 and CMC-1 on Dual Flip Mount

Travel Friendly

The compact size, ease of use, focus range and incredible field of view make the MWL-1 the perfect travel friendly wide-angle option.  When heading to a primarily macro destination, bringing the MWL-1 along ensures you'll never miss that spontaneous wide angle shot and presents even greater creative options for close focus wide angle images of macro subjects.

The MWL-1 is perfectly sized for travel

Resources

resources

User Manual Download

What's In The Box:

  • MWL-1 Lens
  • M67 to Bayonet Mount Converter (83213)
  • Neoprene Port Cover
  • Rear Lens Cap for WWL-1/MWL-1 (83221)
  • Bayonet Mounting Ring for MWL-1
  • Carrying Bag
  • Cleaning Cloth

Recommended Accessories:

  • M67 Flip Holder for MWL-1 (86221)
  • Double Flip Holder for MWL-1 (86222)

Recommended Bayonet Lens Holders for Strobe Arms:

  • Bayonet Mount Lens Holder for Arms (83222)
  • Bayonet Mount Double Lens Holder for Arms (83223)
  • Bayonet Mount Lens Holder for Inon Float Arms (83227)
  • Single Bayonet Lens Holder for 70mm Nauticam Carbon Fiber Aluminum Float Arms (72231)
  • Double Bayonet Lens Holder for 70mm Nauticam Carbon Fiber Aluminum Float Arms (72232)
  • Single Bayonet Lens Holder for 90mm Nauticam Carbon Fiber Aluminum Float Arms (72241)
  • Double Bayonet Lens Holder for 90mm Nauticam Carbon Fiber Aluminum Float Arms (72242)
